Genie AWP Super Series mast lifts: AWP-20S to AWP-40S
One-person maintenance at height inside buildings, where the lift has to pass through a doorway and travel in the back of a van. Genie's AWP Super Series, 8.1 to 14.3 m working height.
Genie
The AWP at a glance
The Genie AWP is a push-around mast lift. One person rolls it into place, sets the outriggers and rises on a vertical mast. It is 0.74 m wide, rolls through a standard doorway and loads into a van, and it is built for light construction and maintenance work.
- Newspecifications listed to order
- £50a week to hire, from (ex VAT)
- 8.1 - 14.3 m working heightrated capacity across the range
Specification
Five heights
- AWP-20S: 8.10 m working height.
- AWP-25S: 9.50 m.
- AWP-30S: 11.0 m.
- AWP-36S: 13.10 m.

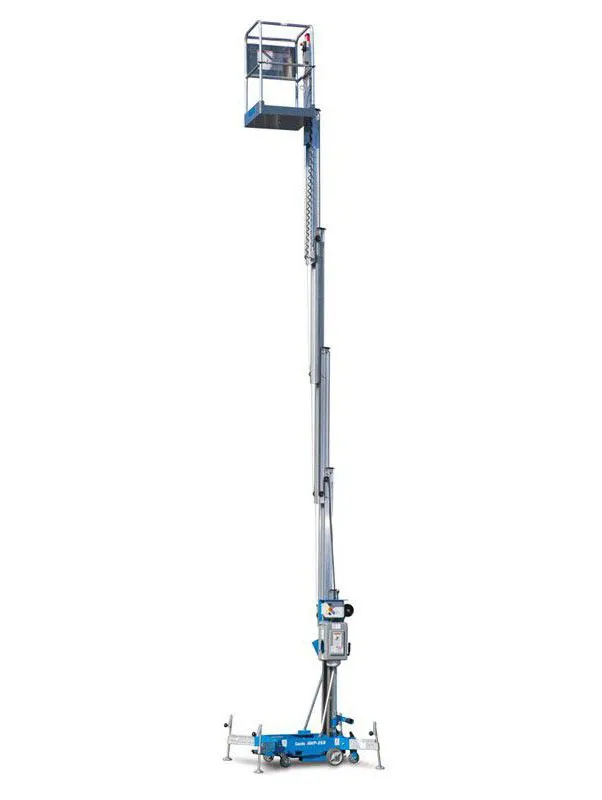

- AWP-40S: 14.30 m, with a tilt-back frame for getting through doorways.
Every AWP carries one person. Capacity is 159 kg, or 136 kg on the AWP-40S. A Super-Straddle option lets the base stand over fixed seating.
Specifications
| Machine type | Push-around vertical mast lift, one person |
|---|---|
| Models | AWP-20S, AWP-25S, AWP-30S, AWP-36S, AWP-40S |
| Working height | 8.10 / 9.50 / 11.0 / 13.10 / 14.30 m |
| Platform height | 6.10 / 7.50 / 9.00 / 11.10 / 12.30 m |
| Platform capacity | 159 kg (AWP-20S to 36S); 136 kg (AWP-40S) |
| Power | AC mains 110 V or 220 V; or 12 V DC battery |
| Width | 0.74 m |
| Stowed height | 1.98 m (20S - 30S); 2.78 m (36S, 40S) |
| Wind rating | 12.5 m/s with outdoor outriggers; indoor use only with indoor outriggers |
Specifications are for a new machine. Each used machine in stock is listed below with its own.
New to order
New Genie AWP built to order
New specifications ordered from the factory, built to the capacity, mast and options you choose. New machinery lead times are as low as 2-3 weeks.
| Machine | Working height | Hire or price | Ask |
|---|---|---|---|
 New2026 Genie AWP-40S | 14290 mm | £60 a week | Ask about this |
| New2026 Genie AWP-20S | 8120 mm | £50 a week | Ask about this |
Mains or battery
AC models plug into 110 V or 220 V mains. DC models run from a 12 V battery, so they work where there is no socket, and weigh about 40 kg more.
Indoor or outdoor outriggers
With outdoor outriggers an AWP is rated for wind speeds to 12.5 m/s. With indoor outriggers it is for indoor use only. The outdoor set needs more floor: 3.9 by 3.7 m on the AWP-40S, against 2.3 by 2.0 m indoors. Check which outriggers come with the machine.
Checking a used AWP
Our engineers inspect every used AWP before sale. Check the sequencing cables and pulleys, lifting chains and idler wheels, the mast columns, outriggers and levelling jacks, castors and brakes, battery terminals and connections, and the hydraulic power unit and hoses.
Supply, hire and training
New AWPs come from us as an authorised Genie dealer, and our engineers look after them in service, thorough examinations included. Mast lifts are available on hire and lease; ask us which models are available now. We run MEWP training at our centres and on customers’ sites, including scissor lift and cherry picker courses.
Tell us the load, the lift height and the site, and we will say which AWP fits, new, used or on hire.
