Warehouses and logistics centres moving 2.5 to 3.5 tonne loads indoors all day on a 48-volt truck. Hyundai's B-9U, 2.5 to 3.5 tonnes.
Hyundai
The B-9U is Hyundai’s 48-volt, four-wheel electric counterbalance in the 2.5 to 3.5 tonne class, built for intensive indoor handling in warehouses and logistics centres. It took over from the 25B-9, running longer on a charge, and two separately controlled 7 kW drive motors share the work at the front.
Specification
Travel speed is 17 km/h laden and 18 km/h empty, the standard mast lifts 3,300 mm and the tallest go beyond 7 metres. Continental SC18 solid tyres are standard.
| Truck type | Four-wheel 48 V electric counterbalance forklift, dual AC drive |
|---|---|
| Models | 25B-9U, 30B-9U, 35B-9U |
| Rated capacity | 2,500 / 3,000 / 3,500 kg at 500 mm load centre |
| Battery | 48 V lead-acid; 51.5 V / 564 Ah lithium-ion option |
| Motors | 2 x 7.0 kW drive; 17 kW lift |
| Standard lift height | 3,300 mm |
| Travel speed, laden / unladen | 17 / 18 km/h |
| Turning radius | 1,940 / 2,150 / 2,205 mm |
| Protection | IP43 motor; IP65 controller |
Specifications are for a new machine. Each used machine in stock is listed below with its own.
In stock
Actual machines in our yard, used and new, each with its own photos and specification. Open one for the details.
| Machine | Capacity | Lift height | Mast | Hire or price | Ask |
|---|---|---|---|---|---|
 HYUNDAI 30B-9U | 3,000 kg | 6,500 mm | Triple | £95 a week | Ask about this |
 HYUNDAI 35B-9U | 3,500 kg | – | – | £95 a week | Ask about this |
 HYUNDAI 30B-9U | 3,000 kg | 6,010 mm | Triple | £95 a week | Ask about this |
 HYUNDAI 30B-9U | 3,000 kg | 6,500 mm | Triple | Call for a price | Ask about this |
New to order
New specifications ordered from the factory, built to the capacity, mast and options you choose. New machinery lead times are as low as 2-3 weeks.
| Machine | Capacity | Lift height | Mast | Hire or price | Ask |
|---|---|---|---|---|---|
 New2026 HYUNDAI 25B-9U | 2500 kg | 6005 mm | Triplex Full Free Lift | £120 a week | Ask about this |
 New2026 HYUNDAI 30B-9U | 3000 kg | 3005 mm | 2-Stage Limited Free Lift | £130 a week | Ask about this |
 New2026 HYUNDAI 35B-9U | 3500 kg | 7915 mm | 4-Stage Full Freelift | £140 a week | Ask about this |
 New2026 HYUNDAI 25B-9U | 2500 kg | 7015 mm | 4-Stage Full Freelift | £120 a week | Ask about this |
 New2026 HYUNDAI 35B-9U | 3500 kg | 3276 mm | 2-Stage Full Free Lift | £140 a week | Ask about this |
 New2026 HYUNDAI 30B-9U | 3000 kg | 3276 mm | 2-Stage Full Free Lift | £130 a week | Ask about this |
 New2026 HYUNDAI 35B-9U | 3500 kg | 6005 mm | Triplex Full Free Lift | £140 a week | Ask about this |
 New2026 HYUNDAI 25B-9U | 2500 kg | 3276 mm | 2-Stage Full Free Lift | £120 a week | Ask about this |
 New2026 HYUNDAI 30B-9U | 3000 kg | 6005 mm | Triplex Full Free Lift | £130 a week | Ask about this |
| New2026 HYUNDAI 25B-9U | 2500 kg | 3005 mm | 2-Stage Limited Free Lift | £120 a week | Ask about this |
 New2026 HYUNDAI 35B-9U | 3500 kg | 3005 mm | 2-Stage Limited Free Lift | £140 a week | Ask about this |
 New2026 HYUNDAI 30B-9U | 3000 kg | 7015 mm | 4-Stage Full Freelift | £130 a week | Ask about this |
The B-9U runs on 48-volt lead-acid, or on a 51.5 V, 564 Ah lithium-ion pack rated for more than 4,000 cycles, with no water to top up.
A 4.3-inch display runs in 11 languages and handles set-up and on-board diagnosis, showing battery discharge, low brake oil, errors and high temperature, with error codes on screen. The motor is sealed to IP43 and the controller to IP65.
Switch on and read the display: any error code or warning lamp tells you where to look. Check the battery type and its cables, slide the battery out to see the cells, and look at the lift chains and the heels of the forks. Our engineers inspect each used B-9U before sale.
New B-9Us are supplied by us as Hyundai’s exclusive dealer and distributor, with lead-acid or lithium-ion. 48-volt electric forklifts are available on hire and lease; ask us which models are available now. We run counterbalance forklift training at our centres and on customers’ sites.
Tell us the load, the lift height and the site, and we will say which B-9U fits, new, used or on hire.

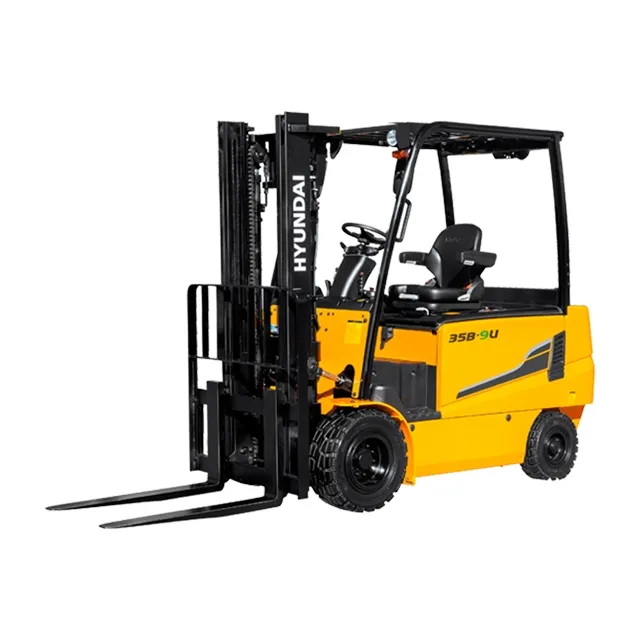

HYUNDAI 35B-9U
This 2019 Hyundai 35B-9U is a used electric forklift. It is rated for 3,500 kg. It runs on a 48 V battery. It is supplied with a current thorough examination certificate.
| Stock reference | A10542 |
|---|---|
| Condition | Used |
| Year of manufacture | 2019 |
| Arriving | 31 Dec 2026 |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 3,500 kg |
| Battery | 48 V |
HYUNDAI 30B-9U
This 2021 Hyundai 30B-9U is a used electric forklift. It is rated for 3,000 kg and lifts to 6,500 mm. It has a triple mast, a closed height of 2,855 mm, 2,310 mm of free lift, integral sideshift and 1,200 mm forks. It runs on a 48 V, 720 Ah battery. It is supplied with a current thorough examination certificate.
| Stock reference | A9504 |
|---|---|
| Condition | Used |
| Year of manufacture | 2021 |
| Arriving | 5 Nov 2026 |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 3,000 kg |
| Lift height | 6,500 mm |
| Closed height | 2,855 mm |
| Free lift | 2,310 mm |
| Mast | Triple |
| Fork length | 1,200 mm |
| Sideshift | Integral |
| Battery | 48 V, 720 Ah |
HYUNDAI 30B-9U
This 2019 Hyundai 30B-9U is a used electric forklift. It is rated for 3,000 kg and lifts to 6,010 mm. It has a triple mast, a closed height of 2,665 mm and 2,110 mm of free lift. It runs on a 48 V, 900 Ah battery. It is supplied with a current thorough examination certificate.
| Stock reference | A8827 |
|---|---|
| Condition | Used |
| Year of manufacture | 2019 |
| Arriving | 24 Nov 2026 |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 3,000 kg |
| Lift height | 6,010 mm |
| Closed height | 2,665 mm |
| Free lift | 2,110 mm |
| Mast | Triple |
| Battery | 48 V, 900 Ah |

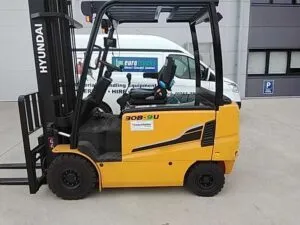

HYUNDAI 30B-9U
This 2021 Hyundai 30B-9U is a used electric forklift. It is rated for 3,000 kg and lifts to 6,500 mm. It has a triple mast, integral sideshift and 1,200 mm forks. It runs on a 720 Ah battery. It is supplied with a current thorough examination certificate.
| Stock reference | A9505 |
|---|---|
| Condition | Used |
| Year of manufacture | 2021 |
| Arriving | 5 Nov 2026 |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 3,000 kg |
| Lift height | 6,500 mm |
| Mast | Triple |
| Fork length | 1,200 mm |
| Sideshift | Integral |
| Battery | 720 Ah |
2026 HYUNDAI 30B-9U
This new Hyundai 30B-9U is an electric forklift, built to order in this specification. It is rated for 3,000 kg and lifts to 3,276 mm. It has a 2-stage full free lift mast, a closed height of 2,162 mm and 1,050 mm forks.
| Stock reference | Z0371 |
|---|---|
| Condition | New, built to order |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 3,000 kg |
| Lift height | 3,276 mm |
| Closed height | 2,162 mm |
| Mast | 2-Stage Full Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 35B-9U
This new Hyundai 35B-9U is an electric forklift, built to order in this specification. It is rated for 3,500 kg and lifts to 7,915 mm. It has a 4-stage full freelift mast, a closed height of 2,736 mm and 1,050 mm forks.
| Stock reference | Z0138 |
|---|---|
| Condition | New, built to order |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 3,500 kg |
| Lift height | 7,915 mm |
| Closed height | 2,736 mm |
| Mast | 4-Stage Full Freelift |
| Fork length | 1,050 mm |
2026 HYUNDAI 25B-9U
This new Hyundai 25B-9U is an electric forklift, built to order in this specification. It is rated for 2,500 kg and lifts to 7,015 mm. It has a 4-stage full freelift mast, a closed height of 2,447 mm and 1,050 mm forks.
| Stock reference | Z0136 |
|---|---|
| Condition | New, built to order |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 2,500 kg |
| Lift height | 7,015 mm |
| Closed height | 2,447 mm |
| Mast | 4-Stage Full Freelift |
| Fork length | 1,050 mm |
2026 HYUNDAI 35B-9U
This new Hyundai 35B-9U is an electric forklift, built to order in this specification. It is rated for 3,500 kg and lifts to 3,276 mm. It has a 2-stage full free lift mast, a closed height of 2,232 mm and 1,050 mm forks.
| Stock reference | Z0363 |
|---|---|
| Condition | New, built to order |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 3,500 kg |
| Lift height | 3,276 mm |
| Closed height | 2,232 mm |
| Mast | 2-Stage Full Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 25B-9U
This new Hyundai 25B-9U is an electric forklift, built to order in this specification. It is rated for 2,500 kg and lifts to 6,005 mm. It has a triplex full free lift mast, a closed height of 2,662 mm and 1,050 mm forks.
| Stock reference | Z0294 |
|---|---|
| Condition | New, built to order |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 2,500 kg |
| Lift height | 6,005 mm |
| Closed height | 2,662 mm |
| Mast | Triplex Full Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 30B-9U
This new Hyundai 30B-9U is an electric forklift, built to order in this specification. It is rated for 3,000 kg and lifts to 3,005 mm. It has a 2-stage limited free lift mast, a closed height of 2,012 mm, 115 mm of free lift and 1,050 mm forks.
| Stock reference | Z0427 |
|---|---|
| Condition | New, built to order |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 3,000 kg |
| Lift height | 3,005 mm |
| Closed height | 2,012 mm |
| Free lift | 115 mm |
| Mast | 2-Stage Limited Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 35B-9U
This new Hyundai 35B-9U is an electric forklift, built to order in this specification. It is rated for 3,500 kg and lifts to 3,005 mm. It has a 2-stage limited free lift mast, a closed height of 2,082 mm, 115 mm of free lift and 1,050 mm forks.
| Stock reference | Z0411 |
|---|---|
| Condition | New, built to order |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 3,500 kg |
| Lift height | 3,005 mm |
| Closed height | 2,082 mm |
| Free lift | 115 mm |
| Mast | 2-Stage Limited Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 30B-9U
This new Hyundai 30B-9U is an electric forklift, built to order in this specification. It is rated for 3,000 kg and lifts to 7,015 mm. It has a 4-stage full freelift mast, a closed height of 2,447 mm and 1,050 mm forks.
| Stock reference | Z0137 |
|---|---|
| Condition | New, built to order |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 3,000 kg |
| Lift height | 7,015 mm |
| Closed height | 2,447 mm |
| Mast | 4-Stage Full Freelift |
| Fork length | 1,050 mm |
2026 HYUNDAI 30B-9U
This new Hyundai 30B-9U is an electric forklift, built to order in this specification. It is rated for 3,000 kg and lifts to 6,005 mm. It has a triplex full free lift mast, a closed height of 2,662 mm and 1,050 mm forks.
| Stock reference | Z0295 |
|---|---|
| Condition | New, built to order |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 3,000 kg |
| Lift height | 6,005 mm |
| Closed height | 2,662 mm |
| Mast | Triplex Full Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 25B-9U
This new Hyundai 25B-9U is an electric forklift, built to order in this specification. It is rated for 2,500 kg and lifts to 3,005 mm. It has a 2-stage limited free lift mast, a closed height of 2,012 mm, 115 mm of free lift and 1,050 mm forks.
| Stock reference | Z0426 |
|---|---|
| Condition | New, built to order |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 2,500 kg |
| Lift height | 3,005 mm |
| Closed height | 2,012 mm |
| Free lift | 115 mm |
| Mast | 2-Stage Limited Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 25B-9U
This new Hyundai 25B-9U is an electric forklift, built to order in this specification. It is rated for 2,500 kg and lifts to 3,276 mm. It has a 2-stage full free lift mast, a closed height of 2,162 mm and 1,050 mm forks.
| Stock reference | Z0370 |
|---|---|
| Condition | New, built to order |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 2,500 kg |
| Lift height | 3,276 mm |
| Closed height | 2,162 mm |
| Mast | 2-Stage Full Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 35B-9U
This new Hyundai 35B-9U is an electric forklift, built to order in this specification. It is rated for 3,500 kg and lifts to 6,005 mm. It has a triplex full free lift mast, a closed height of 2,732 mm and 1,050 mm forks.
| Stock reference | Z0290 |
|---|---|
| Condition | New, built to order |
| Machine type | Electric Forklifts |
| Power | Electric |
| Rated capacity | 3,500 kg |
| Lift height | 6,005 mm |
| Closed height | 2,732 mm |
| Mast | Triplex Full Free Lift |
| Fork length | 1,050 mm |
