Hyundai BH-9 80-volt electric forklifts: 22BH-9 to 35BH-9
Busy multi-shift sites handling 2.2 to 3.5 tonne loads, where an 80-volt truck's extra power and runtime pay back. Hyundai's BH-9, 2.2 to 3.5 tonnes.
Hyundai
The BH-9 at a glance
The BH-9 is Hyundai’s 80-volt four-wheel electric counterbalance for 2,500 to 3,500 kg, and an earlier 2,200 kg model, the 22BH-9. Two AC drive motors of 8 kW each and a 19.7 kW lift motor drive it at 18 km/h laden and 19 km/h empty. It works in logistics, food and drink, manufacturing, timber and automotive plants.
- Usedmachines in stock now
- Newspecifications listed to order
- £105a week to hire, from (ex VAT)
- 2.2 - 3.5 trated capacity across the range
Specification
The models
- 25BH-9, 30BH-9 and 35BH-9: rated 2,500, 3,000 and 3,500 kg (500 mm load centre), turning in 1,999, 2,127 and 2,233 mm.
- 22BH-9: the earlier 2,200 kg model, turning in 1,895 mm.
The standard mast lifts 3,305 mm, and the tallest masts go beyond 7 metres. The trucks run on superelastic tyres.
Specifications
| Truck type | Four-wheel 80 V electric counterbalance forklift, dual AC drive |
|---|---|
| Models | 25BH-9, 30BH-9, 35BH-9; earlier 22BH-9 |
| Rated capacity | 2,200 / 2,500 / 3,000 / 3,500 kg at 500 mm load centre |
| Battery | 80 V lead-acid; lithium-ion option on the later model |
| Motors | 2 x 8.0 kW drive; 19.7 kW lift |
| Standard lift height | 3,305 mm |
| Travel speed, laden / unladen | 18 / 19 km/h |
| Turning radius | 1,999 / 2,127 / 2,233 mm (25 / 30 / 35BH-9); 1,895 mm (22BH-9) |
Specifications are for a new machine. Each used machine in stock is listed below with its own.
In stock
BH-9 in stock now
New specifications to order and used machines. Each used machine is one specific truck with its own year, mast and battery; open one for its photos and full specification.
Compare the used machine side by side
| Machine | Year | Capacity | Lift height | Mast | Power | Hire from |
|---|---|---|---|---|---|---|

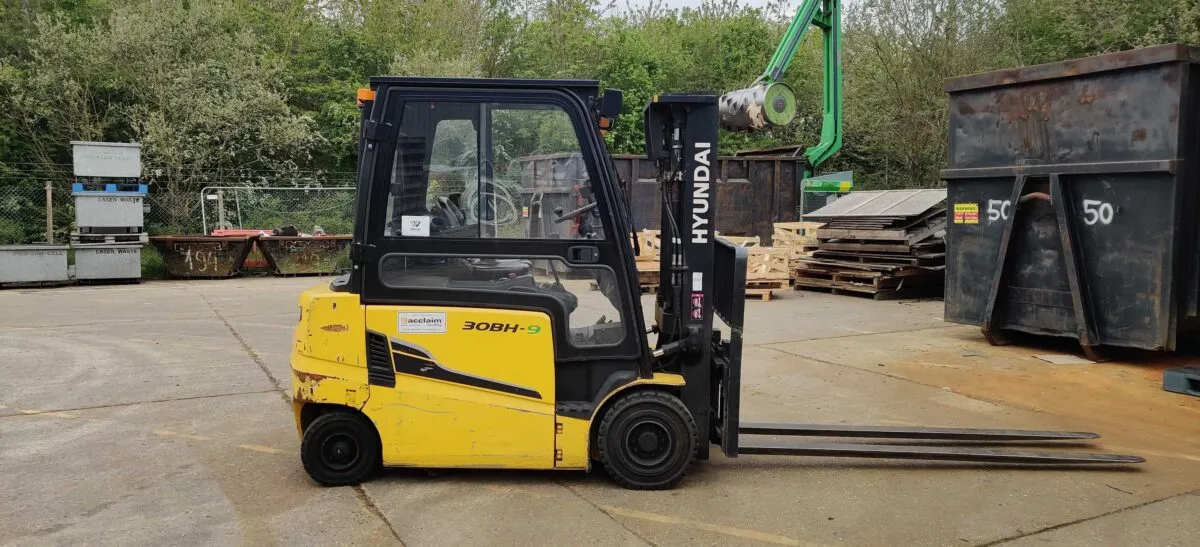

 Used 30BH-9 A8446 | 2017 | 3,000 kg | 3,300 mm | Telescopic | Electric 80 V | £105/wk |
Compare the new specifications side by side
These are the configurations listed for order or hire new. They differ by capacity, mast and lift height; the full build is confirmed at quotation.
| Machine | Year | Capacity | Lift height | Mast | Power | Hire from |
|---|---|---|---|---|---|---|
| New 22BH-9 Z0428 | New | 2,200 kg | 3,005 mm | 2-Stage Limited Free Lift | Electric | £120/wk |
| New 22BH-9 Z0372 | New | 2,200 kg | 3,276 mm | 2-Stage Full Free Lift | Electric | £120/wk |
| New 22BH-9 Z0348 | New | 2,200 kg | 5,005 mm | Triplex Full Free Lift | Electric | £120/wk |
| New 22BH-9 Z0139 | New | 2,200 kg | 7,915 mm | 4-Stage Full Freelift | Electric | £120/wk |
| New 25BH-9 Z0429 | New | 2,500 kg | 3,005 mm | 2-Stage Limited Free Lift | Electric | £120/wk |
| New 25BH-9 Z0373 | New | 2,500 kg | 3,276 mm | 2-Stage Full Free Lift | Electric | £120/wk |
| New 25BH-9 Z0349 | New | 2,500 kg | 5,005 mm | Triplex Full Free Lift | Electric | £120/wk |
| New 25BH-9 Z0140 | New | 2,500 kg | 7,915 mm | 4-Stage Full Freelift | Electric | £120/wk |
| New 30BH-9 Z0430 | New | 3,000 kg | 3,005 mm | 2-Stage Limited Free Lift | Electric | £130/wk |
| New 30BH-9 Z0374 | New | 3,000 kg | 3,276 mm | 2-Stage Full Free Lift | Electric | £130/wk |
| New 30BH-9 Z0350 | New | 3,000 kg | 5,005 mm | Triplex Full Free Lift | Electric | £130/wk |
| New 30BH-9 Z0141 | New | 3,000 kg | 7,915 mm | 4-Stage Full Freelift | Electric | £130/wk |
| New 35BH-9 Z0402 | New | 3,500 kg | 3,005 mm | 2-Stage Limited Free Lift | Electric | £140/wk |
| New 35BH-9 Z0352 | New | 3,500 kg | 3,276 mm | 2-Stage Full Free Lift | Electric | £140/wk |
| New 35BH-9 Z0336 | New | 3,500 kg | 5,005 mm | Triplex Full Free Lift | Electric | £140/wk |
| New 35BH-9 Z0142 | New | 3,500 kg | 7,915 mm | 4-Stage Full Freelift | Electric | £140/wk |
Two generations
The later BH-9 has a 5-inch colour display, uses less energy, lifts faster and runs its hydraulics more quietly, and it can take a lithium-ion battery. Earlier trucks have a 3.5-inch display and halogen headlights. Both are 80-volt, dual-drive trucks with side battery removal, and factory telematics can be fitted to the later model.
Buying a used BH-9
The display shows the hour meter, and a sensor on the brake oil reservoir warns of a low level, so check both first. Slide the battery out to look at the cells and connectors, and check the mast chains and forks. Our engineers inspect every used BH-9 before it goes on sale.
Supply, hire and training
As Hyundai’s exclusive dealer and distributor we supply the BH-9 new with lead-acid or lithium-ion and the mast your racking needs. 80-volt electric forklifts are available on hire and lease; ask us which models are available now. We run counterbalance forklift training at our centres and on customers’ sites.
Tell us the load, the lift height and the site, and we will say which BH-9 fits, new, used or on hire.
