Hyundai D-9 diesel forklifts, 2.5 to 8 tonnes: 25D-9 to 80D-9
Yards, ramps and outdoor work where a proven diesel truck is wanted, from 2.5 tonne pallets to 8 tonne loads. Hyundai's D-9 diesels, 2.5 to 8 tonnes.
Hyundai
The D-9 at a glance
The D-9 is the generation of Hyundai diesel counterbalance trucks that came before the Stage V D-9V. They cover 2,500 to 8,000 kg in three sizes, all with powershift transmissions, and are built for hard indoor and outdoor work, ramps and repetitive lifting.
- Usedmachines in stock now
- Newspecifications listed to order
- £95a week to hire, from (ex VAT)
- 2.5 - 8.0 trated capacity across the range
Specification
Three sizes
- 25D-9, 30D-9 and 33D-9: 2,500, 3,000 and 3,300 kg at a 500 mm load centre. A 3.3 litre Kubota engine of 50 kW meets Stage IIIB without a particulate filter, so there is no filter regeneration to manage. Turning radius is 2,342 to 2,463 mm.

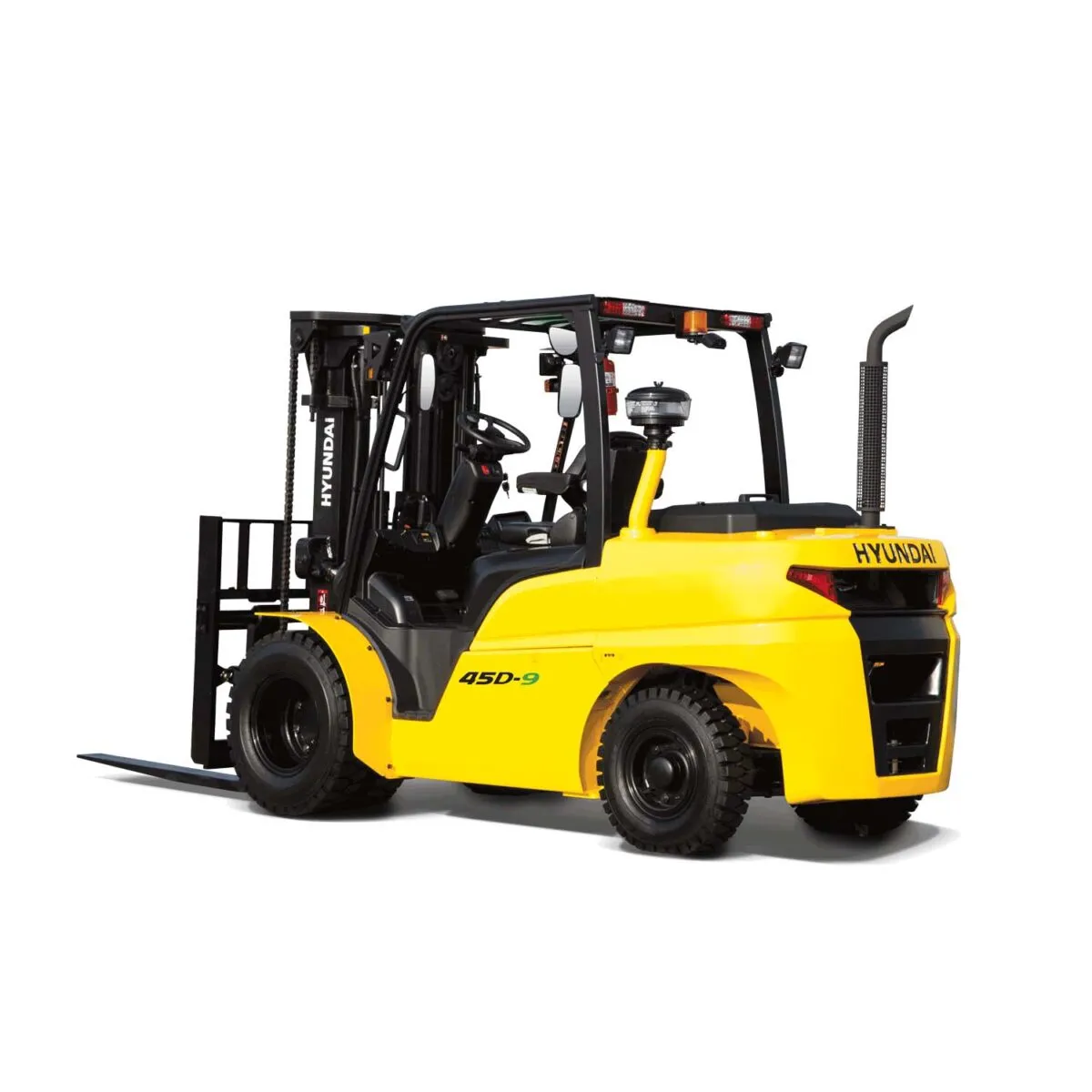

- 35D-9, 40D-9, 45D-9 and 50DA-9: 3,500 to 5,000 kg at 600 mm, for intensive work and front-end attachments, with a 75 kW Cummins QSF3.8 engine that meets Stage IV using SCR and no particulate filter.

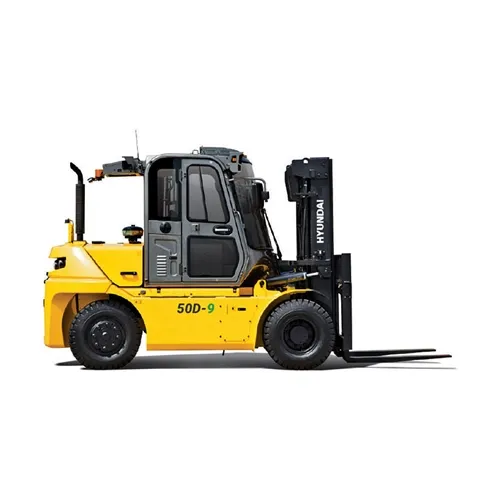

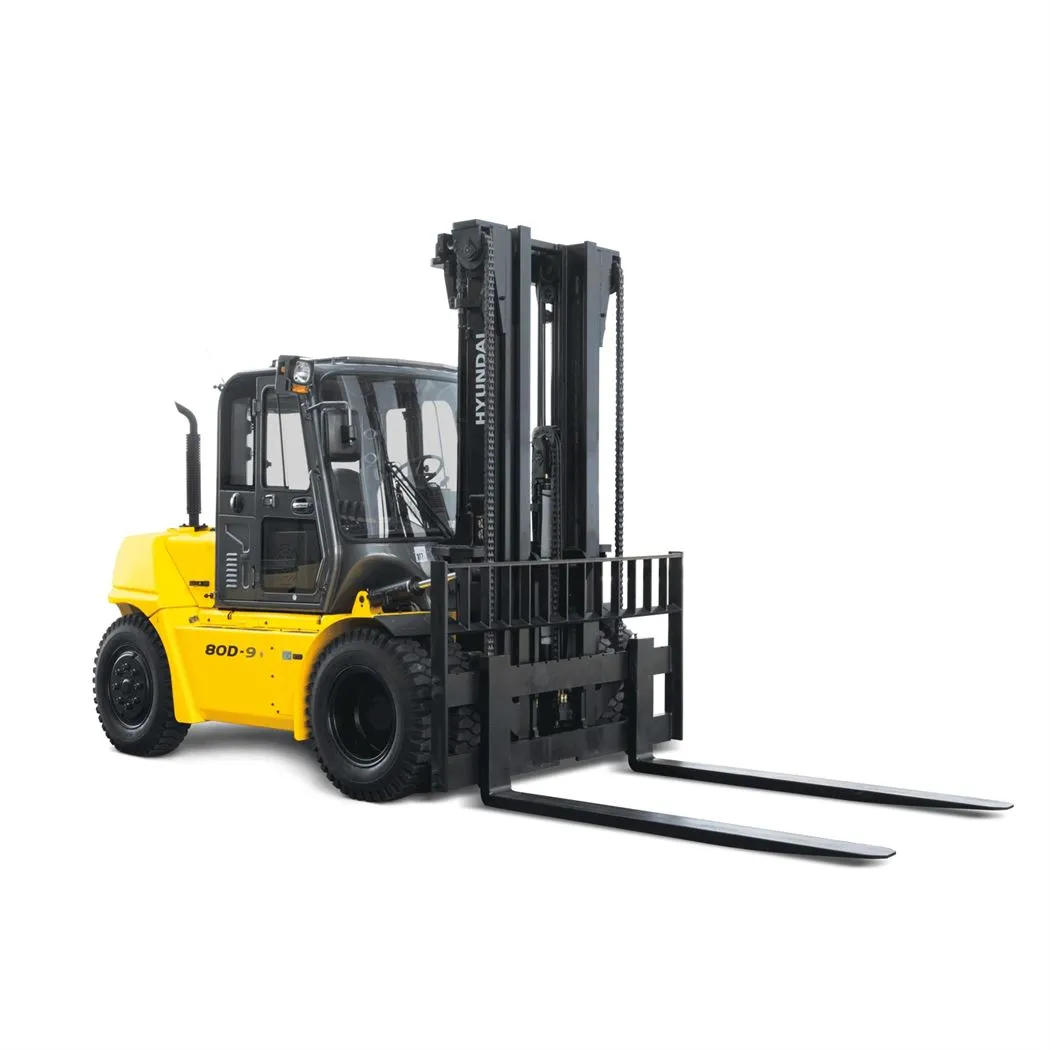

- 50D-9, 70D-9 and 80D-9: 5,000, 7,000 and 8,000 kg at 600 mm for large loads, also on the 75 kW Cummins, turning in 3,314 to 3,700 mm.
The 50D-9 and the 50DA-9 are different trucks: the 50DA-9 is the top of the middle size, and the 50D-9 the start of the 5 to 8 tonne size.
Specifications
| Truck type | Diesel counterbalance forklift, powershift, pneumatic tyres |
|---|---|
| Models | 25D-9, 30D-9, 33D-9; 35D-9, 40D-9, 45D-9, 50DA-9; 50D-9, 70D-9, 80D-9 |
| Rated capacity | 2,500 / 3,000 / 3,300 kg at 500 mm; 3,500 / 4,000 / 4,500 / 5,000 kg at 600 mm; 5,000 / 7,000 / 8,000 kg at 600 mm |
| Engine | Kubota V3307, 3.3 litre, 50 kW (25 - 33D-9); Cummins QSF3.8, 75 kW (35D-9 and up) |
| Emissions | Stage IIIB, no particulate filter (25 - 33D-9); Stage IV with SCR (Cummins models) |
| Standard lift height | 3,305 mm (25 - 33D-9); 3,020 mm (35 - 45D-9); 2,930 mm (50DA-9) |
| Travel speed, unladen | 18.5 - 20.0 km/h (25 - 33D-9); 33.6 - 35 km/h (50 - 80D-9) |
| Turning radius | 2,342 / 2,413 / 2,463 mm (25 / 30 / 33D-9); 3,314 / 3,436 / 3,700 mm (50 / 70 / 80D-9) |
Specifications are for a new machine. Each used machine in stock is listed below with its own.
In stock
D-9 in stock now
New specifications to order and used machines. Each used machine is one specific truck with its own year, mast and battery; open one for its photos and full specification.
Compare the used machines side by side
| Machine | Year | Capacity | Lift height | Mast | Power | Hire from |
|---|---|---|---|---|---|---|

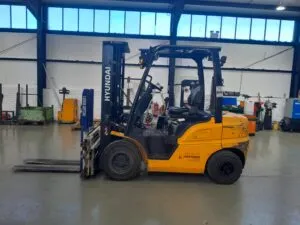

 Used 25D-9 A9450 | 2019 | 2,500 kg | - | Triple | Diesel | £95/wk |

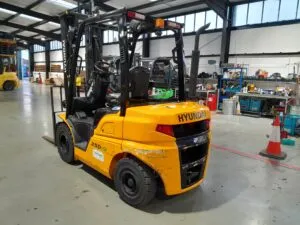

 Used 25D-9 A8798 | 2019 | 2,500 kg | 3,700 mm | Duplex | Diesel | £95/wk |
 Used 35D-9 A8232 | 2016 | 3,500 kg | 4,700 mm | Triple | Diesel | £105/wk |

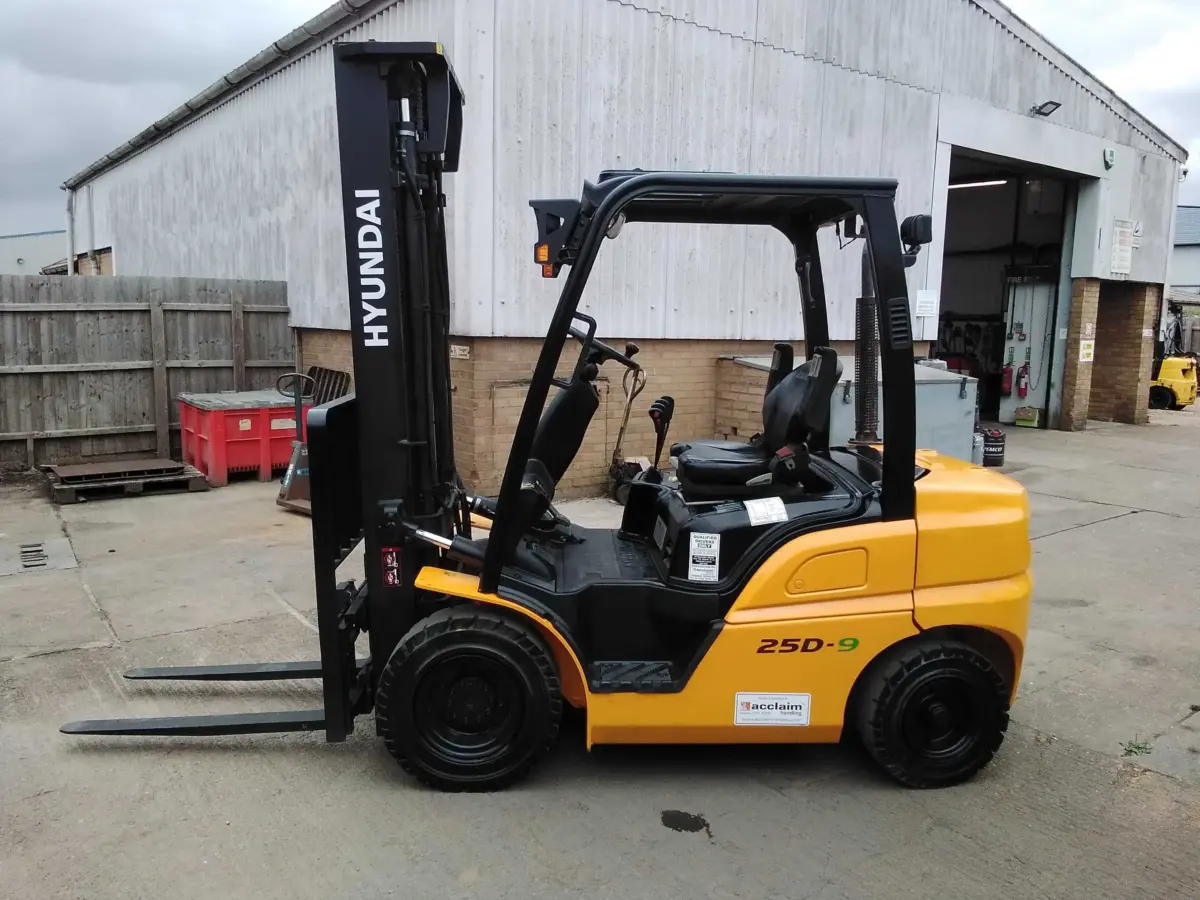

 Used 25D-9 A8213 | 2016 | 2,500 kg | 3,990 mm | Duplex | Diesel | £95/wk |
 Used 33D-9 A8167 | 2016 | 3,300 kg | 4,450 mm | Triple | Diesel | £105/wk |
 Used 30D-9 A8051 | 2015 | 3,000 kg | 5,540 mm | Telescopic | Diesel | £105/wk |
Compare the new specifications side by side
These are the configurations listed for order or hire new. They differ by capacity, mast and lift height; the full build is confirmed at quotation.
| Machine | Year | Capacity | Lift height | Mast | Power | Hire from |
|---|---|---|---|---|---|---|
| New 35D-9 Z0403 | New | 3,500 kg | 2,720 mm | 2-Stage Limited Free Lift | Diesel | £130/wk |
| New 35D-9 Z0355 | New | 3,500 kg | 3,005 mm | 2-Stage Full Free Lift | Diesel | £130/wk |
| New 35D-9 Z0153 | New | 3,500 kg | 6,540 mm | Triplex Full Free Lift | Diesel | £130/wk |
| New 40D-9 Z0404 | New | 4,000 kg | 2,720 mm | 2-Stage Limited Free Lift | Diesel | £150/wk |
| New 40D-9 Z0356 | New | 4,000 kg | 3,005 mm | 2-Stage Full Free Lift | Diesel | £150/wk |
| New 40D-9 Z0154 | New | 4,000 kg | 6,540 mm | Triplex Full Free Lift | Diesel | £150/wk |
| New 45D-9 Z0405 | New | 4,500 kg | 2,720 mm | 2-Stage Limited Free Lift | Diesel | £150/wk |
| New 45D-9 Z0357 | New | 4,500 kg | 3,005 mm | 2-Stage Full Free Lift | Diesel | £150/wk |
| New 45D-9 Z0155 | New | 4,500 kg | 6,540 mm | Triplex Full Free Lift | Diesel | £150/wk |
| New 50DA-9 Z0409 | New | 5,000 kg | 2,630 mm | 2-Stage Limited Free Lift | Diesel | £150/wk |
| New 50D-9 Z0325 | New | 5,000 kg | 2,730 mm | 2-Stage Limited Free Lift | Diesel | £150/wk |
| New 50DA-9 Z0361 | New | 5,000 kg | 2,902 mm | 2-Stage Full Free Lift | Diesel | £150/wk |
| New 50D-9 Z0157 | New | 5,000 kg | 6,060 mm | Triplex Full Free Lift | Diesel | £150/wk |
| New 50DA-9 Z0156 | New | 5,000 kg | 6,482 mm | Triplex Full Free Lift | Diesel | £150/wk |
| New 70D-9 Z0326 | New | 7,000 kg | 2,730 mm | 2-Stage Limited Free Lift | Diesel | £175/wk |
| New 70D-9 Z0158 | New | 7,000 kg | 6,060 mm | Triplex Full Free Lift | Diesel | £175/wk |
| New 80D-9 Z0313 | New | 8,000 kg | 2,740 mm | 2-Stage Limited Free Lift | Diesel | £175/wk |
| New 80D-9 Z0159 | New | 8,000 kg | 6,070 mm | Triplex Full Free Lift | Diesel | £175/wk |
Buying a used D-9
On the 2.5 to 3.3 tonne trucks, the display gives a clear warning when a service is due, and a clutch protection system limits excessive inching. Some have a passcode start. Check the tyres, mast chains and hydraulic hoses, and ask for its hours and service record. Our engineers inspect every used D-9 before sale.

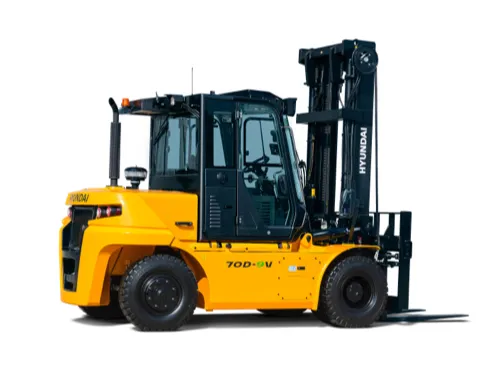

The D-9V that followed
The Stage V D-9V family covers the same capacities, with a particulate filter and automatic regeneration.
Supply, hire and training
As Hyundai’s exclusive dealer and distributor we sell and service Hyundai diesel forklifts of every generation. Diesel forklifts are available on hire and lease; ask us which models are available now. We run counterbalance forklift training at our centres and on customers’ sites.
Tell us the load, the lift height and the site, and we will say which D-9 fits, new, used or on hire.
