Hyundai D-9V Stage V diesel forklifts, 2.5 to 8 tonnes
Sites that need a new diesel forklift meeting Stage V, from 2.5 tonne yard work to 8 tonne heavy lifting. Hyundai's D-9V family, 2.5 to 8 tonnes.
Hyundai
The D-9V at a glance
The D-9V family is Hyundai’s Stage V diesel counterbalance range, the generation after the D-9. Every model cleans its exhaust with an oxidation catalyst and a particulate filter that regenerates automatically, and drives through an automatic powershift transmission. It runs from 2,500 kg warehouse and yard trucks to 8,000 kg heavy lifters.
- Usedmachines in stock now
- Newspecifications listed to order
- £100a week to hire, from (ex VAT)
- 2.5 - 8.0 trated capacity across the range
Specification
Three sizes

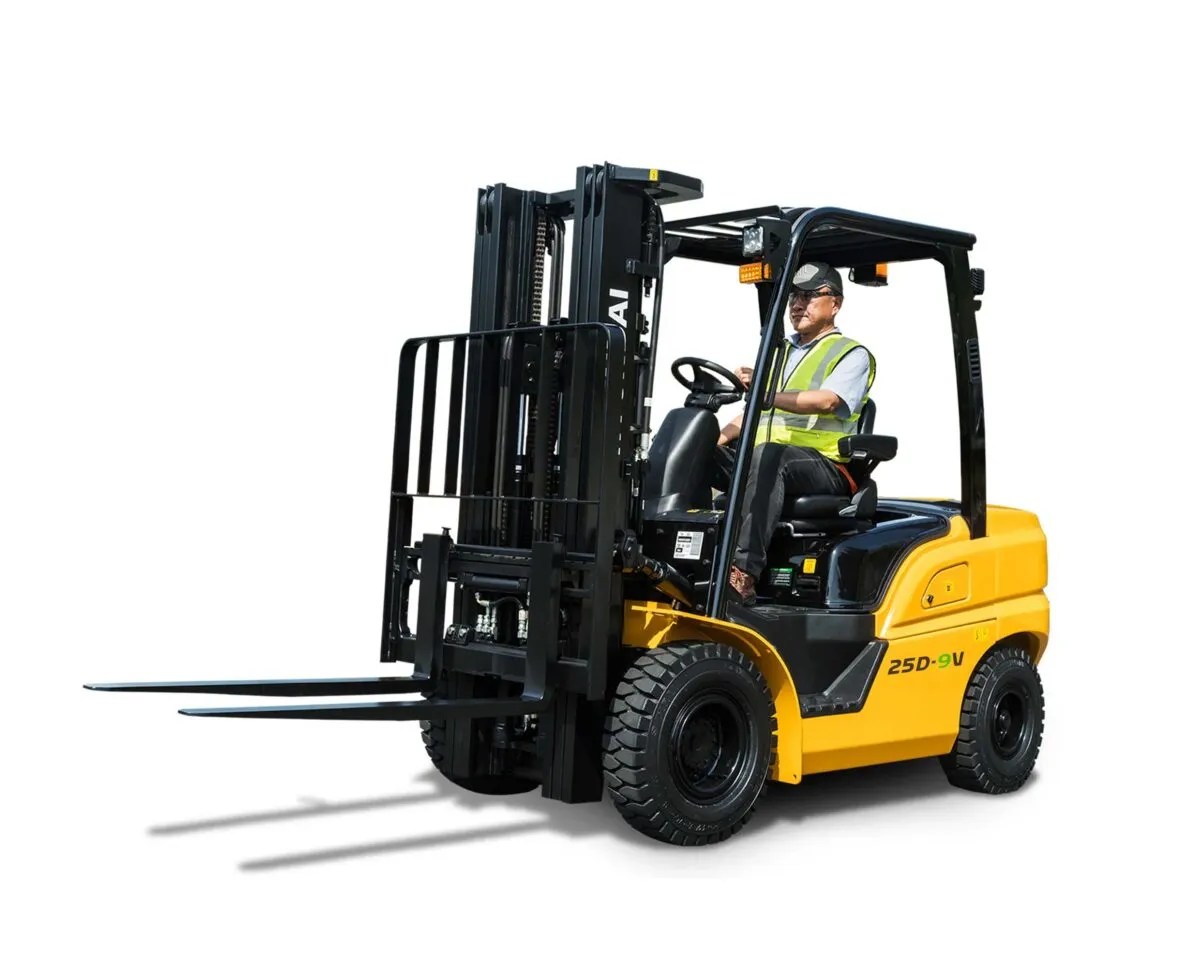

- 25D-9V, 30D-9V and 35DN-9V: 2,500, 3,000 and 3,500 kg at a 500 mm load centre, with a 2.2 litre Hyundai engine, travelling at up to 18.8 km/h and turning in 2,352 to 2,480 mm.

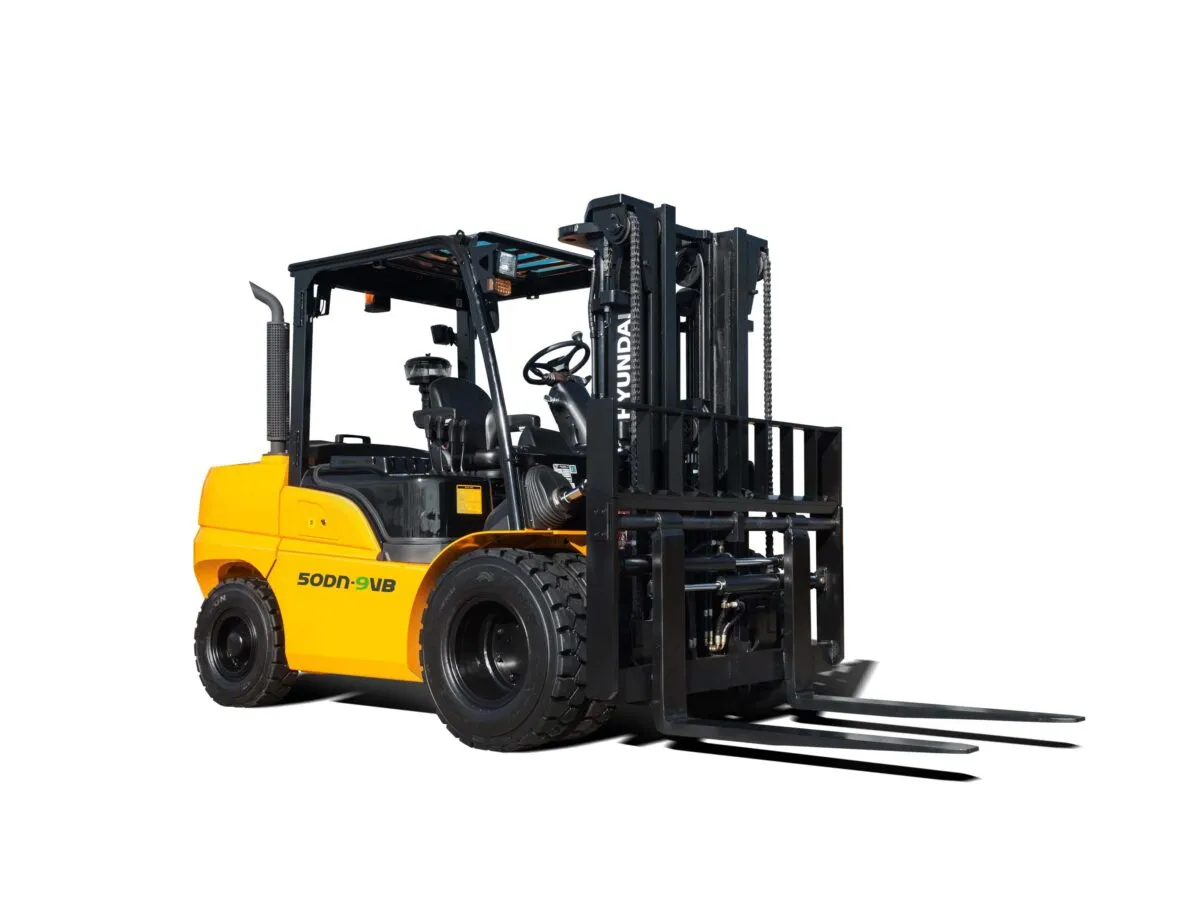

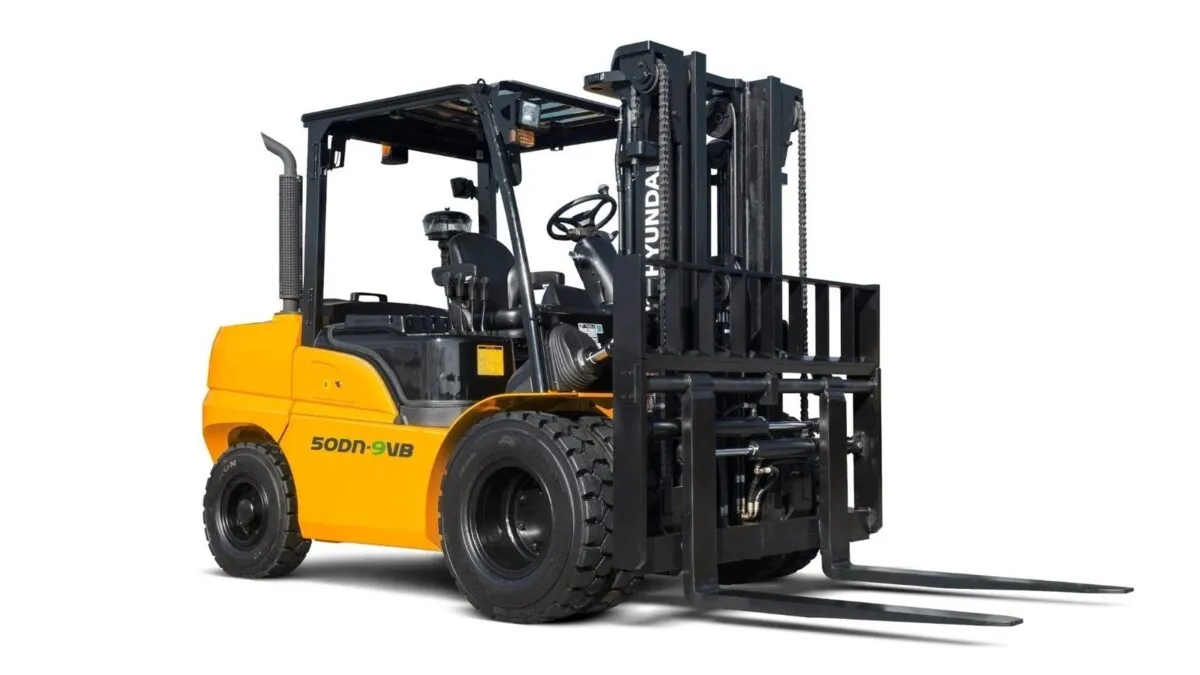

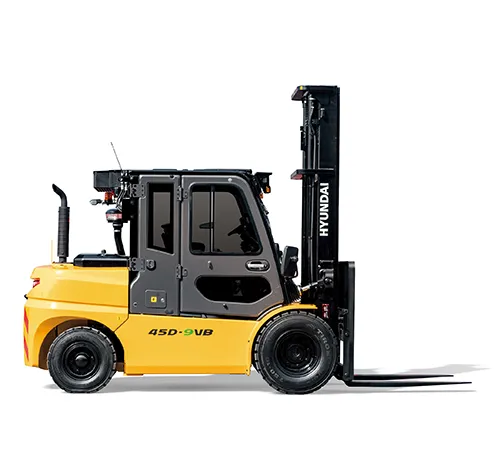

- 35D-9VB to 50DN-9VB: 3,500 to 4,990 kg at 600 mm, with a 2.9 litre Hyundai engine and a two-speed automatic forward gearbox, travelling at up to 29.2 km/h. The 9VC versions carry 4,000 to 4,990 kg at 500 mm.

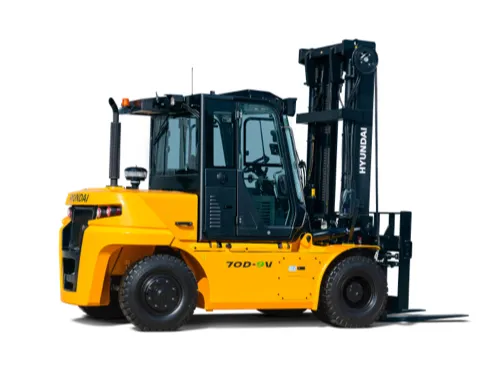

- 70D-9V and 80D-9V: 7,000 and 8,000 kg at 600 mm, with a ZF full-automatic transmission, masts to 7,330 and 7,650 mm, and SCR as well as the particulate filter.
Specifications
| Truck type | Stage V diesel counterbalance forklift, powershift, pneumatic tyres |
|---|---|
| Models | 25D-9V, 30D-9V, 35DN-9V; 35D-9VB, 40D-9VB, 45D-9VB, 50DN-9VB (and 9VC versions); 70D-9V, 80D-9V |
| Rated capacity | 2,500 / 3,000 / 3,500 kg at 500 mm; 3,500 / 4,000 / 4,500 / 4,990 kg at 600 mm (9VB); 4,000 / 4,500 / 4,990 kg at 500 mm (9VC); 7,000 / 8,000 kg at 600 mm |
| Engine | Hyundai 2.2 litre (25 - 35DN-9V); Hyundai 2.9 litre (9VB, 9VC, 70/80D-9V) |
| Emissions | Stage V: DOC and DPF; SCR added on the 70D-9V and 80D-9V |
| Travel speed, laden / unladen | 16.4 / 17.7 - 17.2 / 18.8 km/h (2.5 - 3.5 t); 25.8 / 28.1 - 26.8 / 29.2 km/h (9VB); 29.8 / 33.3 - 30.2 / 34.3 km/h (7 - 8 t) |
| Turning radius | 2,352 - 2,480 mm; 2,895 - 3,081 mm (9VB); 3,436 / 3,700 mm (70 / 80D-9V) |
| Maximum lift height | 7,330 mm (70D-9V); 7,650 mm (80D-9V) |
Specifications are for a new machine. Each used machine in stock is listed below with its own.
In stock
D-9V in stock now
New specifications to order and used machines. Each used machine is one specific truck with its own year, mast and battery; open one for its photos and full specification.
Compare the used machines side by side
| Machine | Year | Capacity | Lift height | Mast | Power | Hire from |
|---|---|---|---|---|---|---|
 Used 35DN-9V A9691 | 2021 | 3,500 kg | 4,500 mm | Triple | Diesel | £105/wk |
 Used 35DN-9V A9689 | 2021 | 3,500 kg | 4,500 mm | Triple | Diesel | £105/wk |
 Used 35DN-9V A9688 | 2021 | 3,500 kg | 4,500 mm | Triple | Diesel | £105/wk |
 Used 35DN-9V A9687 | 2021 | 3,500 kg | 4,500 mm | Triple | Diesel | £105/wk |
Compare the new specifications side by side
These are the configurations listed for order or hire new. They differ by capacity, mast and lift height; the full build is confirmed at quotation.
| Machine | Year | Capacity | Lift height | Mast | Power | Hire from |
|---|---|---|---|---|---|---|
| New 25D-9V Z0146 | New | 2,500 kg | 3,305 mm | 2-Stage Limited Free Lift | Diesel | £100/wk |
| New 30D-9V Z0147 | New | 3,000 kg | 3,305 mm | 2-Stage Limited Free Lift | Diesel | £110/wk |
| New 35D-9VB Z0149 | New | 3,500 kg | 3,020 mm | 2-Stage Limited Free Lift | Diesel | £130/wk |
| New 35DN-9V Z0148 | New | 3,500 kg | 3,305 mm | 2-Stage Limited Free Lift | Diesel | £130/wk |
| New 40D-9VC Z9045 | New | 4,000 kg | 2,702 mm | 2-Stage Limited Free Lift | Diesel | Call |
| New 40D-9VB Z0150 | New | 4,000 kg | 3,020 mm | 2-Stage Limited Free Lift | Diesel | £150/wk |
| New 40D-9VC Z9046 | New | 4,000 kg | 6,540 mm | Triplex Full Free Lift | Diesel | Call |
| New 45D-9VB Z0151 | New | 4,500 kg | 3,020 mm | 2-Stage Limited Free Lift | Diesel | £150/wk |
| New 50DN-9VB Z0152 | New | 4,990 kg | 2,930 mm | 2-Stage Limited Free Lift | Diesel | £150/wk |
| New 50DN-9VB Z102591 | New | 5,000 kg | - | 2-Stage Full Free Lift | Diesel | Call |
| New 50DN-9VB Z102592 | New | 5,000 kg | - | Triplex Full Free Lift | Diesel | Call |
| New 50DN-9VB Z102593 | New | 5,000 kg | - | 2-Stage Full Free Lift | Diesel | Call |
| New 50DN-9VC Z9047 | New | 5,000 kg | 2,702 mm | 2-Stage Limited Free Lift | Diesel | Call |
| New 50DN-9VC Z9048 | New | 5,000 kg | 6,540 mm | Triplex Full Free Lift | Diesel | Call |
| New 70D-9V Z0587 | New | 7,000 kg | 4,500 mm | 2-Stage Limited Free Lift | Diesel | Call |
| New 80D-9V Z0588 | New | 8,000 kg | 4,540 mm | 2-Stage Limited Free Lift | Diesel | Call |
Living with the particulate filter
Regeneration runs automatically while the truck works, and a parked regeneration can be started by hand at any time. A switch holds off regeneration in areas with a fire risk. On the 70D-9V and 80D-9V, the fuel filter interval is 1,000 hours, long-life hydraulic oil runs to 5,000 hours between changes, and the cab tilts up to 52 degrees for service access.
Checking a used D-9V
Engine and transmission fault codes can be read on the display, and the truck warns from 30 hours before a service is due. Check the regeneration history and the service hour meter, and look at the tyres, chains and hoses. Our engineers inspect every used D-9V before sale.
Supply, hire and training
We supply the D-9V family new as Hyundai’s exclusive dealer and distributor, with the mast, tyres and attachments your work needs. Diesel forklifts are available on hire and lease; ask us which models are available now. We run counterbalance forklift training at our centres and on customers’ sites.
Tell us the load, the lift height and the site, and we will say which D-9V fits, new, used or on hire.
