Hyundai L-7A LPG forklifts, 3.5 to 7 tonnes: 35L-7A to 70L-7A
Heavy indoor handling on LPG, from 3.5 tonne pallets to 7 tonne paper rolls, including ramp work and fast, repetitive lifting. Hyundai's larger L-7A trucks, 3.5 to 7 tonnes.
Hyundai
The L-7A 3.5–7 t at a glance
These are the larger trucks in Hyundai’s L-7A LPG range: counterbalance forklifts from 3,500 to 7,000 kg at a 600 mm load centre. They are built for high-output indoor handling, loading on ramps and fast, repetitive lifting, and the 6 and 7 tonne models for heavy work such as lifting paper rolls. The smaller 2.5 to 3.3 tonne L-7A trucks have their own page.
- Newspecifications listed to order
- £125a week to hire, from (ex VAT)
- 3.5 - 7.0 trated capacity across the range
Specifications
| Truck type | LPG counterbalance forklift, pneumatic tyres |
|---|---|
| Models | 35L-7A, 40L-7A, 45L-7A, 50L-7A, 60L-7A, 70L-7A |
| Rated capacity | 3,500 / 4,000 / 4,500 / 5,000 / 6,000 / 7,000 kg at 600 mm load centre |
| Engine | GM 4.3 litre V6 LPG, 70 kW; PSI 4.3 litre, 78 kW on later 70L-7A trucks |
| Transmission | Powershift |
| Maximum lift height | 6,030 mm (35 - 45L-7A); 5,972 mm (50L-7A); 6,060 mm (60/70L-7A); 7,330 mm (later 70L-7A) |
| Travel speed, unladen | 22.4 - 23.8 km/h |
| Turning radius | 2,806 - 2,947 mm (35 - 50L-7A); 3,321 / 3,370 mm (60 / 70L-7A) |
| Gradeability, laden | 28.7 - 45.6% |
Specifications are for a new machine. Each used machine in stock is listed below with its own.
New to order
New Hyundai L-7A 3.5–7 t built to order
New specifications ordered from the factory, built to the capacity, mast and options you choose. New machinery lead times are as low as 2-3 weeks.
| Machine | Capacity | Lift height | Mast | Hire or price | Ask |
|---|---|---|---|---|---|
 New2026 HYUNDAI 40L-7A | 4000 kg | 2720 mm | 2-Stage Limited Free Lift | £150 a week | Ask about this |
 New2026 HYUNDAI 35L-7A | 3500 kg | 6030 mm | Triplex Full Free Lift | £125 a week | Ask about this |
 New2026 HYUNDAI 70L-7A | 7000 kg | 2730 mm | 2-Stage Limited Free Lift | £175 a week | Ask about this |
 New2026 HYUNDAI 50L-7A | 5000 kg | 2630 mm | 2-Stage Limited Free Lift | £150 a week | Ask about this |
 New2026 HYUNDAI 35L-7A | 3500 kg | 3005 mm | 2-Stage Full Free Lift | £125 a week | Ask about this |
 New2026 HYUNDAI 45L-7A | 4500 kg | 6030 mm | Triplex Full Free Lift | £150 a week | Ask about this |
 New2026 HYUNDAI 60L-7A | 6000 kg | 6060 mm | Triplex Full Free Lift | £175 a week | Ask about this |
 New2026 HYUNDAI 40L-7A | 4000 kg | 3005 mm | 2-Stage Full Free Lift | £150 a week | Ask about this |
 New2026 HYUNDAI 50L-7A | 5000 kg | 5972 mm | Triplex Full Free Lift | £150 a week | Ask about this |
 New2026 HYUNDAI 70L-7A | 7000 kg | 6060 mm | Triplex Full Free Lift | £175 a week | Ask about this |
 New2026 HYUNDAI 45L-7A | 4500 kg | 3005 mm | 2-Stage Full Free Lift | £150 a week | Ask about this |
 New2026 HYUNDAI 40L-7A | 4000 kg | 6030 mm | Triplex Full Free Lift | £150 a week | Ask about this |
 New2026 HYUNDAI 60L-7A | 6000 kg | 2730 mm | 2-Stage Limited Free Lift | £175 a week | Ask about this |
 New2026 HYUNDAI 35L-7A | 3500 kg | 2720 mm | 2-Stage Limited Free Lift | £125 a week | Ask about this |
 New2026 HYUNDAI 45L-7A | 4500 kg | 2720 mm | 2-Stage Limited Free Lift | £150 a week | Ask about this |
 New2026 HYUNDAI 50L-7A | 5000 kg | 2897 mm | 2-Stage Full Free Lift | £150 a week | Ask about this |
Two sizes
- 35L-7A to 50L-7A: 3,500 to 5,000 kg, turning in 2,806 to 2,947 mm, with a standard lift of about 3 metres and masts to 6,030 mm.

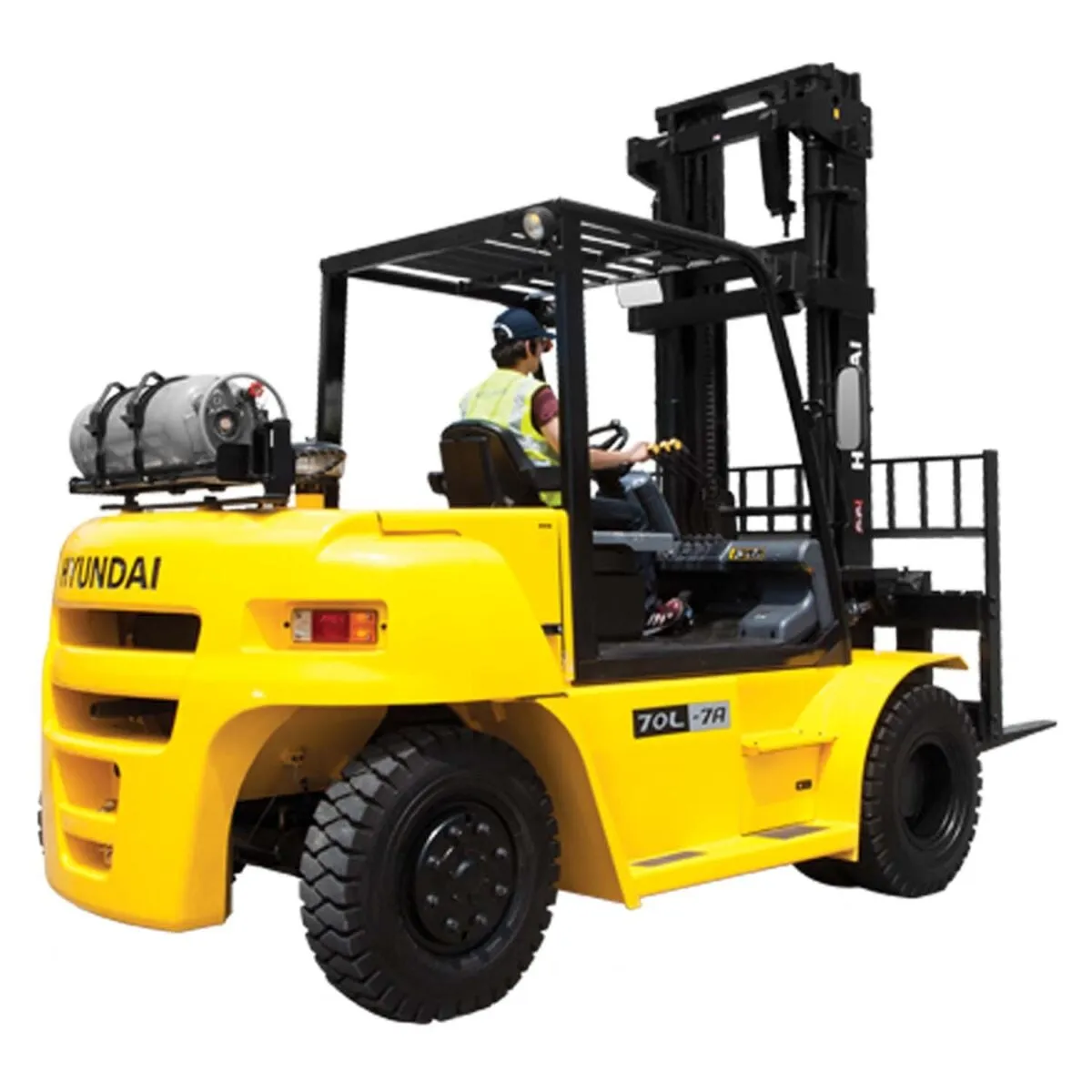

- 60L-7A and 70L-7A: 6,000 and 7,000 kg, turning in 3,321 and 3,370 mm. The 70L-7A is only 4,820 mm long overall.
Engine and drive
Power comes from a 4.3 litre V6 LPG engine and a powershift gearbox. It is a GM unit of 70 kW; later 70L-7A trucks have a PSI 4.3 litre engine of 78 kW and masts to 7,330 mm. Unladen travel speed is 22.4 to 23.8 km/h, and the operator presence system on the 3.5 to 5 tonne trucks stops the mast and drive unless the driver is seated.
What to check on a used truck
The dash carries warning lamps for the engine, air filter, transmission oil temperature, battery charging and engine oil, plus an hour meter, so switch on and see what shows. The transmission oil level can be checked without taking anything apart. On the 6 and 7 tonne trucks, a lamp warns of low brake oil and the steering axle centre pin has grease fittings. Our engineers inspect every used L-7A before it is sold.
Supply, hire and training
We sell the larger L-7A trucks used. For a new LPG truck of this size we supply the L-9 range as Hyundai’s exclusive dealer and distributor: the 35LN-9A at 3,500 kg and the 40L-9, 45L-9 and 50L-9 at 4,000 to 5,000 kg. We maintain both. Heavy LPG forklifts are available on hire and lease; ask us which models are available now. We run counterbalance forklift training at our centres and on customers’ sites.
Tell us the load, the lift height and the site, and we will say which L-7A 3.5–7 t fits, new, used or on hire.
