Warehouses and industrial sites that load on ramps and lift all day, and want an LPG truck built to European Stage V. Hyundai's L-9A, 2.5 to 3.5 tonnes.
Hyundai
The L-9A is Hyundai’s LPG counterbalance range for 2,500 to 3,500 kg, meeting European Stage V emission levels. A 2.4 litre four-cylinder engine drives through a powershift transmission to a drive axle with wet disc brakes, and the fully electronic LPG system runs with a catalytic converter and two oxygen sensors. It suits loading on ramps, fast lifting and repetitive work in warehouses and industrial sites.
Specification
All four run on pneumatic tyres, lift 3,305 mm on the standard mast and travel at up to 18.6 km/h unladen.
| Truck type | LPG counterbalance forklift, pneumatic tyres |
|---|---|
| Models | 25L-9A, 30L-9A, 33L-9A, 35LN-9A |
| Rated capacity | 2,500 / 3,000 / 3,300 / 3,500 kg at 500 mm load centre |
| Engine | Hyundai 2.4 litre four-cylinder LPG, electronic fuel system with catalytic converter |
| Emissions | European Stage V (later trucks); US Tier 4 (earlier trucks) |
| Transmission and brakes | Powershift; wet disc brakes |
| Standard lift height | 3,305 mm |
| Travel speed, laden / unladen | 16.4 / 17.7 km/h (25L-9A) to 16.7 / 18.6 km/h (35LN-9A) |
| Turning radius | 2,352 / 2,413 / 2,463 / 2,490 mm |
Specifications are for a new machine. Each used machine in stock is listed below with its own.
In stock
Actual machines in our yard, used and new, each with its own photos and specification. Open one for the details.
| Machine | Capacity | Lift height | Mast | Hire or price | Ask |
|---|---|---|---|---|---|
 HYUNDAI 35LN-9A | 3,500 kg | 6,000 mm | Triple | £105 a week | Ask about this |
 HYUNDAI 33L-9A | 3,300 kg | 4,000 mm | Duplex | £105 a week | Ask about this |
 HYUNDAI 35LN-9A | 3,500 kg | 6,000 mm | Triple | £105 a week | Ask about this |
New to order
New specifications ordered from the factory, built to the capacity, mast and options you choose. New machinery lead times are as low as 2-3 weeks.
| Machine | Capacity | Lift height | Mast | Hire or price | Ask |
|---|---|---|---|---|---|
 New2026 HYUNDAI 30L-9A | 3000 kg | 5005 mm | Triplex Full Free Lift | £115 a week | Ask about this |
 New2026 HYUNDAI 35LN-9A | 3500 kg | 7015 mm | Triplex Full Free Lift | Call for a price | Ask about this |
 New2026 HYUNDAI 33L-9A | 3300 kg | 3005 mm | 2-Stage Limited Free Lift | £120 a week | Ask about this |
 New2026 HYUNDAI 33L-9A | 3300 kg | 3276 mm | 2-Stage Full Free Lift | £120 a week | Ask about this |
 New2026 HYUNDAI 25L-9A | 2500 kg | 3276 mm | 2-Stage Full Free Lift | £110 a week | Ask about this |
 New2026 HYUNDAI 25L-9A | 2500 kg | 7915 mm | 4-Stage Full Freelift | £110 a week | Ask about this |
 New2026 HYUNDAI 25L-9A | 2500 kg | 3005 mm | 2-Stage Limited Free Lift | £110 a week | Ask about this |
 New2026 HYUNDAI 30L-9A | 3000 kg | 3005 mm | 2-Stage Limited Free Lift | £115 a week | Ask about this |
 New2026 HYUNDAI 30L-9A | 3000 kg | 7915 mm | 4-Stage Full Freelift | £115 a week | Ask about this |
 New2026 HYUNDAI 35LN-9A | 3500 kg | 2976 mm | 2-Stage Limited Free Lift | Call for a price | Ask about this |
 New2026 HYUNDAI 33L-9A | 3300 kg | 7915 mm | 4-Stage Full Freelift | £120 a week | Ask about this |
 New2026 HYUNDAI 33L-9A | 3300 kg | 5005 mm | Triplex Full Free Lift | £120 a week | Ask about this |
 New2026 HYUNDAI 25L-9A | 2500 kg | 5005 mm | Triplex Full Free Lift | £110 a week | Ask about this |
 New2026 HYUNDAI 30L-9A | 3000 kg | 3276 mm | 2-Stage Full Free Lift | £115 a week | Ask about this |
The parking brake applies itself when the power is off, hill start assist stops the truck rolling back on a ramp, and a stability system warns the driver when the truck leans too far. The operator presence system and a passcode start keep it in the right hands, and a 5.6-inch colour display shows the load weight and can cap the top speed.
Earlier L-9A trucks carried US Tier 4 engine certification. The later ones are built to European Stage V, and the 35LN-9A joined the range. Check the engine plate if emissions matter on your site.
Fault codes show on the display without a separate diagnostic tool, and a reminder appears 30 hours ahead of each scheduled service, so the display tells you a lot about how it has been kept. Test the low-gas warning and the emergency LPG cut-off switch. Our engineers inspect every used L-9A before sale.
As Hyundai’s exclusive dealer and distributor, we order each new L-9A to your mast and attachment spec. LPG forklifts are available on hire and lease; ask us which models are available now. We run counterbalance forklift training at our centres and on customers’ sites.
Tell us the load, the lift height and the site, and we will say which L-9A fits, new, used or on hire.
HYUNDAI 33L-9A
This 2019 Hyundai 33L-9A is a used LPG forklift. It is rated for 3,300 kg and lifts to 4,000 mm. It has a duplex mast, a closed height of 2,600 mm, integral sideshift and 1,200 mm forks. It is supplied with a current thorough examination certificate.
| Stock reference | A9455 |
|---|---|
| Condition | Used |
| Year of manufacture | 2019 |
| Machine type | LP Gas Forklifts |
| Power | Gas |
| Rated capacity | 3,300 kg |
| Lift height | 4,000 mm |
| Closed height | 2,600 mm |
| Mast | Duplex |
| Fork length | 1,200 mm |
| Sideshift | Integral |

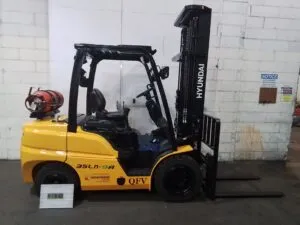

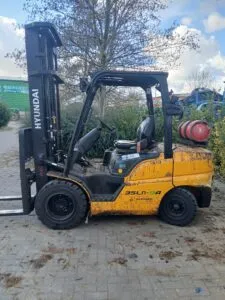

HYUNDAI 35LN-9A
This 2024 Hyundai 35LN-9A is a used LPG forklift. It is rated for 3,500 kg and lifts to 6,000 mm. It has a triple mast, a closed height of 2,750 mm, 2,120 mm of free lift, integral sideshift and 1,200 mm forks. It is supplied with a current thorough examination certificate.
| Stock reference | A10673 |
|---|---|
| Condition | Used |
| Year of manufacture | 2024 |
| Machine type | LP Gas Forklifts |
| Power | Gas |
| Rated capacity | 3,500 kg |
| Lift height | 6,000 mm |
| Closed height | 2,750 mm |
| Free lift | 2,120 mm |
| Mast | Triple |
| Fork length | 1,200 mm |
| Sideshift | Integral |
HYUNDAI 35LN-9A
This Hyundai 35LN-9A is a used LPG forklift. It is rated for 3,500 kg and lifts to 6,000 mm. It has a triple mast and 1,200 mm forks. It is supplied with a current thorough examination certificate.
| Stock reference | A10674 |
|---|---|
| Condition | Used |
| Machine type | LP Gas Forklifts |
| Power | Gas |
| Rated capacity | 3,500 kg |
| Lift height | 6,000 mm |
| Mast | Triple |
| Fork length | 1,200 mm |
2026 HYUNDAI 30L-9A
This new Hyundai 30L-9A is an LPG forklift, built to order in this specification. It is rated for 3,000 kg and lifts to 3,276 mm. It has a 2-stage full free lift mast, a closed height of 2,190 mm and 1,050 mm forks.
| Stock reference | Z0365 |
|---|---|
| Condition | New, built to order |
| Machine type | LP Gas Forklifts |
| Power | LP Gas |
| Rated capacity | 3,000 kg |
| Lift height | 3,276 mm |
| Closed height | 2,190 mm |
| Mast | 2-Stage Full Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 25L-9A
This new Hyundai 25L-9A is an LPG forklift, built to order in this specification. It is rated for 2,500 kg and lifts to 5,005 mm. It has a triplex full free lift mast, a closed height of 2,275 mm and 1,050 mm forks.
| Stock reference | Z0345 |
|---|---|
| Condition | New, built to order |
| Machine type | LP Gas Forklifts |
| Power | LP Gas |
| Rated capacity | 2,500 kg |
| Lift height | 5,005 mm |
| Closed height | 2,275 mm |
| Mast | Triplex Full Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 33L-9A
This new Hyundai 33L-9A is an LPG forklift, built to order in this specification. It is rated for 3,300 kg and lifts to 5,005 mm. It has a triplex full free lift mast, a closed height of 2,360 mm and 1,050 mm forks.
| Stock reference | Z0335 |
|---|---|
| Condition | New, built to order |
| Machine type | LP Gas Forklifts |
| Power | LP Gas |
| Rated capacity | 3,300 kg |
| Lift height | 5,005 mm |
| Closed height | 2,360 mm |
| Mast | Triplex Full Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 30L-9A
This new Hyundai 30L-9A is an LPG forklift, built to order in this specification. It is rated for 3,000 kg and lifts to 7,915 mm. It has a 4-stage full freelift mast, a closed height of 2,775 mm and 1,050 mm forks.
| Stock reference | Z0169 |
|---|---|
| Condition | New, built to order |
| Machine type | LP Gas Forklifts |
| Power | LP Gas |
| Rated capacity | 3,000 kg |
| Lift height | 7,915 mm |
| Closed height | 2,775 mm |
| Mast | 4-Stage Full Freelift |
| Fork length | 1,050 mm |
2026 HYUNDAI 33L-9A
This new Hyundai 33L-9A is an LPG forklift, built to order in this specification. It is rated for 3,300 kg and lifts to 7,915 mm. It has a 4-stage full freelift mast, a closed height of 2,825 mm and 1,050 mm forks.
| Stock reference | Z0170 |
|---|---|
| Condition | New, built to order |
| Machine type | LP Gas Forklifts |
| Power | LP Gas |
| Rated capacity | 3,300 kg |
| Lift height | 7,915 mm |
| Closed height | 2,825 mm |
| Mast | 4-Stage Full Freelift |
| Fork length | 1,050 mm |
2026 HYUNDAI 25L-9A
This new Hyundai 25L-9A is an LPG forklift, built to order in this specification. It is rated for 2,500 kg and lifts to 3,005 mm. It has a 2-stage limited free lift mast, a closed height of 2,025 mm, 155 mm of free lift and 1,050 mm forks.
| Stock reference | Z0424 |
|---|---|
| Condition | New, built to order |
| Machine type | LP Gas Forklifts |
| Power | LP Gas |
| Rated capacity | 2,500 kg |
| Lift height | 3,005 mm |
| Closed height | 2,025 mm |
| Free lift | 155 mm |
| Mast | 2-Stage Limited Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 30L-9A
This new Hyundai 30L-9A is an LPG forklift, built to order in this specification. It is rated for 3,000 kg and lifts to 3,005 mm. It has a 2-stage limited free lift mast, a closed height of 2,040 mm and 1,050 mm forks.
| Stock reference | Z0423 |
|---|---|
| Condition | New, built to order |
| Machine type | LP Gas Forklifts |
| Power | LP Gas |
| Rated capacity | 3,000 kg |
| Lift height | 3,005 mm |
| Closed height | 2,040 mm |
| Mast | 2-Stage Limited Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 25L-9A
This new Hyundai 25L-9A is an LPG forklift, built to order in this specification. It is rated for 2,500 kg and lifts to 3,276 mm. It has a 2-stage full free lift mast, a closed height of 2,175 mm and 1,050 mm forks.
| Stock reference | Z0368 |
|---|---|
| Condition | New, built to order |
| Machine type | LP Gas Forklifts |
| Power | LP Gas |
| Rated capacity | 2,500 kg |
| Lift height | 3,276 mm |
| Closed height | 2,175 mm |
| Mast | 2-Stage Full Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 25L-9A
This new Hyundai 25L-9A is an LPG forklift, built to order in this specification. It is rated for 2,500 kg and lifts to 7,915 mm. It has a 4-stage full freelift mast, a closed height of 2,760 mm and 1,050 mm forks.
| Stock reference | Z0168 |
|---|---|
| Condition | New, built to order |
| Machine type | LP Gas Forklifts |
| Power | LP Gas |
| Rated capacity | 2,500 kg |
| Lift height | 7,915 mm |
| Closed height | 2,760 mm |
| Mast | 4-Stage Full Freelift |
| Fork length | 1,050 mm |
2026 HYUNDAI 33L-9A
This new Hyundai 33L-9A is an LPG forklift, built to order in this specification. It is rated for 3,300 kg and lifts to 3,276 mm. It has a 2-stage full free lift mast, a closed height of 2,260 mm and 1,050 mm forks.
| Stock reference | Z0351 |
|---|---|
| Condition | New, built to order |
| Machine type | LP Gas Forklifts |
| Power | LP Gas |
| Rated capacity | 3,300 kg |
| Lift height | 3,276 mm |
| Closed height | 2,260 mm |
| Mast | 2-Stage Full Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 33L-9A
This new Hyundai 33L-9A is an LPG forklift, built to order in this specification. It is rated for 3,300 kg and lifts to 3,005 mm. It has a 2-stage limited free lift mast, a closed height of 2,110 mm and 1,050 mm forks.
| Stock reference | Z0400 |
|---|---|
| Condition | New, built to order |
| Machine type | LP Gas Forklifts |
| Power | LP Gas |
| Rated capacity | 3,300 kg |
| Lift height | 3,005 mm |
| Closed height | 2,110 mm |
| Mast | 2-Stage Limited Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 30L-9A
This new Hyundai 30L-9A is an LPG forklift, built to order in this specification. It is rated for 3,000 kg and lifts to 5,005 mm. It has a triplex full free lift mast, a closed height of 2,290 mm and 1,050 mm forks.
| Stock reference | Z0344 |
|---|---|
| Condition | New, built to order |
| Machine type | LP Gas Forklifts |
| Power | LP Gas |
| Rated capacity | 3,000 kg |
| Lift height | 5,005 mm |
| Closed height | 2,290 mm |
| Mast | Triplex Full Free Lift |
| Fork length | 1,050 mm |
2026 HYUNDAI 35LN-9A
This new Hyundai 35LN-9A is an LPG forklift, built to order in this specification. It is rated for 3,500 kg and lifts to 2,976 mm. It has a 2-stage limited free lift mast.
| Stock reference | Z9085 |
|---|---|
| Condition | New, built to order |
| Machine type | LP Gas Forklifts |
| Power | LP Gas |
| Rated capacity | 3,500 kg |
| Lift height | 2,976 mm |
| Mast | 2-Stage Limited Free Lift |
2026 HYUNDAI 35LN-9A
This new Hyundai 35LN-9A is an LPG forklift, built to order in this specification. It is rated for 3,500 kg and lifts to 7,015 mm. It has a triplex full free lift mast.
| Stock reference | Z9086 |
|---|---|
| Condition | New, built to order |
| Machine type | LP Gas Forklifts |
| Power | LP Gas |
| Rated capacity | 3,500 kg |
| Lift height | 7,015 mm |
| Mast | Triplex Full Free Lift |
