Cutting through oil, grease and heavy soiling on vehicles, plant, workshops and production areas, where hot water cleans faster than cold and needs less detergent. Kärcher HDS and HDS-E, 700 to 1,730 l/h.
Kärcher
A Kärcher HDS heats the water it sprays, so oil and grease break down faster and less detergent is needed. Most fire an oil burner on mains power; the HDS-E heats electrically, and the engine-driven versions need no power connection.
Specification
The M and S machines reach 155 °C at the steam stage and carry two detergent tanks. The Classic versions heat to 80 °C and are built on an open tubular steel frame with a crane hook and a 30-litre fuel tank.
| Machine type | Hot water high-pressure cleaner: oil-fired, electrically heated (HDS-E) or engine-driven |
|---|---|
| Models | Middle: HDS 7/10-4 M, 9/20-4 M, 9/20-4 Classic, 10/21-4 M, MXA, Classic. Super: HDS 13/20-4 S, 18/18-4 S Classic. HDS-E 8/16-4 M. Engine: HDS 8/20 De, G; HDS 1000 De, Be |
| Flow rate (maximum) | 700 l/h (HDS 7/10-4 M) to 1,730 l/h (HDS 18/18-4 S Classic) |
| Working pressure (maximum) | 100 bar (HDS 7/10-4 M) to 210 bar (HDS 10/21-4, HDS 1000 Be) |
| Maximum water temperature | 80 °C (Classic, HDS 8/20); 85 °C (HDS-E); 98 °C (HDS 1000); 155 °C (M and S) |
| Power supply | 230-240 V single-phase (HDS 7/10-4 M); 400 V three-phase (HDS 9/20-4, 10/21-4, 13/20-4 S, 18/18-4 S, HDS-E) |
| Engine | Diesel with electric start (HDS 8/20 De, HDS 1000 De); petrol (HDS 8/20 G, HDS 1000 Be) |
| Fuel tank | 25 l (M and S); 30 l (Classic, HDS 8/20); 34 l (HDS 1000) |
| HDS-E heating output | 12, 24 or 36 kW |
| High-pressure hose | 10 m as standard; 20 m on an automatic reel (HDS 10/21-4 MXA) |
Specifications are for a new machine. Each used machine in stock is listed below with its own.
New to order
New specifications ordered from the factory, built to the capacity, mast and options you choose. New machinery lead times are as low as 2-3 weeks.

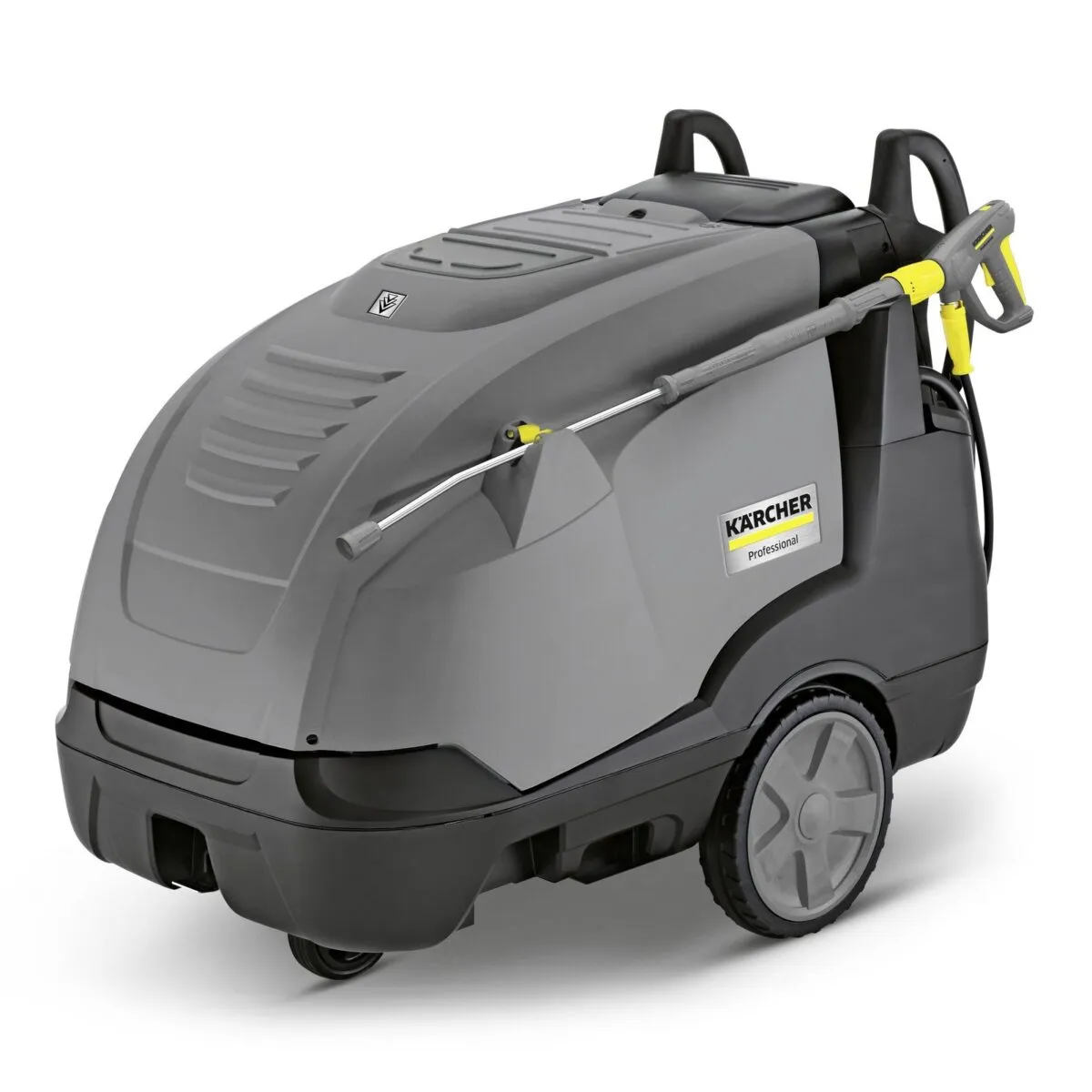

The HDS-E 8/16-4 M gives 760 l/h at 160 bar and up to 85 °C with no burner, for food plants, hospitals, kitchens and other indoor areas. It comes with 12, 24 or 36 kW of heating, and the higher ratings hold more heat in continuous work.
Away from mains power, the HDS 8/20 De (diesel) and HDS 8/20 G (petrol) deliver 800 l/h at 200 bar. The HDS 1000 De (diesel, 200 bar) and HDS 1000 Be (petrol, 210 bar) give 900 l/h, and all four sit in a steel frame built for crane lifting.
As an authorised Kärcher dealer we supply the HDS range new. Our engineers service and repair Kärcher machines, and other makes too.
Tell us the load, the lift height and the site, and we will say which HDS fits, new, used or on hire.
2026 KARCHER HDS 7/10-4 M (Facelift)
This new Kärcher HDS 7/10-4 M (Facelift) is a pressure washer, built to order in this specification.
| Stock reference | Z10035 |
|---|---|
| Condition | New, built to order |
| Machine type | Pressure Washers |
| Power | Hot Water Pressure Washers |
2026 KARCHER HDS 1000 De
This new Kärcher HDS 1000 De is a pressure washer, built to order in this specification.
| Stock reference | Z10049 |
|---|---|
| Condition | New, built to order |
| Machine type | Pressure Washers |
| Power | Hot Water Pressure Washers |
2026 KARCHER HDS 8/20 G *EU
This new Kärcher HDS 8/20 G is a pressure washer, built to order in this specification.
| Stock reference | Z10047 |
|---|---|
| Condition | New, built to order |
| Machine type | Pressure Washers |
| Power | Hot Water Pressure Washers |
2026 KARCHER HDS 10/21-4 MXA *EU-I
This new Kärcher HDS 10/21-4 MXA is a pressure washer, built to order in this specification.
| Stock reference | Z10040 |
|---|---|
| Condition | New, built to order |
| Machine type | Pressure Washers |
| Power | Hot Water Pressure Washers |

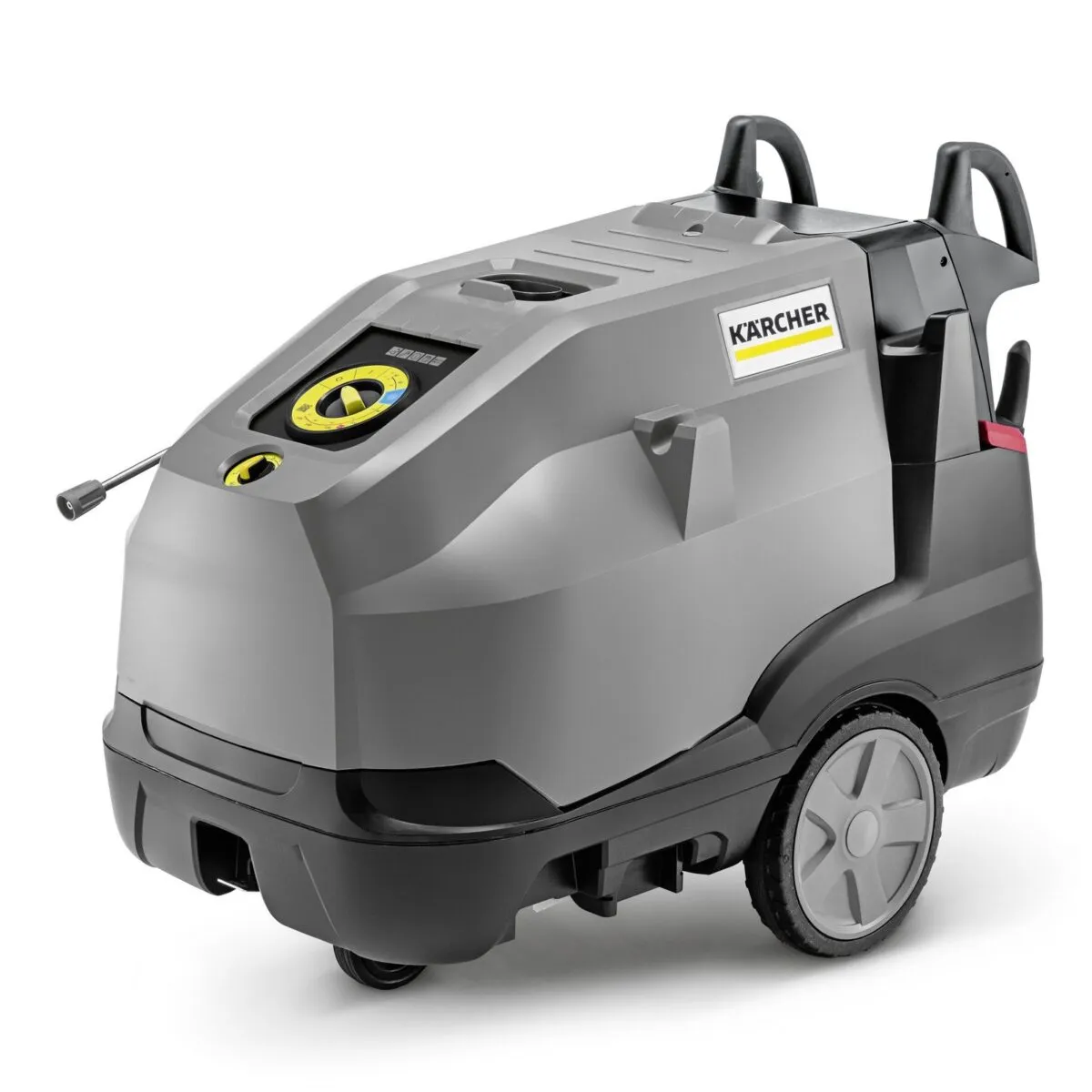

2026 KARCHER HDS 10/21-4 M *EU-I
This new Kärcher HDS 10/21-4 M is a pressure washer, built to order in this specification.
| Stock reference | Z10039 |
|---|---|
| Condition | New, built to order |
| Machine type | Pressure Washers |
| Power | Hot Water Pressure Washers |
2026 KARCHER HDS 9/20-4 M *EU-I
This new Kärcher HDS 9/20-4 M is a pressure washer, built to order in this specification.
| Stock reference | Z10037 |
|---|---|
| Condition | New, built to order |
| Machine type | Pressure Washers |
| Power | Hot Water Pressure Washers |

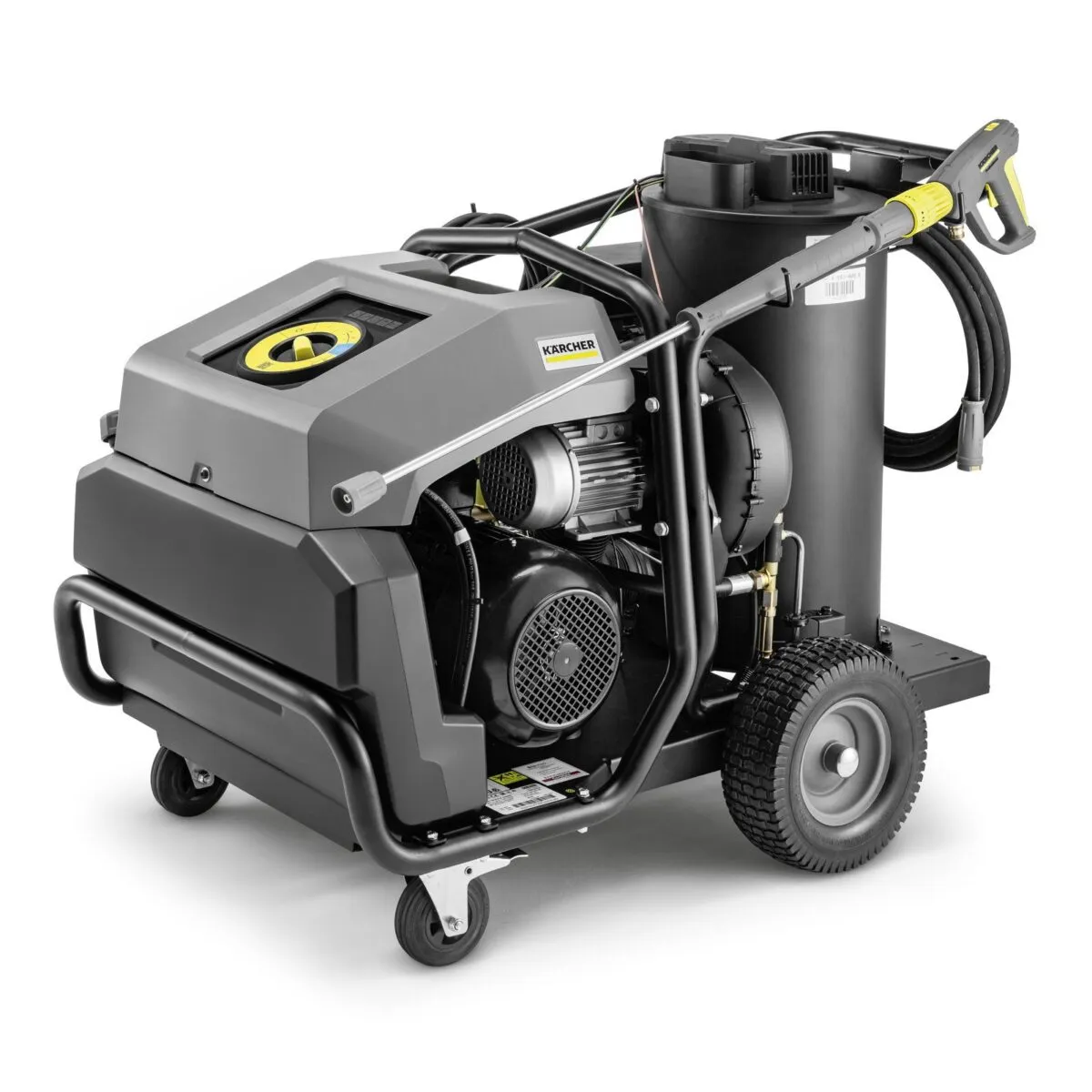

2026 KARCHER HDS 18/18-4 S Classic *EU-I
This new Kärcher HDS 18/18-4 S Classic is a pressure washer, built to order in this specification.
| Stock reference | Z10042 |
|---|---|
| Condition | New, built to order |
| Machine type | Pressure Washers |
| Power | Hot Water Pressure Washers |
2026 KARCHER HDS 10/21-4 M Classic *EU-I
This new Kärcher HDS 10/21-4 M Classic is a pressure washer, built to order in this specification.
| Stock reference | Z10038 |
|---|---|
| Condition | New, built to order |
| Machine type | Pressure Washers |
| Power | Hot Water Pressure Washers |
2026 KARCHER HDS 9/20-4 M Classic *EU-I
This new Kärcher HDS 9/20-4 M Classic is a pressure washer, built to order in this specification.
| Stock reference | Z10036 |
|---|---|
| Condition | New, built to order |
| Machine type | Pressure Washers |
| Power | Hot Water Pressure Washers |

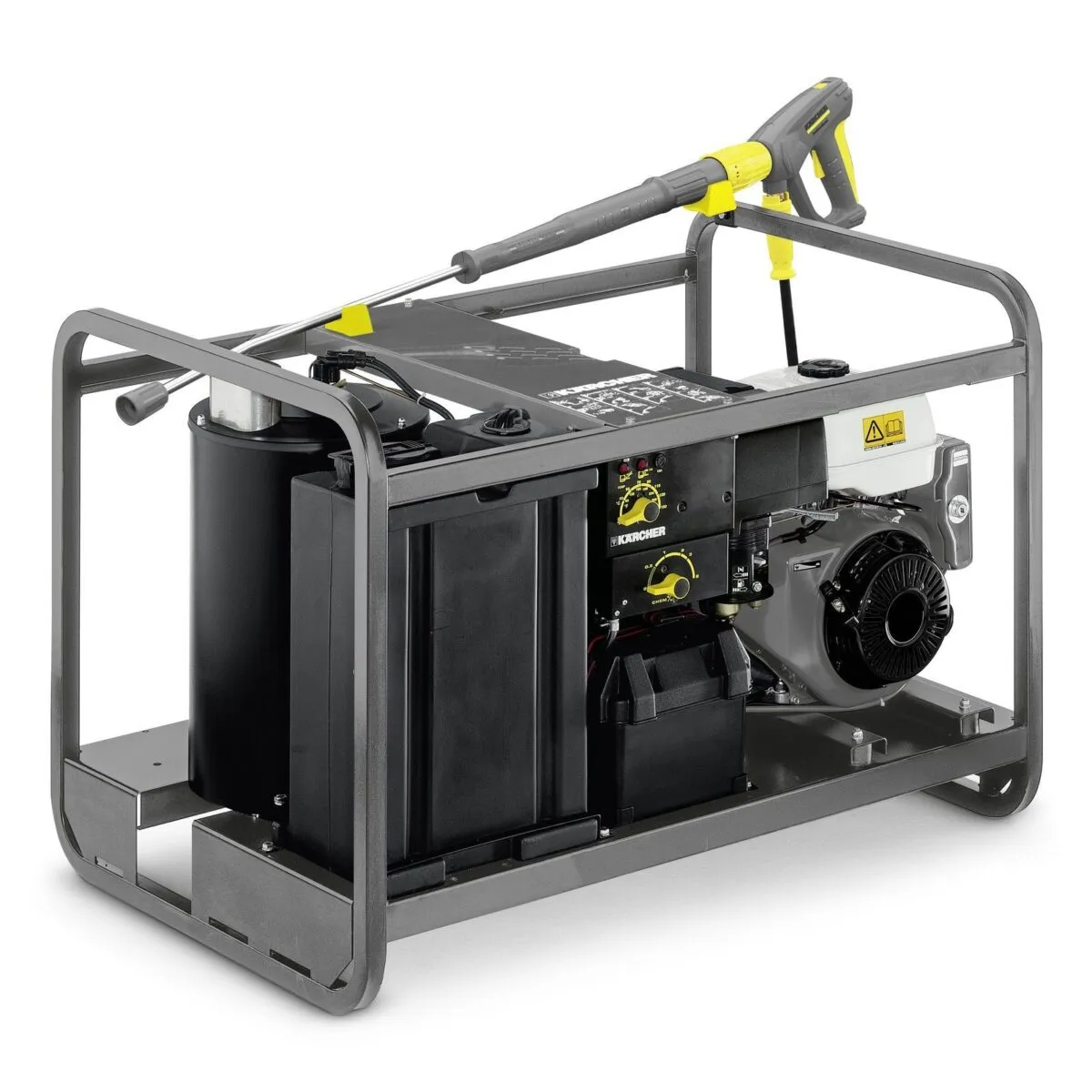

2026 KARCHER HDS 1000 Be
This new Kärcher HDS 1000 Be is a pressure washer, built to order in this specification.
| Stock reference | Z10048 |
|---|---|
| Condition | New, built to order |
| Machine type | Pressure Washers |
| Power | Hot Water Pressure Washers |

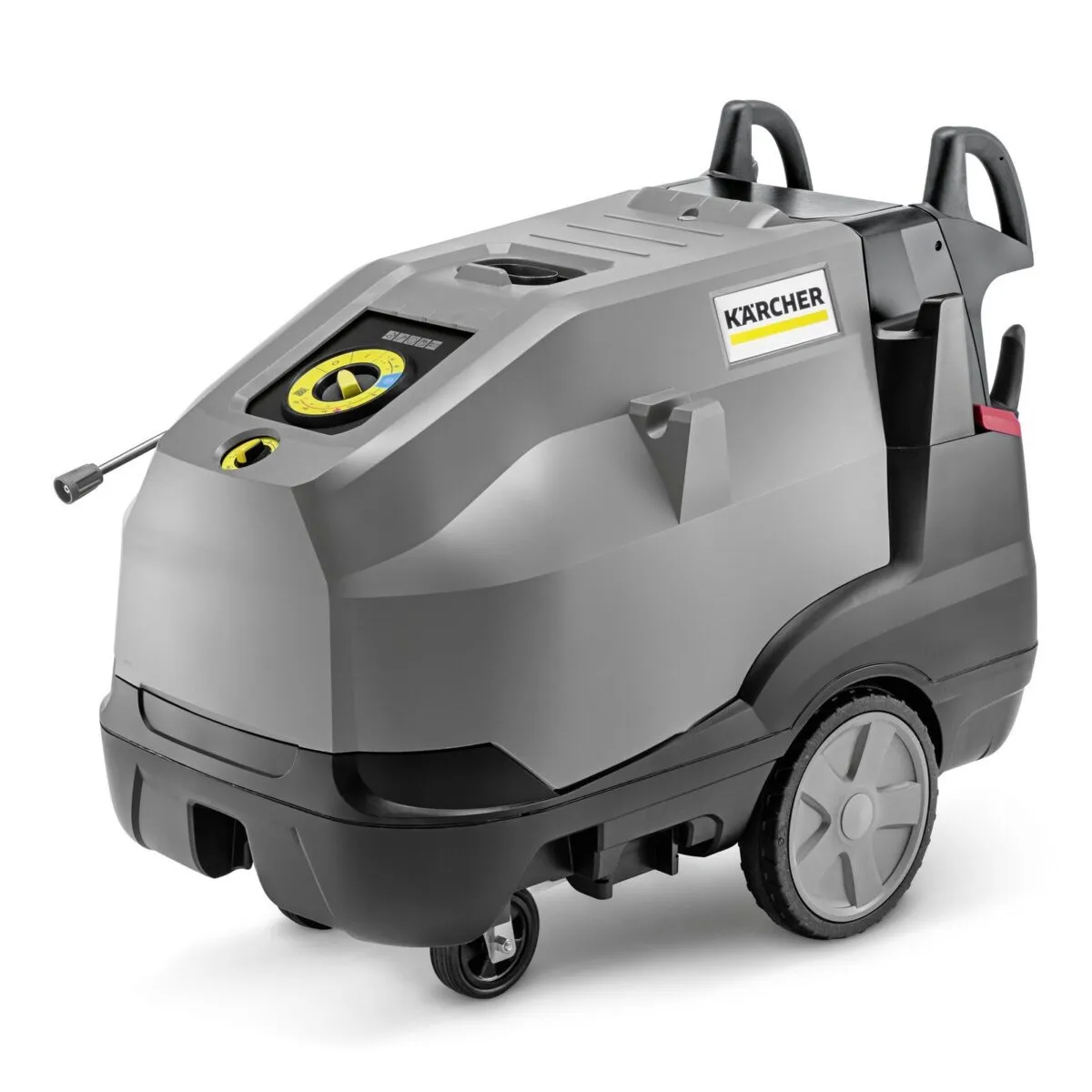

2026 KARCHER HDS 13/20-4 S *EU-I
This new Kärcher HDS 13/20-4 S is a pressure washer, built to order in this specification.
| Stock reference | Z10041 |
|---|---|
| Condition | New, built to order |
| Machine type | Pressure Washers |
| Power | Hot Water Pressure Washers |

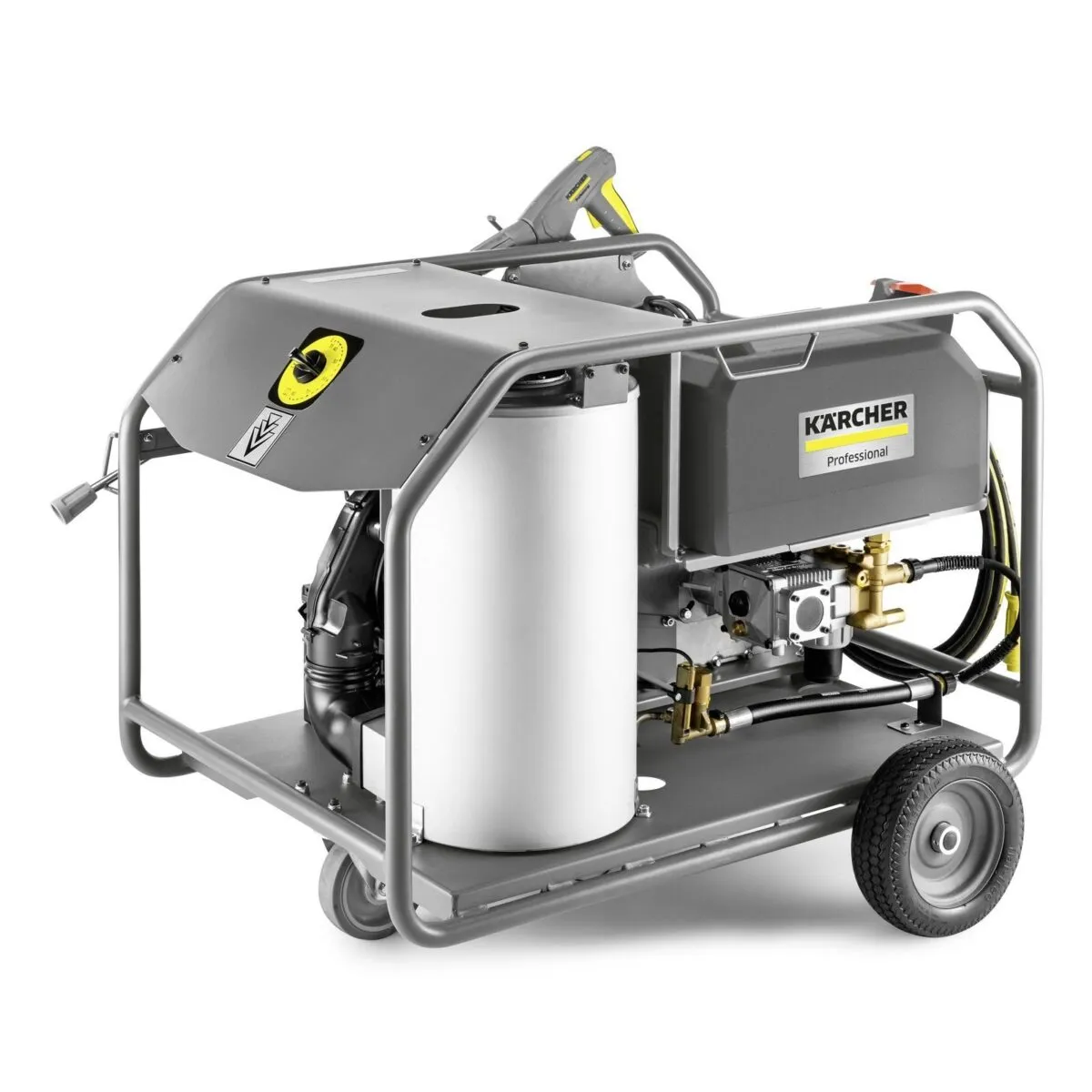

2026 KARCHER HDS 8/20 D *EU
This new Kärcher HDS 8/20 D is a pressure washer, built to order in this specification.
| Stock reference | Z10046 |
|---|---|
| Condition | New, built to order |
| Machine type | Pressure Washers |
| Power | Hot Water Pressure Washers |
2026 KARCHER HDS-E 8/16-4 M 36 KW
This new Kärcher HDS-E 8/16-4 M 36 KW is a pressure washer, built to order in this specification.
| Stock reference | Z10045 |
|---|---|
| Condition | New, built to order |
| Machine type | Pressure Washers |
| Power | Hot Water Pressure Washers |
2026 KARCHER HDS-E 8/16-4 M 12KW
This new Kärcher HDS-E 8/16-4 M 12KW is a pressure washer, built to order in this specification.
| Stock reference | Z10043 |
|---|---|
| Condition | New, built to order |
| Machine type | Pressure Washers |
| Power | Hot Water Pressure Washers |
2026 KARCHER HDS-E 8/16-4 M 24 KW
This new Kärcher HDS-E 8/16-4 M 24 KW is a pressure washer, built to order in this specification.
| Stock reference | Z10044 |
|---|---|
| Condition | New, built to order |
| Machine type | Pressure Washers |
| Power | Hot Water Pressure Washers |
