STILL FXV stackers and FXH pallet trucks, and the earlier FXD double stacker

Long pallet runs and high-throughput stacking in warehouses, where the operator sits for the whole shift instead of walking or standing. STILL's seated FXV and FXH.

New on hire from £75 a week

STILL

The FXV / FXH / FXD at a glance

STILL’s FX trucks are the seated end of its warehouse range: the FXV is a ride-on stacker and the FXH a ride-on low-lift pallet truck, both supplied new. The operator sits, so they suit long runs and busy shifts, and the FXV and FXH 20/25 also come in a narrower N version, 820 mm wide against 970 mm for the standard truck.

Newspecifications listed to order
£75a week to hire, from (ex VAT)
1.4 - 3.3 trated capacity across the range

See what is new to order Ask about the FXV / FXH / FXD

New to order (21)

Specification

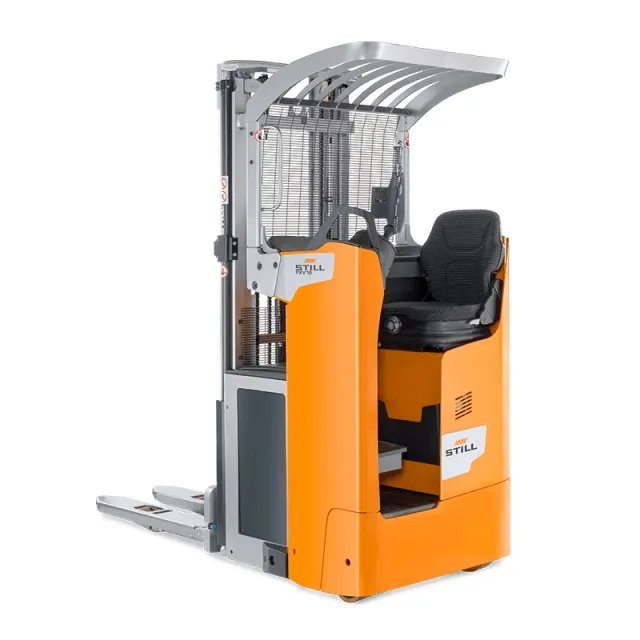

FXV stackers

The FXV 14 and 16 lift 1,400 and 1,600 kg at a 600 mm load centre for stacking and order picking. The standard FXV lifts to 6,216 mm and travels at up to 12 km/h empty; the FXV N lifts to 5,316 mm at 10 km/h. Versions with initial lift carry 2,000 kg as a pallet truck.

Specifications

Truck type	Seated electric warehouse truck: stacker (FXV), low-lift pallet truck (FXH), double stacker (FXD)
Models	FXV 14, 16 (and N); FXH 20, 25 (and N); FXH 33; earlier FXD 20, FXD 20 N (used)
Rated capacity	1,400 / 1,600 kg at 600 mm (FXV); 2,000 kg at 600 mm / 2,500 kg at 800 mm (FXH 20 / 25); 3,300 kg at 1,800 mm (FXH 33); 2 x 1,000 kg (FXD)
Battery	24 V lead-acid or lithium-ion (FXV, FXH, FXD); 48 V (FXH 33)
Maximum lift height	6,216 mm (FXV); 5,316 mm (FXV N); 2,844 / 2,344 mm (FXD 20 / 20 N)
Travel speed, laden / unladen	10 / 12 km/h (FXV, FXH, FXD); 10 / 10 km/h (FXV N, FXD 20 N); 20 / 20 km/h (FXH 33)
Width	970 mm (standard); 820 mm (N); 1,000 mm (FXH 33)

Specifications are for a new machine. Each used machine in stock is listed below with its own.

New to order

New STILL FXV / FXH / FXD built to order

New specifications ordered from the factory, built to the capacity, mast and options you choose. New machinery lead times are as low as 2-3 weeks.

New STILL FXV / FXH / FXD built to order
Machine	Capacity	Lift height	Mast	Hire or price	Ask
New2026 STILL FXH 25New to order · Ref Z0439	2500 kg	125 mm	–	£95 a week	Ask about this
New2026 STILL FXD 20NNew to order · Ref Z0062	2000 kg	1844 mm	2-Stage Limited Free Lift	£75 a week	Ask about this
New2026 STILL FXH 20New to order · Ref Z0045	2000 kg	125 mm	–	£75 a week	Ask about this
New2026 STILL FXV 14New to order · Ref Z0442	1400 kg	3744 mm	2-Stage Full Free Lift	£75 a week	Ask about this
New2026 STILL FXV 16New to order · Ref Z0445	1600 kg	6216 mm	Triplex Full Free Lift	£75 a week	Ask about this
New2026 STILL FXD 20New to order · Ref Z0432	2000 kg	2844 mm	2-Stage Full Free Lift	£75 a week	Ask about this
New2026 STILL FXV 16 NNew to order · Ref Z0450	1600 kg	1844 mm	2-Stage Limited Free Lift	£75 a week	Ask about this
New2026 STILL FXV 16 NNew to order · Ref Z0449	1600 kg	5316 mm	Triplex Full Free Lift	£75 a week	Ask about this
New2026 STILL FXH 25 NNew to order · Ref Z0440	2500 kg	125 mm	–	£95 a week	Ask about this
New2026 STILL FXH 33New to order · Ref Z0047	3300 kg	115 mm	–	£125 a week	Ask about this
New2026 STILL FXV 16New to order · Ref Z0447	1600 kg	1844 mm	2-Stage Limited Free Lift	£75 a week	Ask about this
New2026 STILL FXV 16 NNew to order · Ref Z0448	1600 kg	3744 mm	2-Stage Full Free Lift	£75 a week	Ask about this
New2026 STILL FXV 16New to order · Ref Z0446	1600 kg	3744 mm	2-Stage Full Free Lift	£75 a week	Ask about this
New2026 STILL FXV 14New to order · Ref Z0441	1400 kg	6216 mm	Triplex Full Free Lift	£75 a week	Ask about this
New2026 STILL FXH 20 NNew to order · Ref Z0046	2000 kg	125 mm	–	£75 a week	Ask about this
New2026 STILL FXD 20NNew to order · Ref Z0438	2000 kg	2344 mm	2-Stage Full Free Lift	£75 a week	Ask about this
New2026 STILL FXD 20New to order · Ref Z0063	2000 kg	1844 mm	2-Stage Limited Free Lift	£75 a week	Ask about this
New2026 STILL FXV 14 NNew to order · Ref Z0053	1400 kg	1844 mm	2-Stage Limited Free Lift	£75 a week	Ask about this
New2026 STILL FXV 14New to order · Ref Z0054	1400 kg	1844 mm	2-Stage Limited Free Lift	£75 a week	Ask about this
New2026 STILL FXV 14 NNew to order · Ref Z0444	1400 kg	5316 mm	Triplex Full Free Lift	£75 a week	Ask about this
New2026 STILL FXV 14 NNew to order · Ref Z0443	1400 kg	3744 mm	2-Stage Full Free Lift	£75 a week	Ask about this

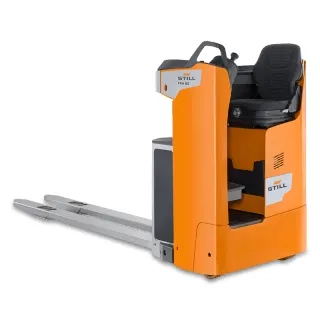

FXH pallet trucks

FXH 20 (and 20 N): 2,000 kg at a 600 mm load centre, for pallets in small spaces, at up to 12 km/h.
FXH 25 (and 25 N): 2,500 kg at an 800 mm load centre, for longer pallets, at the same speed.
FXH 33: 3,300 kg at an 1,800 mm load centre on long, rounded forks that lift up to three pallets at once, at 20 km/h on a 48-volt battery.

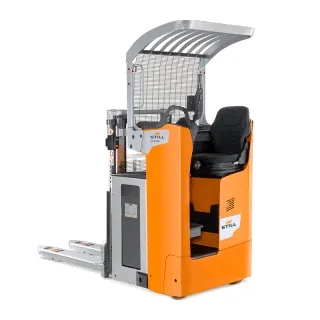

The earlier FXD double stacker

The FXD 20 and FXD 20 N are an earlier ride-on double stacker that we may hold used. They move a pair of 1,000 kg pallets together, stacked on the forks and support arms, which makes them quick for non-stackable and pressure-sensitive goods such as food.

Checking a used FX truck

Check the forks for bends, cracks and wear, the mast roller rails for a visible layer of grease and the chains for even tension, and look for leaks and damage to the guard grille. On the FXH, look at the tyre treads for wear. Our engineers inspect every used STILL truck before sale.

Supply, hire and training

As STILL’s exclusive dealer and distributor we supply the FXV, FXH and FXH 33 new. Warehouse trucks are available on hire and lease; ask us which models are available now. We run ride-on pallet truck training at our centres and on customers’ sites.

See all hire stock

Tell us the load, the lift height and the site, and we will say which FXV / FXH / FXD fits, new, used or on hire.

Ask about the FXV / FXH / FXD Or call 01708 861 414

Questions about the FXV / FXH / FXD

The N is narrower, 820 mm against 970 mm, with a lower top lift (5,316 mm against 6,216 mm) and speed.

Moving up to three pallets at once on long, rounded forks: 3,300 kg at an 1,800 mm load centre, at 20 km/h.

Yes. The FXV, FXH and FXD are all ride-on trucks with a seat.

It moves two 1,000 kg pallets in one trip, stacked on the forks and support arms. It is an earlier model that we sell used when we have one.

Ride-on warehouse trucks can be hired or leased; ask which models are free at the moment. The FXV and FXH are supplied new, and used FX trucks, including the FXD, when we have them.

Yes. We run ride-on pallet truck training at our centres and on customers' sites.
