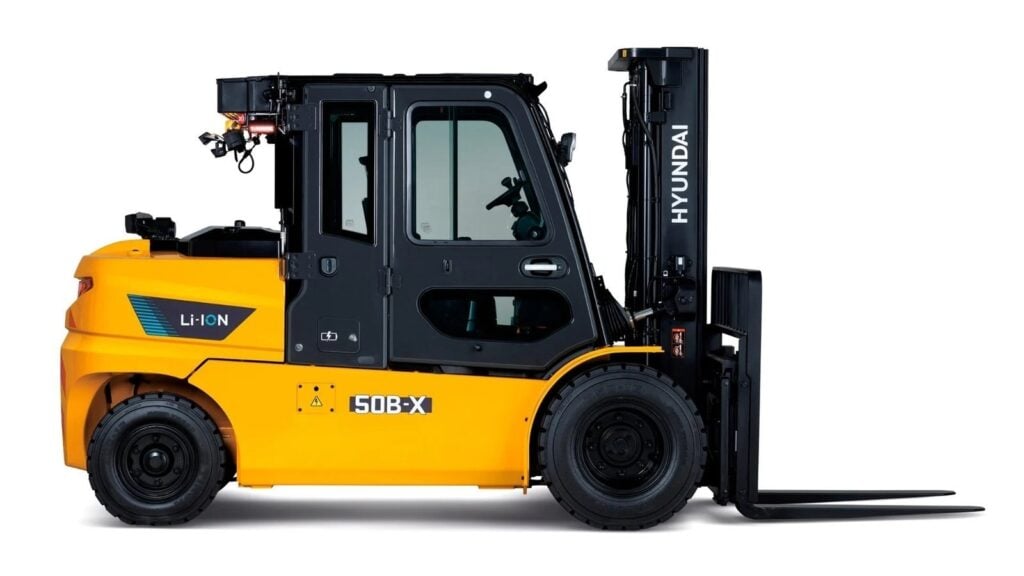

Hyundai B-X high-voltage electric forklifts, 4 to 9 tonnes
Timber yards, recycling sites, ports and heavy manufacturing that want to replace a heavy diesel truck with a zero-emission electric. Hyundai's B-X, 4 to 9 tonnes.
Hyundai
The B-X at a glance
The B-X is Hyundai’s heavy electric forklift: a 309 to 348 volt lithium-ion truck from 4 to 9 tonnes, built to do the work of a heavy diesel with no exhaust. It shares its chassis, front axle, mast and cab with Hyundai’s diesel trucks, so it is built for the yard rather than the warehouse floor.
- Newspecifications listed to order
- 4.0 - 9.0 trated capacity across the range
Specification
Two sizes
- 40B-X to 55B-X: 4,000 to 5,500 kg. A 50B-X carries 5,000 kg at a 600 mm load centre, lifts to 6,482 mm on the tallest mast and travels at up to 26 km/h.
- 60B-X to 90B-X and 80B-XL: 6,000 to 9,000 kg. The 80B-XL is the long-load version, rated at 8,000 kg at a 900 mm load centre, and lifts to 7,535 mm.
Both sizes run on pneumatic tyres, with twin front wheels on the heavier trucks.
Specifications
| Truck type | High-voltage lithium-ion counterbalance forklift, pneumatic tyres |
|---|---|
| Models | 40B-X, 45B-X, 50B-X, 55B-X; 60B-X, 70B-X, 80B-X, 80B-XL, 90B-X |
| Rated capacity | 4,000 - 9,000 kg at 600 mm (55B-X at 500 mm); 80B-XL 8,000 kg at 900 mm |
| System voltage | 309 - 348 V, lithium iron phosphate |
| Motors | 65 kW drive, 33 kW lift (50B-X); 75 kW drive, 2 x 33 kW lift (80B-XL) |
| Maximum lift height | 6,482 mm (50B-X); 7,535 mm (80B-XL) |
| Travel speed, laden / unladen | 25.5 / 26 km/h (50B-X); 28 / 33 km/h (80B-XL) |
| Turning radius | 3,054 mm (50B-X); 3,620 mm (80B-XL) |
| Protection | IP67 battery, drive and hydraulic motors; IP69K vehicle control unit |
Specifications are for a new machine. Each used machine in stock is listed below with its own.
In stock
B-X in stock now
New specifications to order. Each used machine is one specific truck with its own year, mast and battery; open one for its photos and full specification.
Compare the new specifications side by side
These are the configurations listed for order or hire new. They differ by capacity, mast and lift height; the full build is confirmed at quotation.
| Machine | Year | Capacity | Lift height | Mast | Power | Hire from |
|---|---|---|---|---|---|---|
| New 40B-X Z9055 | New | 4,000 kg | 2,720 mm | 2-Stage Limited Free Lift | Electric | Call |
| New 40B-X Z9056 | New | 4,000 kg | 6,540 mm | Triplex Full Free Lift | Electric | Call |
| New 45B-X Z9057 | New | 4,500 kg | 2,720 mm | 2-Stage Limited Free Lift | Electric | Call |
| New 45B-X Z9058 | New | 4,500 kg | 6,540 mm | Triplex Full Free Lift | Electric | Call |
| New 50B-X Z4277 | New | 5,000 kg | - | - | Electric | Call |
| New 55B-X Z9059 | New | 5,500 kg | 2,720 mm | 2-Stage Limited Free Lift | Electric | Call |
| New 55B-X Z9060 | New | 5,500 kg | 6,540 mm | Triplex Full Free Lift | Electric | Call |
| New 60B-X Z9061 | New | 6,000 kg | 3,030 mm | 2-Stage Limited Free Lift | Electric | Call |
| New 60B-X Z9062 | New | 6,000 kg | 7,650 mm | Triplex Full Free Lift | Electric | Call |
| New 70B-X Z9063 | New | 7,000 kg | 3,030 mm | 2-Stage Limited Free Lift | Electric | Call |
| New 70B-X Z9064 | New | 7,000 kg | 7,650 mm | Triplex Full Free Lift | Electric | Call |
| New 80B-XL Z4279 | New | 8,000 kg | - | - | Electric | Call |
| New 80B-X Z9065 | New | 8,000 kg | 3,030 mm | 2-Stage Limited Free Lift | Electric | Call |
| New 80B-X Z9066 | New | 8,000 kg | 7,650 mm | Triplex Full Free Lift | Electric | Call |
| New 90B-X Z9067 | New | 9,000 kg | 3,030 mm | 2-Stage Limited Free Lift | Electric | Call |
| New 90B-X Z9068 | New | 9,000 kg | 7,650 mm | Triplex Full Free Lift | Electric | Call |
Charging and runtime
The battery is lithium iron phosphate with its own thermal management and needs no daily or weekly maintenance. With the 93 kWh battery and a 40 kW charger, a charge takes about two hours and gives up to 11 hours of work. The battery, drive motor and hydraulic motor are sealed to IP67, and the vehicle control unit to IP69K, for wet and dusty yards.
Where it works
The B-X works in timber yards, recycling, ports, steel, construction materials and heavy manufacturing, where sites have run diesels because of the loads and now want lower noise and no fumes around people.
Before you buy
This is a high-voltage machine, isolated for servicing through a manual service disconnect plug, so servicing is a job for our engineers. The display shows battery status, warnings and the next maintenance interval, and factory telematics can report on the truck remotely. Our engineers inspect every used B-X before it is sold.
Supply, hire and training
We supply the B-X new as Hyundai’s exclusive dealer and distributor, sized to your loads. Heavy forklifts are available on hire and lease; ask us which models are available now. We run counterbalance forklift training at our centres and on customers’ sites.
Tell us the load, the lift height and the site, and we will say which B-X fits, new, used or on hire.
