Warehouses storing pallets high in narrow aisles, where a seated reach truck packs more racking into the same floor. Hyundai's BRJ-9, 1.4 to 2.5 tonnes.
Hyundai

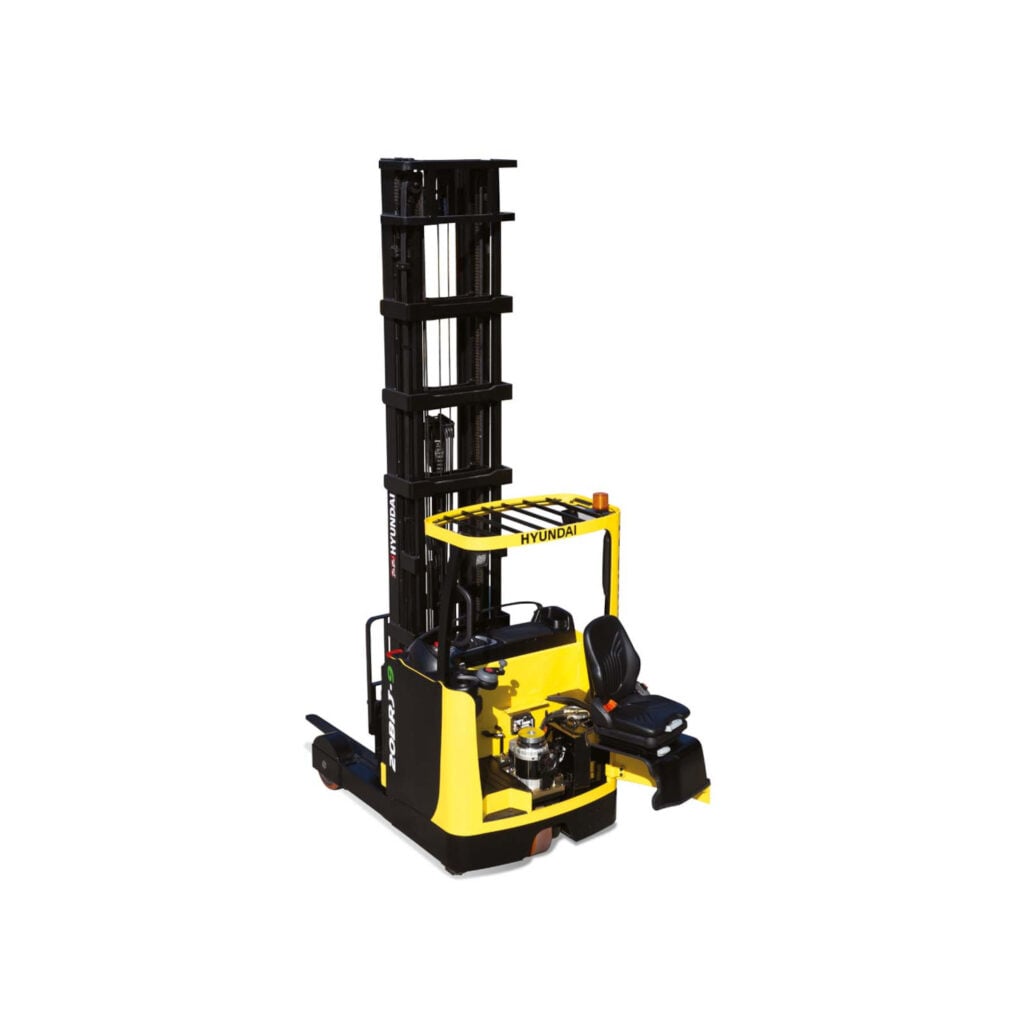

The BRJ-9 is Hyundai’s seated reach truck. The mast reaches forward to pick and place the pallet and pulls back inside the wheelbase to travel, so the truck works in far narrower aisles than a counterbalance forklift. It suits warehouses that need dense pallet storage or fast put-away and retrieval.
Specification
Every BRJ-9 runs on 48 volts with AC motors: a 7.5 kW drive and a 14 kW lift motor. It travels at 14 km/h unladen, and with a 1000 x 1200 pallet crossways the working aisle is from 2,749 mm on the 14BRJ-9 to 2,872 mm on the 25BRJ-9.
| Truck type | Seated electric reach truck |
|---|---|
| Models | 14BRJ-9, 16BRJ-9, 20BRJ-9, 25BRJ-9; later 16BRJ-9B, 20BRJ-9B, 20BRJ-9BH |
| Rated capacity | 1,400 / 1,600 / 2,000 / 2,500 kg at 600 mm load centre (BRJ-9); 1,600 - 2,000 kg (BRJ-9B) |
| Battery | 48 V lead-acid; lithium-ion option on the BRJ-9B |
| Motors | 7.5 kW AC drive; 14 kW lift (BRJ-9) |
| Maximum lift height | 10,506 mm (14/16BRJ-9); 12,007 mm (20/25BRJ-9); 9,500 mm (BRJ-9B); 13,500 mm (20BRJ-9BH) |
| Reach stroke | 504 / 554 / 544 / 692 mm (14 / 16 / 20 / 25BRJ-9) |
| Aisle width, 1000 x 1200 crossways | 2,749 - 2,872 mm (BRJ-9) |
| Travel speed, unladen | 14 km/h (BRJ-9) |
Specifications are for a new machine. Each used machine in stock is listed below with its own.
New to order
New specifications ordered from the factory, built to the capacity, mast and options you choose. New machinery lead times are as low as 2-3 weeks.
| Machine | Capacity | Lift height | Mast | Hire or price | Ask |
|---|---|---|---|---|---|
 New2026 HYUNDAI 16BRJ-9B | 1600 kg | 4500 mm | 2-Stage Limited Free Lift | Call for a price | Ask about this |
 New2026 HYUNDAI 20BRJ-9BH | 2000 kg | 13500 mm | Triplex Full Free Lift | Call for a price | Ask about this |
 New2026 HYUNDAI 16BRJ-9 | 1600 kg | 10506 mm | Triplex Full Free Lift | £125 a week | Ask about this |
 New2026 HYUNDAI 20BRJ-9B | 2000 kg | 4500 mm | 2-Stage Limited Free Lift | Call for a price | Ask about this |
 New2026 HYUNDAI 20BRJ-9B | 2000 kg | 13500 mm | Triplex Full Free Lift | Call for a price | Ask about this |
 New2026 HYUNDAI 25BRJ-9 | 2500 kg | 12007 mm | Triplex Full Free Lift | £135 a week | Ask about this |
 New2026 HYUNDAI 20BRJ-9 | 2000 kg | 12007 mm | Triplex Full Free Lift | £135 a week | Ask about this |
 New2026 HYUNDAI 20BRJ-9BH | 2000 kg | 4500 mm | 2-Stage Limited Free Lift | Call for a price | Ask about this |
 New2026 HYUNDAI 16BRJ-9B | 1600 kg | 13500 mm | Triplex Full Free Lift | Call for a price | Ask about this |
 New2026 HYUNDAI 14BRJ-9 | 1400 kg | 10506 mm | Triplex Full Free Lift | £125 a week | Ask about this |
 NewHYUNDAI 16BRJ-9 | 1600 kg | 6540 mm | Triple | Call for a price | Ask about this |
Curve control slows the truck on corners, traction speed drops automatically once the mast rises above free lift, and an anti roll-back system holds it on slopes. A load indicator, camera, automatic tilt levelling and a fork height preselector are options, and a cold store version is available.
The later 16BRJ-9B and 20BRJ-9B cover 1,600 to 2,000 kg with masts to 9,500 mm, and the 2,000 kg 20BRJ-9BH is the extra-high-lift model, reaching 13,500 mm. They add a lithium-ion option, selectable 180° or 360° steering and electro-hydraulic proportional controls.
The display records operation errors, system faults, battery level and hours, so read it first. The controller logs faults and protects against low and high voltage and overheating. Under the hinged hood, check the fuse box, battery disconnect and emergency switch, then the mast, chains and reach carriage. Our engineers inspect every used BRJ-9 before it is sold.
As Hyundai’s exclusive dealer and distributor we supply the BRJ-9B new, matched to your racking height. Reach trucks are available on hire and lease; ask us which models are available now. We run reach truck training at our centres and on customers’ sites.
Tell us the load, the lift height and the site, and we will say which BRJ-9 fits, new, used or on hire.
2026 HYUNDAI 16BRJ-9
This new Hyundai 16BRJ-9 is a reach truck, built to order in this specification. It is rated for 1,600 kg and lifts to 10,506 mm. It has a triplex full free lift mast, a closed height of 4,174 mm and 1,200 mm forks. It is electric.
| Stock reference | Z0192 |
|---|---|
| Condition | New, built to order |
| Machine type | Reach Truck |
| Power | Electric |
| Rated capacity | 1,600 kg |
| Lift height | 10,506 mm |
| Closed height | 4,174 mm |
| Mast | Triplex Full Free Lift |
| Fork length | 1,200 mm |
2026 HYUNDAI 25BRJ-9
This new Hyundai 25BRJ-9 is a reach truck, built to order in this specification. It is rated for 2,500 kg and lifts to 12,007 mm. It has a triplex full free lift mast, a closed height of 4,722 mm and 1,200 mm forks. It is electric.
| Stock reference | Z0194 |
|---|---|
| Condition | New, built to order |
| Machine type | Reach Truck |
| Power | Electric |
| Rated capacity | 2,500 kg |
| Lift height | 12,007 mm |
| Closed height | 4,722 mm |
| Mast | Triplex Full Free Lift |
| Fork length | 1,200 mm |
2026 HYUNDAI 20BRJ-9
This new Hyundai 20BRJ-9 is a reach truck, built to order in this specification. It is rated for 2,000 kg and lifts to 12,007 mm. It has a triplex full free lift mast, a closed height of 4,722 mm and 1,200 mm forks. It is electric.
| Stock reference | Z0193 |
|---|---|
| Condition | New, built to order |
| Machine type | Reach Truck |
| Power | Electric |
| Rated capacity | 2,000 kg |
| Lift height | 12,007 mm |
| Closed height | 4,722 mm |
| Mast | Triplex Full Free Lift |
| Fork length | 1,200 mm |
2026 HYUNDAI 14BRJ-9
This new Hyundai 14BRJ-9 is a reach truck, built to order in this specification. It is rated for 1,400 kg and lifts to 10,506 mm. It has a triplex full free lift mast, a closed height of 4,174 mm and 1,200 mm forks. It is electric.
| Stock reference | Z0191 |
|---|---|
| Condition | New, built to order |
| Machine type | Reach Truck |
| Power | Electric |
| Rated capacity | 1,400 kg |
| Lift height | 10,506 mm |
| Closed height | 4,174 mm |
| Mast | Triplex Full Free Lift |
| Fork length | 1,200 mm |
2026 HYUNDAI 16BRJ-9B
This new Hyundai 16BRJ-9B is a reach truck, built to order in this specification. It is rated for 1,600 kg and lifts to 4,500 mm. It has a 2-stage limited free lift mast. It is electric.
| Stock reference | Z9121 |
|---|---|
| Condition | New, built to order |
| Machine type | Reach Truck |
| Power | Electric |
| Rated capacity | 1,600 kg |
| Lift height | 4,500 mm |
| Mast | 2-Stage Limited Free Lift |
2026 HYUNDAI 20BRJ-9B
This new Hyundai 20BRJ-9B is a reach truck, built to order in this specification. It is rated for 2,000 kg and lifts to 4,500 mm. It has a 2-stage limited free lift mast. It is electric.
| Stock reference | Z9123 |
|---|---|
| Condition | New, built to order |
| Machine type | Reach Truck |
| Power | Electric |
| Rated capacity | 2,000 kg |
| Lift height | 4,500 mm |
| Mast | 2-Stage Limited Free Lift |
2026 HYUNDAI 20BRJ-9B
This new Hyundai 20BRJ-9B is a reach truck, built to order in this specification. It is rated for 2,000 kg and lifts to 13,500 mm. It has a triplex full free lift mast. It is electric.
| Stock reference | Z9124 |
|---|---|
| Condition | New, built to order |
| Machine type | Reach Truck |
| Power | Electric |
| Rated capacity | 2,000 kg |
| Lift height | 13,500 mm |
| Mast | Triplex Full Free Lift |
2026 HYUNDAI 16BRJ-9B
This new Hyundai 16BRJ-9B is a reach truck, built to order in this specification. It is rated for 1,600 kg and lifts to 13,500 mm. It has a triplex full free lift mast. It is electric.
| Stock reference | Z9122 |
|---|---|
| Condition | New, built to order |
| Machine type | Reach Truck |
| Power | Electric |
| Rated capacity | 1,600 kg |
| Lift height | 13,500 mm |
| Mast | Triplex Full Free Lift |
2026 HYUNDAI 20BRJ-9BH
This new Hyundai 20BRJ-9BH is a reach truck, built to order in this specification. It is rated for 2,000 kg and lifts to 13,500 mm. It has a triplex full free lift mast. It is electric.
| Stock reference | Z9126 |
|---|---|
| Condition | New, built to order |
| Machine type | Reach Truck |
| Power | Electric |
| Rated capacity | 2,000 kg |
| Lift height | 13,500 mm |
| Mast | Triplex Full Free Lift |
2026 HYUNDAI 20BRJ-9BH
This new Hyundai 20BRJ-9BH is a reach truck, built to order in this specification. It is rated for 2,000 kg and lifts to 4,500 mm. It has a 2-stage limited free lift mast. It is electric.
| Stock reference | Z9125 |
|---|---|
| Condition | New, built to order |
| Machine type | Reach Truck |
| Power | Electric |
| Rated capacity | 2,000 kg |
| Lift height | 4,500 mm |
| Mast | 2-Stage Limited Free Lift |
