STILL FM-X reach truck

The FM-X is STILL's seated reach truck, rated from 1,000 to 2,500 kg, for racking up to 13 metres. We sell it new and used, hire it and service it.

Hire from £100 a week

STILL

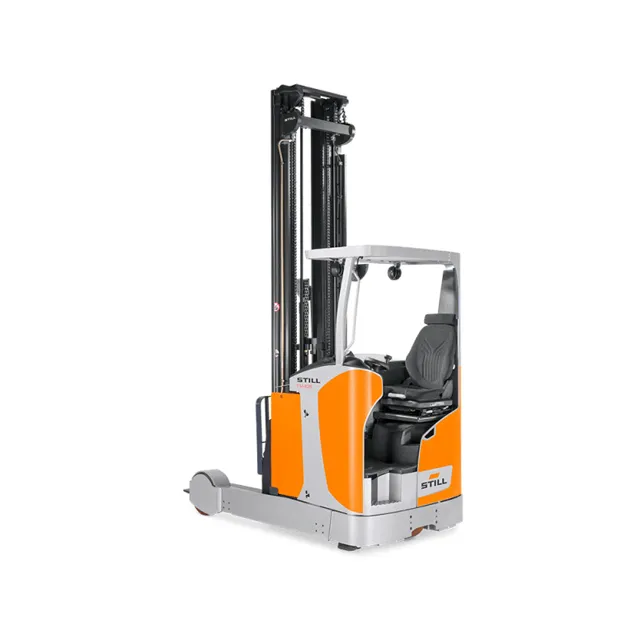

The FM-X at a glance

The FM-X is a STILL seated reach truck for racked warehouses. The range runs from the FM-X 10 (1,000 kg) to the FM-X 25 (2,500 kg). Lift height goes up to 13 metres, with a residual capacity of 1,000 kg at that height, a travel speed of 14 km/h and battery capacities from 360 Ah to 930 Ah on a 48-volt system.

Usedmachines in stock now
Newspecifications listed to order
£95a week to hire, from (ex VAT)
1.0 - 2.5 trated capacity across the range

See what is in stock Ask about the FM-X

In stock now (18)New to order (27)

Specification

How the FM-X models differ

The number is the rated capacity in hundreds of kilograms. The letters after it give the chassis, and with it the truck’s overall width:

No letter: 1,270 mm, on every capacity.
N: 1,140 mm, on the FM-X 10 to 20.
W: 1,470 mm, on the FM-X 14 to 25.
EW: 1,670 mm, on the FM-X 14 to 25.

The FM-X 20 HD is rated for 2,200 kg, and iGo models are STILL’s automated trucks. The FM-X SE is a separate STILL model and is not included on this page. Used trucks are often listed as “FMX 14” without the hyphen; they are the same range.

Specifications

Truck type	Reach truck, seated
Models	FM-X 10, 12, 14, 17, 20, 25; N, W, EW chassis; FM-X 20 HD (2,200 kg); iGo automated
Rated capacity	1,000 - 2,500 kg
Maximum lift height	Up to 13 m, 1,000 kg residual capacity
Chassis width	Overall width: standard 1,270 mm; N 1,140 mm; W 1,470 mm; EW 1,670 mm
Battery	48 V, 360 - 930 Ah; lithium-ion available
Travel speed	14 km/h
Lifting speed	Up to 0.50 m/s

Specifications are for a new machine. Each used machine in stock is listed below with its own.

In stock

FM-X in stock now

Actual machines in our yard, used and new, each with its own photos and specification. Open one for the details.

FM-X in stock now
Machine	Capacity	Lift height	Mast	Hire or price	Ask

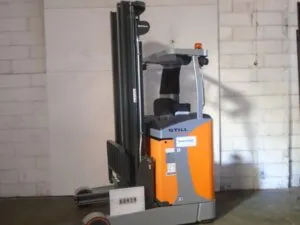

STILL FMX 14Used 2020 · Ref A8929	1,400 kg	6,800 mm	Triple	£100 a week	Ask about this
STILL FMX 14Used 2020 · Ref A8920	1,400 kg	6,200 mm	Triple	£100 a week	Ask about this
STILL FMX 14Used 2020 · Ref A10393	1,400 kg	7,700 mm	Triple	£100 a week	Ask about this

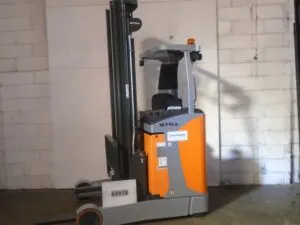

STILL FMX 14Used 2020 · Ref A8928	1,400 kg	6,820 mm	Triple	£100 a week	Ask about this

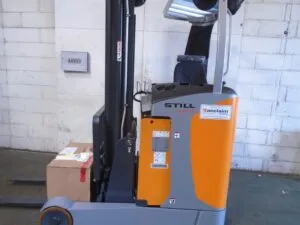

STILL FMX 14Used 2020 · Ref A8921	1,400 kg	6,200 mm	Triple	£100 a week	Ask about this
STILL FMX 14Used 2019 · Ref A10519	1,400 kg	8,040 mm	Triple	£100 a week	Ask about this
STILL FMX 14Used 2017 · Ref A10176	1,400 kg	8,600 mm	Triple	£100 a week	Ask about this
STILL FMX 17Used 2016 · Ref A10099	1,700 kg	6,500 mm	Triple	£130 a week	Ask about this
STILL FMX 20Used 2015 · Ref A8824	2,000 kg	10,700 mm	Triple	£130 a week	Ask about this
STILL FMX 17Used 2014 · Ref A9686	1,700 kg	8,300 mm	Triple	£130 a week	Ask about this
STILL FMX 14Used 2013 · Ref A9683	1,400 kg	8,335 mm	Triple	£100 a week	Ask about this
STILL FMX 17Used 2011 · Ref STR8448	1,700 kg	6,860 mm	Triple	£130 a week	Ask about this
STILL FMX 17Used 2008 · Ref A6404	1,700 kg	8,100 mm	Triple	£130 a week	Ask about this
STILL FMX 14Used 2008 · Ref A6137	1,400 kg	8,790 mm	Triple	£100 a week	Ask about this

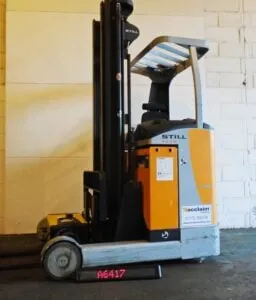

STILL FMX 14Used 2008 · Ref A6417	1,400 kg	6,200 mm	Triple	£100 a week	Ask about this
STILL FMX 14Used 2008 · Ref A6136	1,400 kg	8,785 mm	Triple	£100 a week	Ask about this
STILL FMX 14Used 2016 · Ref A10632	–	–	–	Call for a price	Ask about this
STILL FMX 17Used 2008 · Ref A6403	–	8,100 mm	Triple	Call for a price	Ask about this

New to order

New STILL FM-X built to order

New specifications ordered from the factory, built to the capacity, mast and options you choose. New machinery lead times are as low as 2-3 weeks.

New STILL FM-X built to order
Machine	Capacity	Lift height	Mast	Hire or price	Ask
New2026 STILL FM-X 25New to order · Ref Z0420	2500 kg	7800 mm	Triplex Full Free Lift	£195 a week	Ask about this
New2026 STILL FM-X 25New to order · Ref Z0419	2500 kg	12050 mm	Triplex Full Free Lift	£195 a week	Ask about this
New2026 STILL FM-X 20NNew to order · Ref Z0417	2000 kg	7500 mm	Triplex Full Free Lift	£175 a week	Ask about this
New2026 STILL FM-X 17New to order · Ref Z0385	1700 kg	4250 mm	Triplex Full Free Lift	£140 a week	Ask about this
New2026 STILL FM-X 10New to order · Ref Z0346	1000 kg	7000 mm	Triplex Full Free Lift	£95 a week	Ask about this
New2026 STILL FM-X 12New to order · Ref Z0376	1200 kg	5750 mm	Triplex Full Free Lift	£100 a week	Ask about this
New2026 STILL FM-X 14New to order · Ref Z0380	1400 kg	4250 mm	Triplex Full Free Lift	£125 a week	Ask about this
New2026 STILL FM-X 20HDNew to order · Ref Z0415	2200 kg	13000 mm	Triplex Full Free Lift	£195 a week	Ask about this
New2026 STILL FM-X 17NNew to order · Ref Z0387	1700 kg	6800 mm	Triplex Full Free Lift	£140 a week	Ask about this
New2026 STILL FM-X 14New to order · Ref Z0378	1400 kg	9800 mm	Triplex Full Free Lift	£125 a week	Ask about this
New2026 STILL FM-X 10New to order · Ref Z0347	1000 kg	5750 mm	Triplex Full Free Lift	£95 a week	Ask about this
New2026 STILL FM-X 17NNew to order · Ref Z0388	1700 kg	4250 mm	Triplex Full Free Lift	£140 a week	Ask about this
New2026 STILL FM-X 12New to order · Ref Z0377	1200 kg	4250 mm	Triplex Full Free Lift	£100 a week	Ask about this
New2026 STILL FM-X 14New to order · Ref Z0379	1400 kg	7100 mm	Triplex Full Free Lift	£125 a week	Ask about this
New2026 STILL FM-X 17NNew to order · Ref Z0386	1700 kg	11800 mm	Triplex Full Free Lift	£140 a week	Ask about this
New2026 STILL FM-X 25New to order · Ref Z0431	2500 kg	4080 mm	Triplex Full Free Lift	£195 a week	Ask about this
New2026 STILL FM-X 20New to order · Ref Z0394	2000 kg	7500 mm	Triplex Full Free Lift	£165 a week	Ask about this
New2026 STILL FM-X 20New to order · Ref Z0401	2000 kg	4080 mm	Triplex Full Free Lift	£165 a week	Ask about this
New2026 STILL FM-X 12New to order · Ref Z0375	1200 kg	7000 mm	Triplex Full Free Lift	£100 a week	Ask about this
New2026 STILL FM-X 20New to order · Ref Z0393	2000 kg	13000 mm	Triplex Full Free Lift	£165 a week	Ask about this
New2026 STILL FM-X 10New to order · Ref Z0001	1000 kg	4250 mm	Triplex Full Free Lift	£100 a week	Ask about this
New2026 STILL FM-X 20NNew to order · Ref Z0418	2000 kg	4080 mm	Triplex Full Free Lift	£175 a week	Ask about this
New2026 STILL FM-X 17New to order · Ref Z0384	1700 kg	6800 mm	Triplex Full Free Lift	£140 a week	Ask about this
New2026 STILL FM-X 20NNew to order · Ref Z0416	2000 kg	9800 mm	Triplex Full Free Lift	£175 a week	Ask about this
New2026 STILL FM-X 17New to order · Ref Z0383	1700 kg	11800 mm	Triplex Full Free Lift	£140 a week	Ask about this

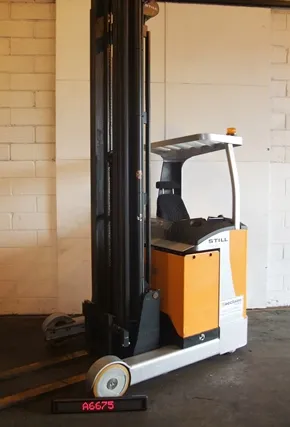

NewSTILL FMX 17New to order · Ref A6675	1700 kg	9050 mm	Triple	Call for a price	Ask about this
NewSTILL FMX 14New to order · Ref A10174	1400 kg	8600 mm	Triple	Call for a price	Ask about this

Buying a used FM-X

On a reach truck the lift height and the capacity at that height matter more than the year. Each used FM-X on this page lists its own lift height, closed height and battery, and the photo is of that truck. Match the lift height to your top beam and the closed height to your doorways, then ask us for the capacity plate reading at your working height. Every used machine comes with a current thorough examination.

Hire and lease

Reach trucks are available on hire and lease, from a day with a minimum charge of one week at the weekly rate. The rates on this page are ex VAT; ask us which models are available now.

See all hire stock

Servicing, inspection and training

Acclaim has sold and serviced STILL trucks since 1982 and is STILL’s exclusive dealer and distributor. Our own engineers service the FM-X from eight UK depots, whoever supplied it, and carry out LOLER thorough examinations. We run reach truck training at our centres and on customers’ sites.

Tell us the load, the lift height and the site, and we will say which FM-X fits, new, used or on hire.

Ask about the FM-X Or call 01708 861 414

Questions about the FM-X

Up to 13 metres, with a residual capacity of 1,000 kg at that height. A used truck's own lift height is on its listing.

They set the chassis and the truck's overall width: 1,140 mm for N, 1,470 mm for W and 1,670 mm for EW, against 1,270 mm for the standard chassis.

Yes. Some used trucks are listed without the hyphen.

Reach trucks are available on hire and lease, from a day with a minimum charge of one week; ask us which models are available now.

Yes, always. Every used machine is supplied with a current thorough examination as standard.

Yes, on used as well as new: lease purchase, contract hire, operating lease and outright purchase.

Need help? Speak to one of our experts

Send an enquiry

Stock reference	A8824
Condition	Used
Year of manufacture	2015
Machine type	Reach Truck
Power	Electric
Rated capacity	2,000 kg
Lift height	10,700 mm
Closed height	4,200 mm
Free lift	3,630 mm
Mast	Triple
Fork length	1,200 mm
Battery	48 V, 775 Ah

Stock reference	A10099
Condition	Used
Year of manufacture	2016
Machine type	Reach Truck
Power	Electric
Rated capacity	1,700 kg
Lift height	6,500 mm
Closed height	2,700 mm
Free lift	2,130 mm
Mast	Triple
Fork length	1,000 mm
Battery	48 V, 465 Ah

Stock reference	A9686
Condition	Used
Year of manufacture	2014
Machine type	Reach Truck
Power	Electric
Rated capacity	1,700 kg
Lift height	8,300 mm
Closed height	3,300 mm
Free lift	2,730 mm
Mast	Triple
Fork length	1,150 mm
Battery	48 V, 775 Ah

Stock reference	STR8448
Condition	Used
Year of manufacture	2011
Machine type	Reach Truck
Power	Electric
Rated capacity	1,700 kg
Lift height	6,860 mm
Closed height	2,800 mm
Free lift	2,430 mm
Mast	Triple
Fork length	1,000 mm
Battery	48 V, 465 Ah

Stock reference	A6403
Condition	Used
Year of manufacture	2008
Machine type	Reach Truck
Power	Electric
Lift height	8,100 mm
Closed height	3,320 mm
Free lift	2,500 mm
Mast	Triple
Fork length	1,000 mm
Sideshift	Yes
Battery	48 V, 620 Ah

Stock reference	A6404
Condition	Used
Year of manufacture	2008
Machine type	Reach Truck
Power	Electric
Rated capacity	1,700 kg
Lift height	8,100 mm
Closed height	3,320 mm
Free lift	2,500 mm
Mast	Triple
Fork length	1,200 mm
Sideshift	Yes
Battery	48 V, 620 Ah

Stock reference	A6137
Condition	Used
Year of manufacture	2008
Machine type	Reach Truck
Power	Electric
Rated capacity	1,400 kg
Lift height	8,790 mm
Closed height	3,450 mm
Free lift	3,050 mm
Mast	Triple
Fork length	1,150 mm
Battery	620 Ah

Stock reference	A10519
Condition	Used
Year of manufacture	2019
Machine type	Reach Truck
Power	Electric
Rated capacity	1,400 kg
Lift height	8,040 mm
Closed height	3,020 mm
Free lift	2,820 mm
Mast	Triple
Fork length	1,145 mm
Sideshift	Integral
Battery	48 V, 748 Ah

Stock reference	A8929
Condition	Used
Year of manufacture	2020
Machine type	Reach Truck
Power	Electric
Rated capacity	1,400 kg
Lift height	6,800 mm
Closed height	2,800 mm
Free lift	1,740 mm
Mast	Triple
Fork length	1,000 mm
Sideshift	Integral
Battery	48 V, 465 Ah

Stock reference	A8920
Condition	Used
Year of manufacture	2020
Machine type	Reach Truck
Power	Electric
Rated capacity	1,400 kg
Lift height	6,200 mm
Closed height	2,600 mm
Free lift	1,540 mm
Mast	Triple
Fork length	1,150 mm
Sideshift	Integral
Battery	48 V, 620 Ah

Stock reference	A10393
Condition	Used
Year of manufacture	2020
Machine type	Reach Truck
Power	Electric
Rated capacity	1,400 kg
Lift height	7,700 mm
Mast	Triple
Battery	48 V, 465 Ah

Stock reference	A9683
Condition	Used
Year of manufacture	2013
Machine type	Reach Truck
Power	Electric
Rated capacity	1,400 kg
Lift height	8,335 mm
Closed height	3,300 mm
Free lift	2,865 mm
Mast	Triple
Fork length	1,150 mm
Battery	48 V, 775 Ah

Stock reference	A8928
Condition	Used
Year of manufacture	2020
Machine type	Reach Truck
Power	Electric
Rated capacity	1,400 kg
Lift height	6,820 mm
Closed height	2,795 mm
Free lift	2,420 mm
Mast	Triple
Fork length	1,000 mm
Sideshift	Integral
Battery	48 V, 465 Ah

Stock reference	A8921
Condition	Used
Year of manufacture	2020
Machine type	Reach Truck
Power	Electric
Rated capacity	1,400 kg
Lift height	6,200 mm
Closed height	2,600 mm
Free lift	1,540 mm
Mast	Triple
Fork length	1,150 mm
Sideshift	Integral
Battery	48 V, 620 Ah

Stock reference	A6417
Condition	Used
Year of manufacture	2008
Machine type	Reach Truck
Power	Electric
Rated capacity	1,400 kg
Lift height	6,200 mm
Closed height	2,600 mm
Free lift	2,090 mm
Mast	Triple
Fork length	1,000 mm
Sideshift	Yes
Battery	48 V, 620 Ah

Stock reference	A6136
Condition	Used
Year of manufacture	2008
Machine type	Reach Truck
Power	Electric
Rated capacity	1,400 kg
Lift height	8,785 mm
Closed height	3,455 mm
Free lift	3,060 mm
Mast	Triple
Fork length	1,150 mm
Battery	48 V, 620 Ah

Stock reference	A10632
Condition	Used
Year of manufacture	2016
Machine type	Reach Truck
Power	Electric

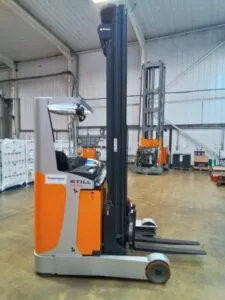

Stock reference	A10176
Condition	Used
Year of manufacture	2017
Machine type	Reach Truck
Power	Electric
Rated capacity	1,400 kg
Lift height	8,600 mm
Closed height	3,395 mm
Free lift	3,000 mm
Mast	Triple
Fork length	1,050 mm
Battery	48 V, 620 Ah

Stock reference	Z0415
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	2,200 kg
Lift height	13,000 mm
Closed height	5,350 mm
Free lift	4,728 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

Stock reference	Z0376
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	1,200 kg
Lift height	5,750 mm
Closed height	2,450 mm
Free lift	1,890 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

Stock reference	Z0380
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	1,400 kg
Lift height	4,250 mm
Closed height	1,950 mm
Free lift	1,390 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

Stock reference	Z0387
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	1,700 kg
Lift height	6,800 mm
Closed height	2,800 mm
Free lift	2,230 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

Stock reference	Z0378
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	1,400 kg
Lift height	9,800 mm
Closed height	3,800 mm
Free lift	3,240 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

Stock reference	Z0346
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	1,000 kg
Lift height	7,000 mm
Closed height	2,900 mm
Free lift	2,340 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

Stock reference	Z0419
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	2,500 kg
Lift height	12,050 mm
Closed height	4,650 mm
Free lift	4,028 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

STILL FM-X reach truck

The FM-X at a glance

How the FM-X models differ

Specifications

FM-X in stock now

New STILL FM-X built to order

Buying a used FM-X

Hire and lease

Servicing, inspection and training

Questions about the FM-X

How high can a STILL FM-X lift?

What do N, W and EW mean on an FM-X?

Is an FMX 14 the same as an FM-X 14?

Can I hire a reach truck?

Do used machines come with a current thorough examination?

Can I get finance on a used one?

Hire, servicing and training

Need help? Speak to one of our experts

Stock reference	Z0417
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	2,000 kg
Lift height	7,500 mm
Closed height	3,100 mm
Free lift	2,530 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

Stock reference	Z0385
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	1,700 kg
Lift height	4,250 mm
Closed height	1,950 mm
Free lift	1,380 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

Stock reference	Z0420
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	2,500 kg
Lift height	7,800 mm
Closed height	3,200 mm
Free lift	2,578 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

Stock reference	Z0394
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	2,000 kg
Lift height	7,500 mm
Closed height	3,100 mm
Free lift	2,530 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

Stock reference	Z0401
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	2,000 kg
Lift height	4,080 mm
Closed height	1,950 mm
Free lift	1,380 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

Stock reference	Z0375
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	1,200 kg
Lift height	7,000 mm
Closed height	2,900 mm
Free lift	2,340 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

Stock reference	Z0393
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	2,000 kg
Lift height	13,000 mm
Closed height	5,350 mm
Free lift	4,780 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

Stock reference	Z0001
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	1,000 kg
Lift height	4,250 mm
Closed height	1,950 mm
Free lift	1,390 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

Stock reference	Z0418
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	2,000 kg
Lift height	4,080 mm
Closed height	1,950 mm
Free lift	1,380 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm

Stock reference	Z0384
Condition	New, built to order
Machine type	Reach Truck
Power	Electric
Rated capacity	1,700 kg
Lift height	6,800 mm
Closed height	2,800 mm
Free lift	2,230 mm
Mast	Triplex Full Free Lift
Fork length	1,150 mm
