Hyundai ES pallet stackers: 10ES, 12ES, 15ES, 12ESN and 15ESR

Stacking pallets in stores, back rooms and small warehouses where a counterbalance forklift is more truck than the job needs. Hyundai's ES stackers, 1.0 to 1.5 tonnes.

Hyundai

The ES stackers at a glance

Hyundai’s ES stackers are 24-volt electric pallet stackers for 1,000 to 1,500 kg, from compact walk-behind trucks for short, occasional lifts to a stand-on model for heavy stacking over longer distances. They run on AC motors with a Curtis controller, and all of them slow down automatically once the forks rise above 1.8 metres.

Newspecifications listed to order
£45a week to hire, from (ex VAT)
1.0 - 1.5 trated capacity across the range

See what is new to order Ask about the ES stackers

New to order (21)

Specifications

Truck type	Electric pallet stacker: pedestrian (10ES, 12ES, 15ES, 12ESN) or stand-on platform (15ESR)
Models	10ES, 12ES, 15ES, 12ESN, 15ESR
Rated capacity	1,000 / 1,200 kg at 500 mm (10ES, 12ES, 12ESN); 1,500 kg (15ES); 1,500 kg at 600 mm (15ESR)
Battery	24 V: 120 Ah (10/12ES), 300 Ah (15ES, 15ESR), 80 Ah gel (12ESN)
Lift height	1,600 - 3,300 mm (10/12ES); 2,500 - 5,600 mm (15ES, 15ESR); 1,950 mm standard (12ESN)
Travel speed, laden / unladen	5.3 / 5.6 km/h (10/12ES); 6.0 / 8.5 km/h (15ESR)
Turning radius	1,525 mm (10/12ES); 1,338 mm (12ESN); 1,655 mm (15ESR)
Speed reduction	Automatic above 1.8 m lift

Specifications are for a new machine. Each used machine in stock is listed below with its own.

New to order

New Hyundai ES stackers built to order

New specifications ordered from the factory, built to the capacity, mast and options you choose. New machinery lead times are as low as 2-3 weeks.

New Hyundai ES stackers built to order
Machine	Capacity	Lift height	Mast	Hire or price	Ask
New2026 HYUNDAI 15ESRNew to order · Ref Z0553	1500 kg	5000 mm	Triplex Full Free Lift	£50 a week	Ask about this
New2026 HYUNDAI 15ESRNew to order · Ref Z0564	1500 kg	3000 mm	2-Stage Limited Free Lift	£50 a week	Ask about this
New2026 HYUNDAI 15ESNew to order · Ref Z0182	1500 kg	5600 mm	–	£50 a week	Ask about this
New2026 HYUNDAI 15ESNew to order · Ref Z0563	1500 kg	3000 mm	2-Stage Limited Free Lift	£50 a week	Ask about this
New2026 HYUNDAI 15ESRNew to order · Ref Z0556	1500 kg	4500 mm	Triplex Full Free Lift	£50 a week	Ask about this
New2026 HYUNDAI 15ESNew to order · Ref Z0558	1500 kg	3500 mm	2-Stage Limited Free Lift	£50 a week	Ask about this
New2026 HYUNDAI 15ESRNew to order · Ref Z0568	1500 kg	2500 mm	2-Stage Limited Free Lift	£50 a week	Ask about this
New2026 HYUNDAI 12ESNew to order · Ref Z0566	1200 kg	2500 mm	2-Stage Limited Free Lift	£45 a week	Ask about this
New2026 HYUNDAI 10ESNew to order · Ref Z0180	1000 kg	3300 mm	–	£45 a week	Ask about this
New2026 HYUNDAI 15ESRNew to order · Ref Z0561	1500 kg	3500 mm	2-Stage Full Free Lift	£50 a week	Ask about this
New2026 HYUNDAI 15ESNew to order · Ref Z0559	1500 kg	3500 mm	2-Stage Full Free Lift	£50 a week	Ask about this
New2026 HYUNDAI 15ESRNew to order · Ref Z0569	1500 kg	2500 mm	2-Stage Full Free Lift	£50 a week	Ask about this
New2026 HYUNDAI 15ESRNew to order · Ref Z0560	1500 kg	3500 mm	2-Stage Limited Free Lift	£50 a week	Ask about this
New2026 HYUNDAI 12ESNew to order · Ref Z0181	1200 kg	3300 mm	–	£45 a week	Ask about this
New2026 HYUNDAI 15ESNew to order · Ref Z0567	1500 kg	2500 mm	2-Stage Full Free Lift	£50 a week	Ask about this
New2026 HYUNDAI 15ESNew to order · Ref Z0555	1500 kg	4500 mm	Triplex Full Free Lift	£50 a week	Ask about this
New2026 HYUNDAI 15ESNew to order · Ref Z0552	1500 kg	5000 mm	Triplex Full Free Lift	£50 a week	Ask about this
New2026 HYUNDAI 15ESRNew to order · Ref Z0184	1500 kg	5600 mm	–	£50 a week	Ask about this
New2026 HYUNDAI 15ESRNew to order · Ref Z0562	1500 kg	3300 mm	2-Stage Limited Free Lift	£50 a week	Ask about this
New2026 HYUNDAI 12ESNNew to order · Ref Z0183	1200 kg	1950 mm	–	£45 a week	Ask about this
New2026 HYUNDAI 10ESNew to order · Ref Z0565	1000 kg	2500 mm	2-Stage Limited Free Lift	£45 a week	Ask about this

Five models

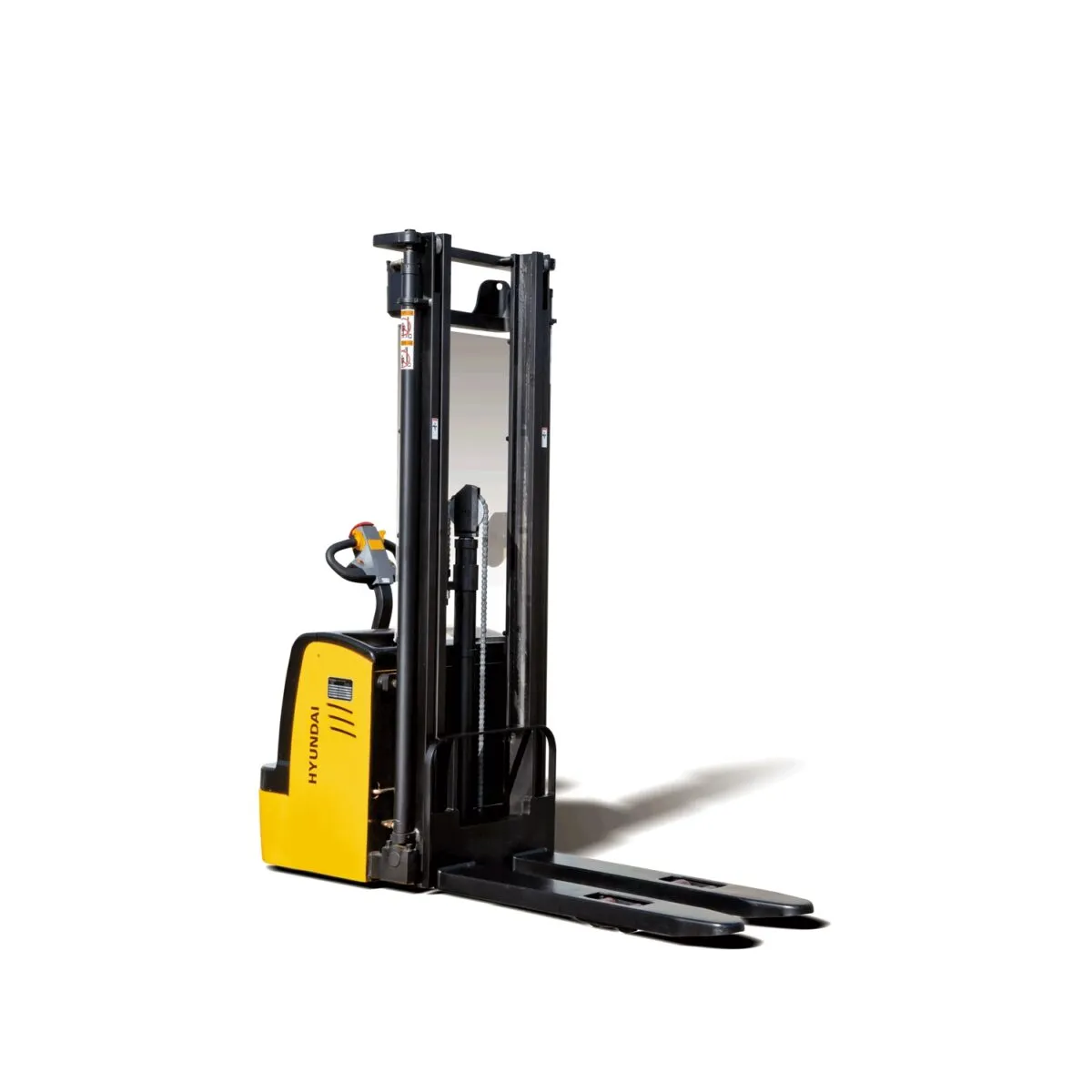

10ES and 12ES: 1,000 and 1,200 kg at a 500 mm load centre, pedestrian, for short shuttle runs, with lift heights from 1,600 to 3,300 mm.

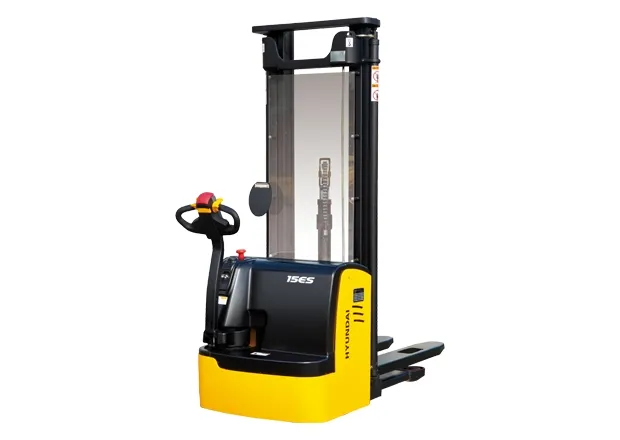

15ES: 1,500 kg, pedestrian, lifting from 2,500 mm up to 5,600 mm on a triplex mast.

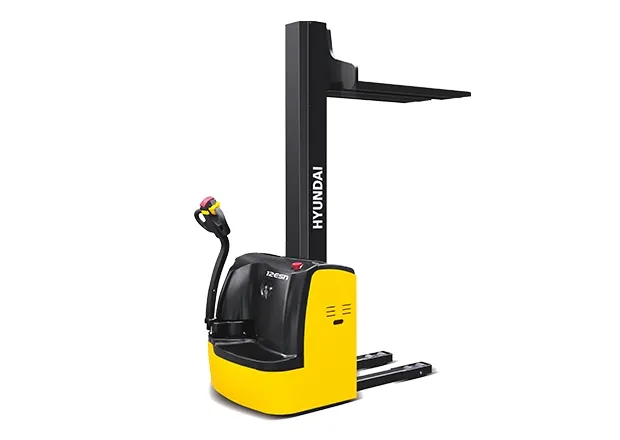

12ESN: 1,200 kg on a compact chassis with a maintenance-free gel battery, turning in 1,338 mm, for light work, occasional stacking and order picking.

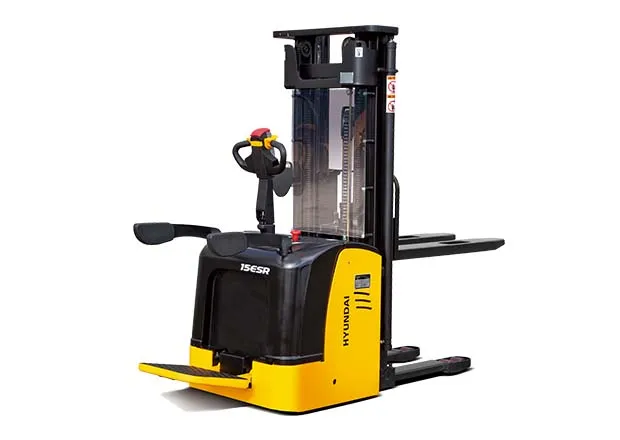

15ESR: 1,500 kg with a suspended stand-on platform and electric power steering, travelling at up to 8.5 km/h empty, for heavy stacking over runs of more than 500 metres.

What to look at on a used stacker

Check the hour meter and battery discharge indicator, and that lift cut-off works when the battery runs low. Every pivot point has a grease fitting, so look for signs they have been kept greased. The one-piece front cover comes off to reach the components, and the 15ES and 15ESR have side battery removal. Our engineers inspect each used ES stacker before it goes on sale.

Supply, hire and training

We sell the ES used. Hyundai’s current range is the ES-X, at 1.2, 1.6 and 2.0 tonnes (12ES-X, 16ES-X and 20ES-X), which we supply new to order as Hyundai’s exclusive dealer and distributor, and we service both. Pallet stackers are available on hire and lease; ask us which models are available now. We run pedestrian stacker training at our centres and on customers’ sites.

See all hire stock

Tell us the load, the lift height and the site, and we will say which ES stackers fits, new, used or on hire.

Ask about the ES stackers Or call 01708 861 414

Questions about the ES stackers

The 10ES or 12ES for short runs and light loads, the 15ES for heavier pallets and higher lifts, the 12ESN for tight spaces and occasional stacking, and the 15ESR when the operator rides over long distances.

From 2,500 mm up to 5,600 mm on the triplex mast.

Yes. It has a suspended stand-on platform and electric power steering, and travels at up to 8.5 km/h unladen.

Yes. Drive speed drops automatically once the forks rise above 1.8 metres.

Stackers can be taken on short hire or on a lease; ask us which models are free at the moment. We sell the ES used and supply the current ES-X range new to order.

Yes. We run pedestrian stacker training at our centres and on customers' sites.

Need help? Speak to one of our experts

Send an enquiry

Stock reference	Z0183
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,200 kg
Lift height	1,950 mm
Fork length	1,150 mm

Stock reference	Z0184
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	5,600 mm
Fork length	1,150 mm

Stock reference	Z0562
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	3,300 mm
Fork length	1,150 mm

Stock reference	Z0560
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	3,500 mm
Fork length	1,150 mm

Stock reference	Z0569
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	2,500 mm
Fork length	1,150 mm

Stock reference	Z0561
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	3,500 mm
Fork length	1,150 mm

Stock reference	Z0568
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	2,500 mm
Fork length	1,150 mm

Stock reference	Z0556
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	4,500 mm
Fork length	1,150 mm

Stock reference	Z0564
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	3,000 mm
Fork length	1,150 mm

Stock reference	Z0553
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	5,000 mm
Fork length	1,150 mm

Stock reference	Z0565
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,000 kg
Lift height	2,500 mm
Fork length	1,150 mm

Stock reference	Z0555
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	4,500 mm
Fork length	1,150 mm

Stock reference	Z0552
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	5,000 mm
Fork length	1,150 mm

Stock reference	Z0181
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,200 kg
Lift height	3,300 mm
Fork length	1,150 mm

Stock reference	Z0567
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	2,500 mm
Fork length	1,150 mm

Stock reference	Z0559
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	3,500 mm
Fork length	1,150 mm

Stock reference	Z0566
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,200 kg
Lift height	2,500 mm
Fork length	1,150 mm

Stock reference	Z0180
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,000 kg
Lift height	3,300 mm
Fork length	1,150 mm

Stock reference	Z0558
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	3,500 mm
Fork length	1,150 mm

Stock reference	Z0182
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	5,600 mm
Fork length	1,150 mm

Stock reference	Z0563
Condition	New, built to order
Machine type	Powered Pallet Trucks
Power	Electric
Rated capacity	1,500 kg
Lift height	3,000 mm
Fork length	1,150 mm
