Hyundai heavy diesel forklifts, 11 to 25 tonnes: 110D-9 to 250D-9
Ports, steel, timber, concrete and container handling, where 11 to 25 tonne loads are moved all day in hard conditions. Hyundai's heavy diesels, 11 to 25 tonnes.
Hyundai
The Heavy D-9 at a glance
Hyundai’s heavy diesel forklifts carry 11 to 25 tonnes, for ports and industrial sites with high duty cycles and hard operating conditions. Every model drives through a ZF full-automatic powershift transmission with two selectable automatic modes and runs on large pneumatic tyres, and the 110D-9 to 160D-9 and the 250D-9 stop on wet disc brakes.
- Newspecifications listed to order
- £450a week to hire, from (ex VAT)
- 11 - 25 trated capacity across the range
Specifications
| Truck type | Heavy diesel counterbalance forklift, pneumatic tyres |
|---|---|
| Models | 110D-9, 130D-9, 160D-9, 160D-9L, 250D-9 |
| Rated capacity | 11,000 / 13,000 / 16,000 kg at 600 mm; 16,000 kg at 1,200 mm (160D-9L); 25,000 kg at 1,200 mm (250D-9) |
| Engine | Cummins QSB6.7, 122 kW (110D-9 to 160D-9L); Cummins QSL, 204 kW (250D-9) |
| Transmission | ZF full-automatic powershift |
| Brakes | Wet disc (110D-9 to 160D-9, 250D-9) |
| Maximum lift height | 7,525 mm (110 / 130D-9); 7,515 mm (160D-9); 7,034 mm (160D-9L); 7,030 mm (250D-9) |
| Travel speed, unladen | 35.2 - 35.6 km/h (110D-9 to 160D-9L); 31.5 km/h (250D-9) |
| Turning radius | 4,350 mm (110 / 130D-9); 5,220 mm (160D-9L); 5,864 mm (250D-9) |
Specifications are for a new machine. Each used machine in stock is listed below with its own.
In stock
Heavy D-9 in stock now
New specifications to order. Each used machine is one specific truck with its own year, mast and battery; open one for its photos and full specification.
Compare the new specifications side by side
These are the configurations listed for order or hire new. They differ by capacity, mast and lift height; the full build is confirmed at quotation.
| Machine | Year | Capacity | Lift height | Mast | Power | Hire from |
|---|---|---|---|---|---|---|
| New 110D-9 Z0286 | New | 11,000 kg | 2,805 mm | 2-Stage Limited Free Lift | Diesel | £450/wk |
| New 110D-9 Z0265 | New | 11,000 kg | 4,528 mm | 2-Stage Full Free Lift | Diesel | £450/wk |
| New 110D-9 Z0160 | New | 11,000 kg | 7,525 mm | Triplex Full Free Lift | Diesel | £450/wk |
| New 130D-9 Z0287 | New | 13,000 kg | 2,805 mm | 2-Stage Limited Free Lift | Diesel | £450/wk |
| New 130D-9 Z0266 | New | 13,000 kg | 4,528 mm | 2-Stage Full Free Lift | Diesel | £450/wk |
| New 130D-9 Z0161 | New | 13,000 kg | 7,525 mm | Triplex Full Free Lift | Diesel | £450/wk |
| New 160D-9 Z0282 | New | 16,000 kg | 2,950 mm | 2-Stage Limited Free Lift | Diesel | £750/wk |
| New 160D-9L Z0281 | New | 16,000 kg | 3,200 mm | 2-Stage Limited Free Lift | Diesel | £750/wk |
| New 160D-9L Z0163 | New | 16,000 kg | 3,750 mm | Triplex Full Free Lift | Diesel | £750/wk |
| New 160D-9 Z0261 | New | 16,000 kg | 4,510 mm | 2-Stage Full Free Lift | Diesel | £750/wk |
| New 160D-9 Z0162 | New | 16,000 kg | 7,515 mm | Triplex Full Free Lift | Diesel | £750/wk |
| New 250D-9 Z0164 | New | 25,000 kg | 7,030 mm | 2-Stage Limited Free Lift | Diesel | £950/wk |
The models

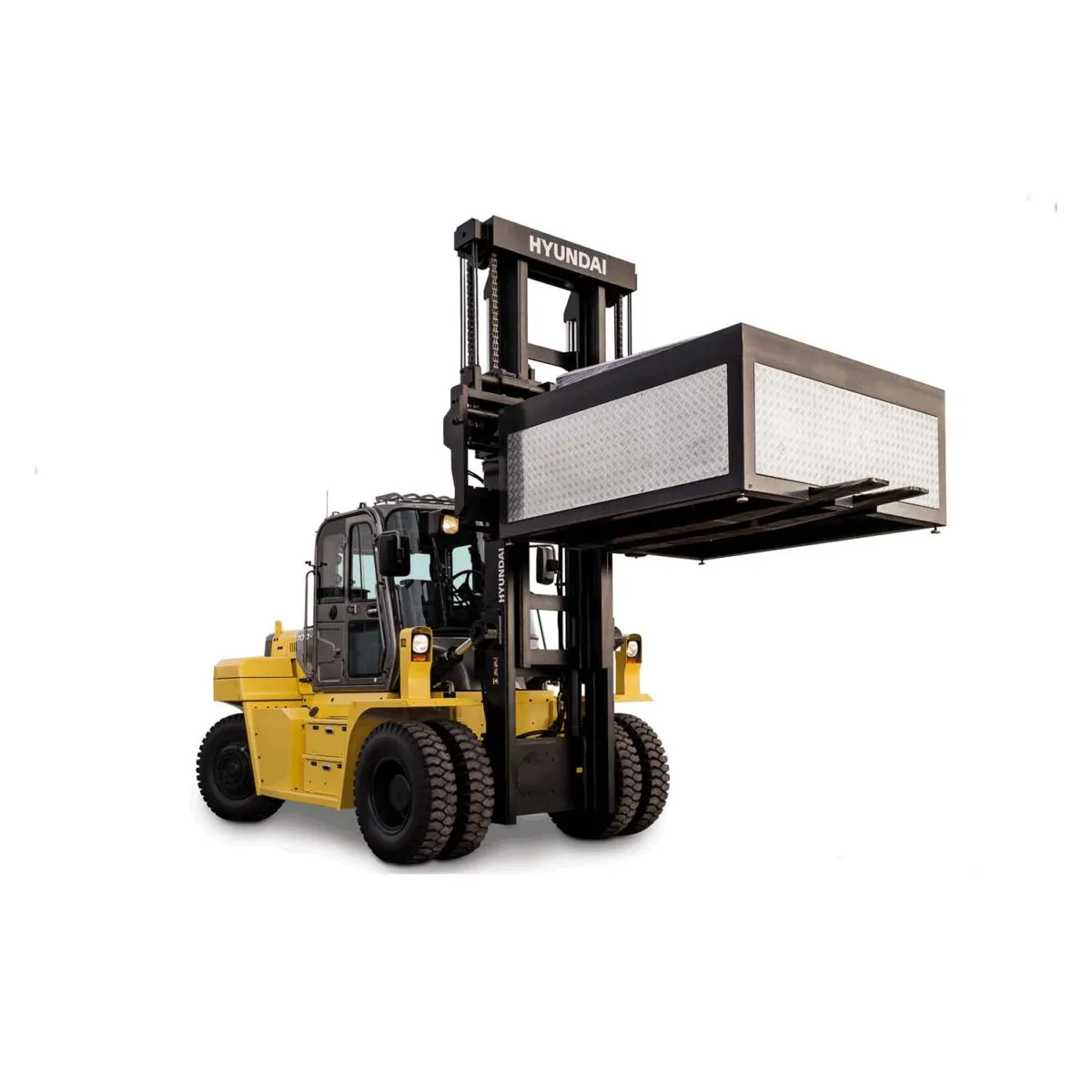

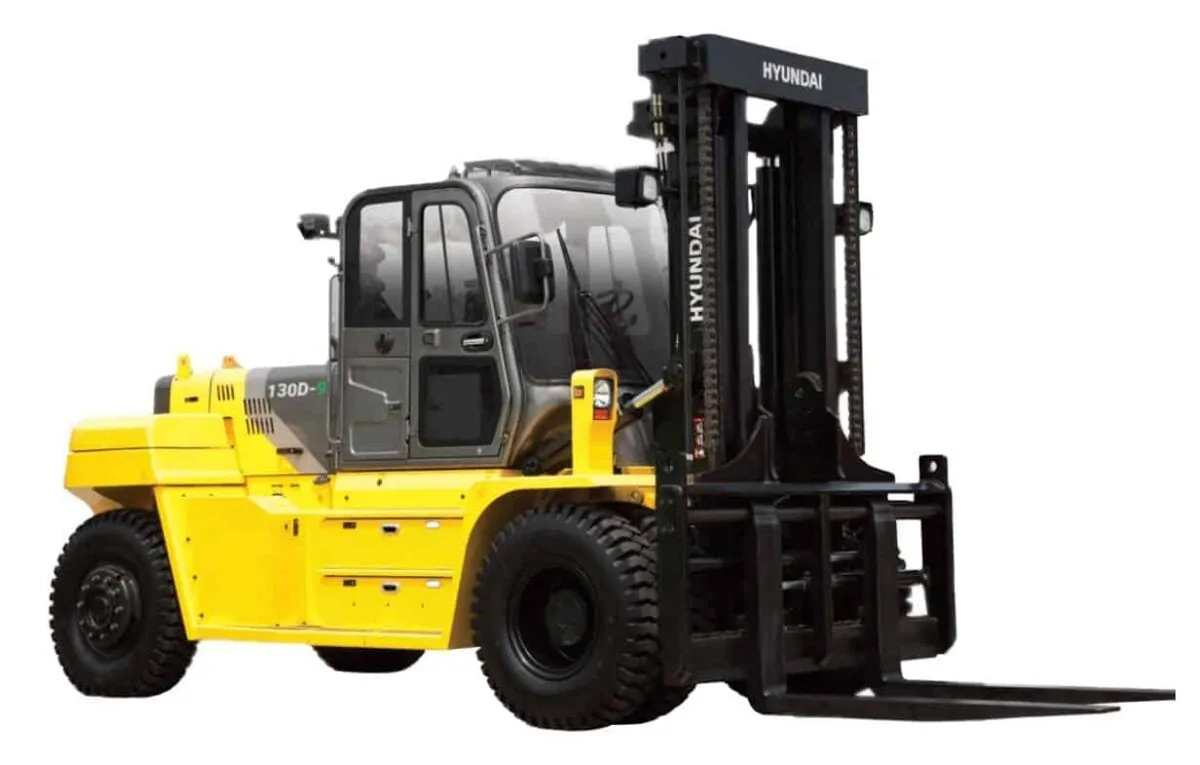

- 110D-9, 130D-9 and 160D-9: 11,000, 13,000 and 16,000 kg at a 600 mm load centre, with a 6.7 litre Cummins engine of 122 kW, lifting 3 metres as standard and to 7,525 mm (7,515 mm on the 160D-9).

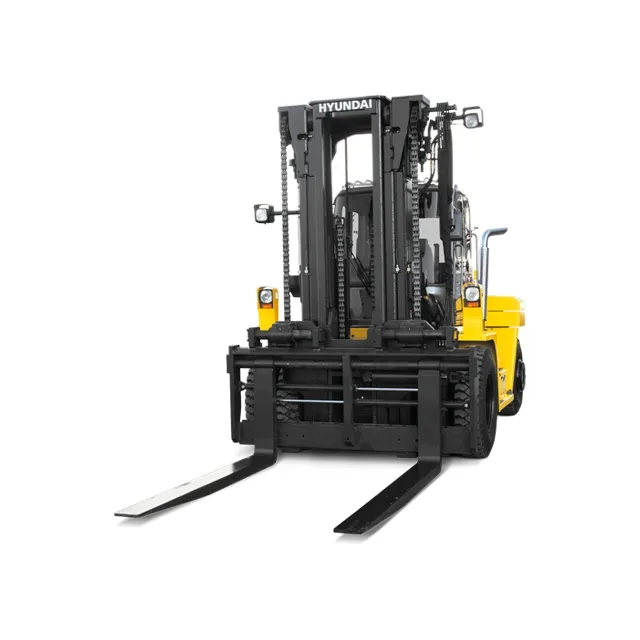

- 160D-9L: the long-load version, 16,000 kg at a 1,200 mm load centre, for timber, lumber, containers, concrete and steel products, lifting to 7,034 mm.

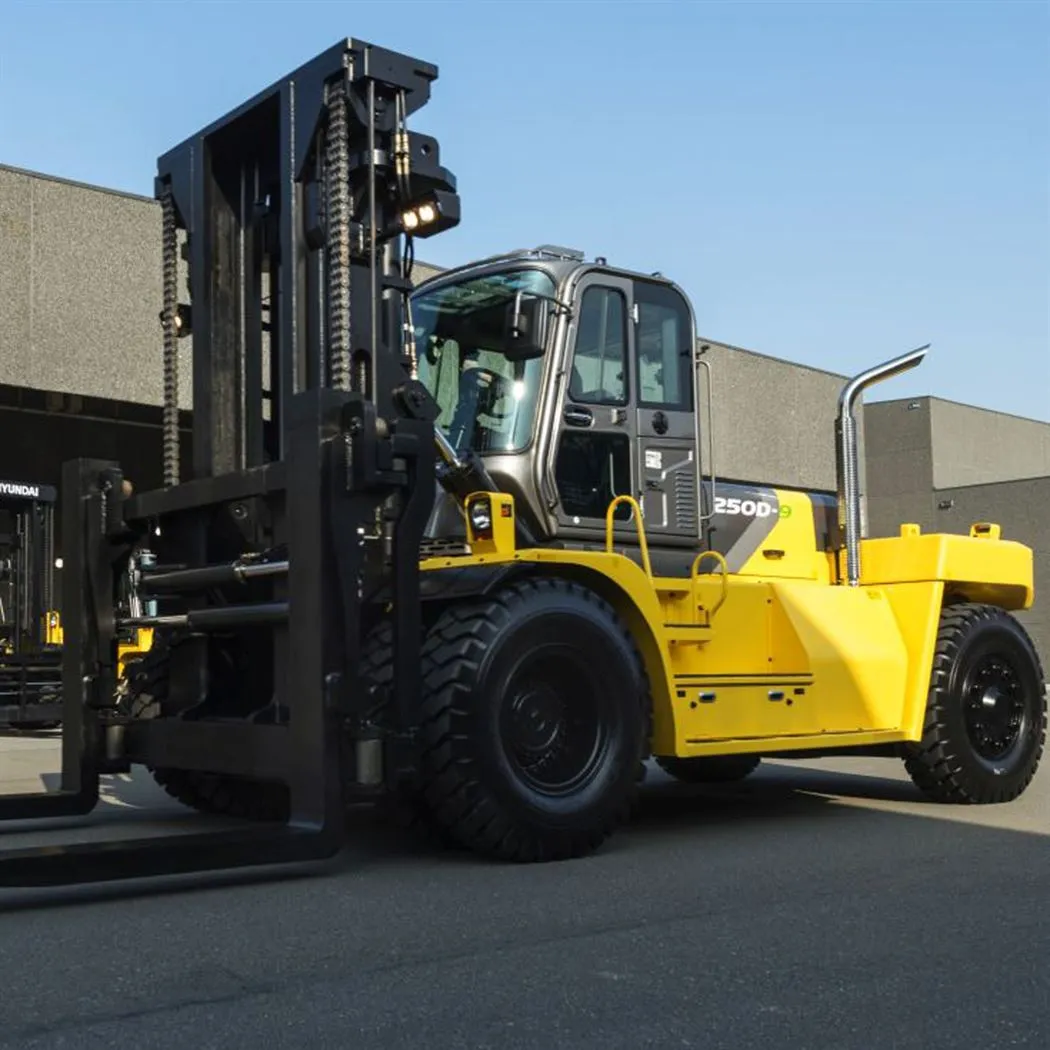

- 250D-9: 25,000 kg at 1,200 mm for aluminium, steel, block and container handling, with an 8.9 litre Cummins of 204 kW and a standard lift of 4,030 mm.
An engine mode switch chooses between a fuel-saving standard mode and a power mode for heavy work or slopes. The D-9V heavy range that followed meets Stage V, adding a particulate filter to the oxidation catalyst and SCR.
Checking a used heavy truck
The display carries the hour meter, a urea level gauge, an engine check lamp, transmission information and a transmission oil temperature gauge, with a maintenance management screen. The cab tilts to about 65 degrees on the 110D-9 to 160D-9 and the 250D-9, and about 53 degrees on the 160D-9L, which makes the drive line easy to inspect. A master switch isolates the battery. Our engineers inspect every used heavy truck before it goes on sale.
Supply, hire and training
We sell the heavy D-9 used. Its successor, the D-9V heavy range from the 100D-9V at 10 tonnes to the 300D-9VC at 30 tonnes, we supply new to order as Hyundai’s exclusive dealer and distributor, and we look after both in service. Heavy forklifts are available on hire and lease; ask us which models are available now. We run counterbalance forklift training at our centres and on customers’ sites.
Tell us the load, the lift height and the site, and we will say which Heavy D-9 fits, new, used or on hire.
