Picking single items and cartons from racking up to about 6 metres, where the operator rides up with the load instead of climbing. STILL's EK-X vertical order pickers.
STILL

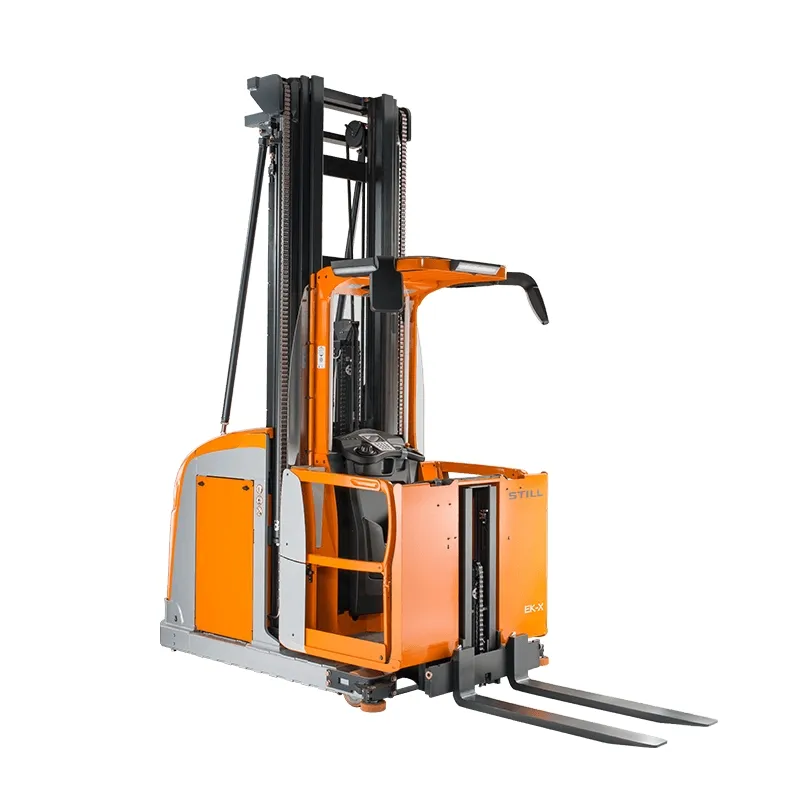

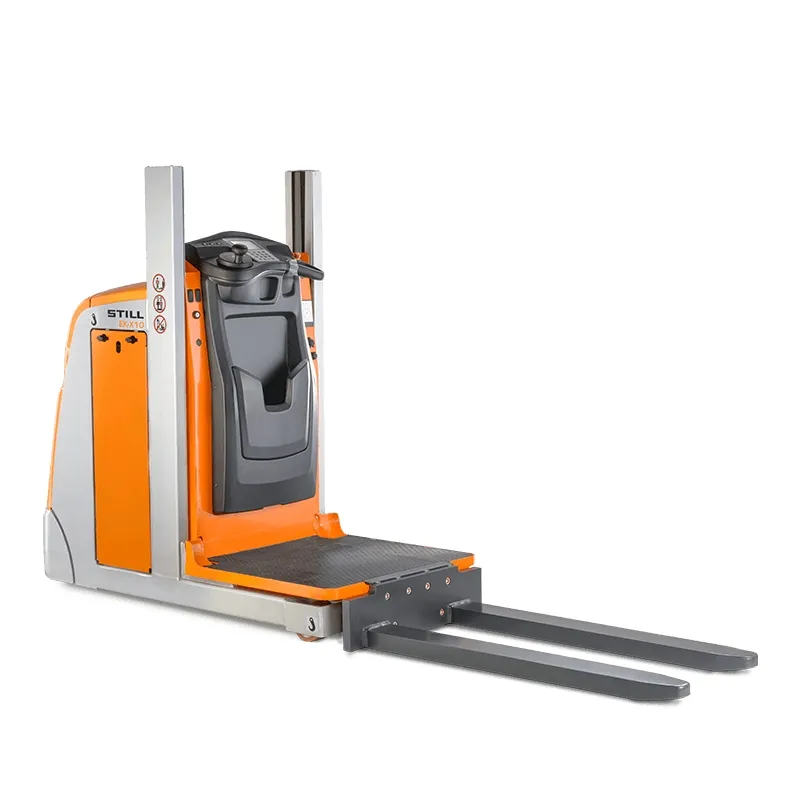

The EK-X is STILL’s vertical order picker: the operator stands in a cab that lifts with the forks, so picking at height happens at the shelf rather than from a ladder. The EK-X 10 carries 1,000 kg and works in both wide and narrow-aisle warehouses, with a reach height of up to 6,350 mm.
Specification
The EK-X 10 is a 24-volt truck, with 420 Ah or 560 Ah lead-acid batteries or lithium-ion.
| Truck type | Electric vertical order picker, standing operator in a lifting cab |
|---|---|
| Models | EK-X 10; earlier EK-X |
| Rated capacity | 1,000 kg (EK-X 10); 1,200 kg (earlier EK-X) |
| Reach height | 2,800 / 3,710 / 6,350 mm (EK-X 10: single, single with additional lift, telescopic) |
| Battery | 24 V, 420 or 560 Ah lead-acid; lithium-ion option (EK-X 10) |
| Travel speed | 9 km/h (single mast); 10 km/h (other versions) |
| Width | 790 mm (single mast without additional lift); 980 mm (other versions) |
Specifications are for a new machine. Each used machine in stock is listed below with its own.
In stock
Actual machines in our yard, used and new, each with its own photos and specification. Open one for the details.
| Machine | Lift height | Mast | Hire or price | Ask |
|---|---|---|---|---|
 STILL EK-X 10 | 1,800 mm | – | Call for a price | Ask about this |
 STILL EK-X 10 | 1,800 mm | – | Call for a price | Ask about this |
 STILL EK-X 10 | 1,800 mm | – | Call for a price | Ask about this |
 STILL EK-X | – | Triple | Call for a price | Ask about this |
New to order
New specifications ordered from the factory, built to the capacity, mast and options you choose. New machinery lead times are as low as 2-3 weeks.
| Machine | Capacity | Lift height | Mast | Hire or price | Ask |
|---|---|---|---|---|---|
 New2026 STILL EK-X 10 | 1000 kg | 965 mm | Single Mast with Auxillary Lift | £125 a week | Ask about this |
 New2026 STILL EK-X 10 | 1000 kg | 1700 mm | Single Mast with Auxillary Lift | £125 a week | Ask about this |
 New2026 STILL EK-X | 1000 kg | 1910 mm | Single Mast with Auxillary Lift | £125 a week | Ask about this |
| New2026 STILL EK-X 10 | 1000 kg | 965 mm | Simplex Limited Free Lift | £125 a week | Ask about this |
 New2026 STILL EK-X | 1000 kg | 4550 mm | 2-Stage Limited Free Lift | £125 a week | Ask about this |
 New2026 STILL EK-X 10 | 1000 kg | 1700 mm | Single Mast with Auxillary Lift | £125 a week | Ask about this |
 New2026 STILL EK-X | 1000 kg | 1000 mm | Single Mast with Auxillary Lift | £125 a week | Ask about this |
The earlier, taller EK-X carried 1,200 kg to a reach height of up to 12 metres on 24 or 48 volts. For greater heights, STILL’s PXV covers the range; ask us about it.
Forged forks must show no more than 10% wear, and the main lift chains no more than 2%. Check that the steering reaches about 90 degrees each way, the levers return to neutral, and the barriers and emergency-off stop driving and hydraulics once the platform is above 1.2 metres. Look for cracks at the welds of the overhead guard. Our engineers inspect every used EK-X before sale.
As STILL’s exclusive dealer and distributor we supply the EK-X 10 new, in the mast version your racking needs. Order pickers are available on hire and lease; ask us which models are available now. We run order picker training at our centres and on customers’ sites.
Tell us the load, the lift height and the site, and we will say which EK-X fits, new, used or on hire.

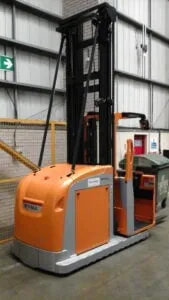

STILL EK-X
This 2018 STILL EK-X is a used order picker. It has a triple mast, a closed height of 3,900 mm, 2,950 mm of free lift and 1,000 mm forks. It is electric, running on an 840 Ah battery. It is supplied with a current thorough examination certificate.
| Stock reference | A9692 |
|---|---|
| Condition | Used |
| Year of manufacture | 2018 |
| Machine type | Order Pickers & VNA Equipment |
| Power | Electric |
| Closed height | 3,900 mm |
| Free lift | 2,950 mm |
| Mast | Triple |
| Fork length | 1,000 mm |
| Battery | 840 Ah |

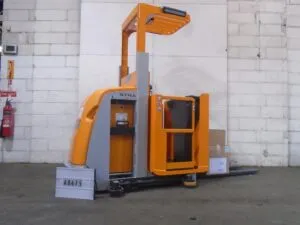

STILL EK-X 10
This 2019 STILL EK-X 10 is a used order picker. It lifts to 1,800 mm. It has a closed height of 2,270 mm and 810 mm of free lift. It is electric, running on a 24 V, 465 Ah battery. It is supplied with a current thorough examination certificate.
| Stock reference | A8675 |
|---|---|
| Condition | Used |
| Year of manufacture | 2019 |
| Machine type | Order Pickers & VNA Equipment |
| Power | Electric |
| Lift height | 1,800 mm |
| Closed height | 2,270 mm |
| Free lift | 810 mm |
| Battery | 24 V, 465 Ah |
STILL EK-X 10
This 2019 STILL EK-X 10 is a used order picker. It lifts to 1,800 mm. It has a closed height of 2,250 mm and 810 mm of free lift. It is electric, running on a 24 V, 465 Ah battery. It is supplied with a current thorough examination certificate.
| Stock reference | A8672 |
|---|---|
| Condition | Used |
| Year of manufacture | 2019 |
| Machine type | Order Pickers & VNA Equipment |
| Power | Electric |
| Lift height | 1,800 mm |
| Closed height | 2,250 mm |
| Free lift | 810 mm |
| Battery | 24 V, 465 Ah |

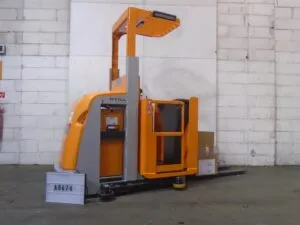

STILL EK-X 10
This 2019 STILL EK-X 10 is a used order picker. It lifts to 1,800 mm. It has a closed height of 2,250 mm and 810 mm of free lift. It is electric, running on a 24 V, 465 Ah battery. It is supplied with a current thorough examination certificate.
| Stock reference | A8674 |
|---|---|
| Condition | Used |
| Year of manufacture | 2019 |
| Machine type | Order Pickers & VNA Equipment |
| Power | Electric |
| Lift height | 1,800 mm |
| Closed height | 2,250 mm |
| Free lift | 810 mm |
| Battery | 24 V, 465 Ah |
2026 STILL EK-X
This new STILL EK-X is an order picker, built to order in this specification. It is rated for 1,000 kg and lifts to 1,000 mm. It has a single mast with auxillary lift mast and 800 mm forks. It is electric.
| Stock reference | Z0078 |
|---|---|
| Condition | New, built to order |
| Machine type | Order Pickers & VNA Equipment |
| Power | Electric |
| Rated capacity | 1,000 kg |
| Lift height | 1,000 mm |
| Mast | Single Mast with Auxillary Lift |
| Fork length | 800 mm |
2026 STILL EK-X
This new STILL EK-X is an order picker, built to order in this specification. It is rated for 1,000 kg and lifts to 4,550 mm. It has a 2-stage limited free lift mast and 800 mm forks. It is electric.
| Stock reference | Z0268 |
|---|---|
| Condition | New, built to order |
| Machine type | Order Pickers & VNA Equipment |
| Power | Electric |
| Rated capacity | 1,000 kg |
| Lift height | 4,550 mm |
| Mast | 2-Stage Limited Free Lift |
| Fork length | 800 mm |
2026 STILL EK-X 10
This new STILL EK-X 10 is an order picker, built to order in this specification. It is rated for 1,000 kg and lifts to 1,700 mm. It has a single mast with auxillary lift mast and 1,200 mm forks. It is electric.
| Stock reference | Z0271 |
|---|---|
| Condition | New, built to order |
| Machine type | Order Pickers & VNA Equipment |
| Power | Electric |
| Rated capacity | 1,000 kg |
| Lift height | 1,700 mm |
| Mast | Single Mast with Auxillary Lift |
| Fork length | 1,200 mm |
2026 STILL EK-X 10
This new STILL EK-X 10 is an order picker, built to order in this specification. It is rated for 1,000 kg and lifts to 965 mm. It has a simplex limited free lift mast and 1,200 mm forks. It is electric.
| Stock reference | Z0079 |
|---|---|
| Condition | New, built to order |
| Machine type | Order Pickers & VNA Equipment |
| Power | Electric |
| Rated capacity | 1,000 kg |
| Lift height | 965 mm |
| Mast | Simplex Limited Free Lift |
| Fork length | 1,200 mm |
2026 STILL EK-X 10
This new STILL EK-X 10 is an order picker, built to order in this specification. It is rated for 1,000 kg and lifts to 1,700 mm. It has a single mast with auxillary lift mast and 1,200 mm forks. It is electric.
| Stock reference | Z0270 |
|---|---|
| Condition | New, built to order |
| Machine type | Order Pickers & VNA Equipment |
| Power | Electric |
| Rated capacity | 1,000 kg |
| Lift height | 1,700 mm |
| Mast | Single Mast with Auxillary Lift |
| Fork length | 1,200 mm |
2026 STILL EK-X
This new STILL EK-X is an order picker, built to order in this specification. It is rated for 1,000 kg and lifts to 1,910 mm. It has a single mast with auxillary lift mast and 800 mm forks. It is electric.
| Stock reference | Z0269 |
|---|---|
| Condition | New, built to order |
| Machine type | Order Pickers & VNA Equipment |
| Power | Electric |
| Rated capacity | 1,000 kg |
| Lift height | 1,910 mm |
| Mast | Single Mast with Auxillary Lift |
| Fork length | 800 mm |
2026 STILL EK-X 10
This new STILL EK-X 10 is an order picker, built to order in this specification. It is rated for 1,000 kg and lifts to 965 mm. It has a single mast with auxillary lift mast and 1,200 mm forks. It is electric.
| Stock reference | Z0272 |
|---|---|
| Condition | New, built to order |
| Machine type | Order Pickers & VNA Equipment |
| Power | Electric |
| Rated capacity | 1,000 kg |
| Lift height | 965 mm |
| Mast | Single Mast with Auxillary Lift |
| Fork length | 1,200 mm |
